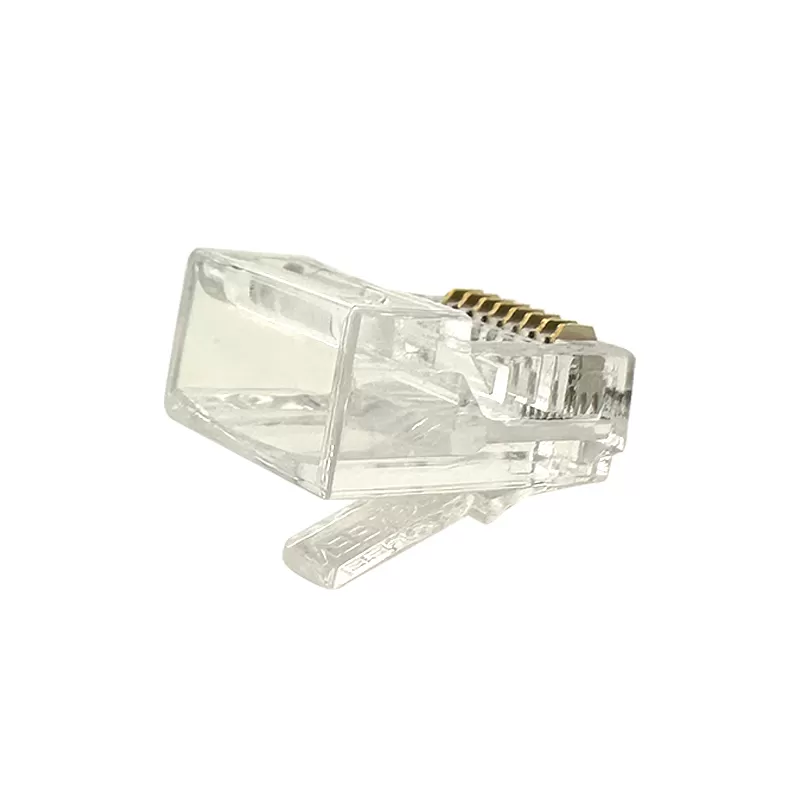

RJ45 Modular Plug:RHTLYJ45-8P

Series P/N: RHTLYJ45-8P

RHT provides a wide selection of Modular Plugs, supporting reliable network and data connections for computers, routers, network switches, communication equipment, and industrial devices.

With various plug configurations, contact arrangements, cable compatibility options, structural designs, and specifications, our products meet different cable connection requirements, interface standards, and equipment integration needs.

RHT works closely with engineering teams to understand technical requirements and provide suitable Modular Plug solutions, supporting applications from sample evaluation and design verification to product integration.

2D(PDF)Drawing

3D(IGS / STP)Drawing

Product parameter:

Features

-Connector Type: RJ45, which is the standard connector used for Ethernet cables.

-Configuration: 8P8C (8 Position 8 Conductor), meaning it supports eight wires (four twisted pairs) for Ethernet connectivity. This configuration is compatible with Cat5, Cat5e, Cat6, Cat6a, and Cat7 Ethernet cables.

-Compatibility: Designed to fit into standard RJ45 jacks and ports found on networking devices such as switches, routers, network interface cards (NICs), and patch panels.

-Termination: Typically terminated using crimping tools and techniques to securely attach the conductors (wires) to the metal contacts inside the plug. This ensures stable electrical connections necessary for data transmission.

Applications

1.Industrial Ethernet

2.Networking Equipment

3.Structured Cabling Systems

4.Telecommunications and Data Centers

Specifications

RJ45 Modular Plug

MATERIAL

1.Housing :Polycarbonate(pc) UL 94V-0 or UL 94V-2

2.Contact :Phosphor Bronze, Hard Gold plated over nickel

3.Shielding:0.25mm Thickness Copper Alloy With Tin plated

4.Gold plating:3u inch,6u inch,15u inch,30u inch,50u inch
