RHT provides a wide selection of Modular Jacks, supporting reliable network and data connections for computers, routers, network switches, communication equipment, and industrial devices.
With various port configurations, contact arrangements, mounting styles, and structural designs, our products meet different PCB layouts, interface requirements, and equipment integration needs.
RHT works closely with engineering teams to understand technical requirements and provide suitable Modular Jack solutions, supporting applications from sample evaluation and design verification to product integration.
Features
-10-Contact Points: The "10C" indicates that the jack has 10 contact points for connecting wires, which typically support more complex wiring systems, such as those used in certain networking applications.

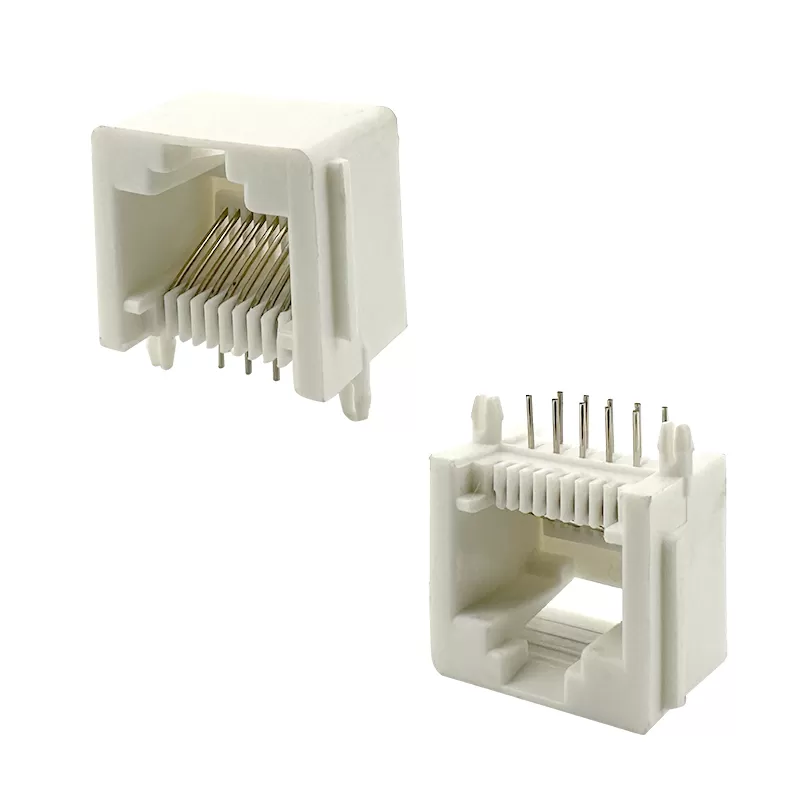

-Modular Design: Like other RJ connectors, the RJ50-10P10C jack is modular, meaning it can be plugged and unplugged easily, making it a flexible solution for many networking setups.
-Used in High-Speed Data Transmission: The 10 contacts are designed to support high-speed data transmission, which can be important for applications that require more data channels, such as some industrial or specialized networking systems.
-Compatibility: This jack is often compatible with other networking equipment such as patch panels, switches, routers, and other telecommunication hardware, particularly in systems that need a 10-pin connection for more advanced or specialized tasks.
Applications
1.Industrial Networking Systems
2.Multi-Line Telephone Systems
3.Data Transmission and Communication
4.Networking in Telecommunications
Specifications
Material:
Housing: PBT+Glass Filled Polyester
Flammability Rating : UL94V-0
Contacts: Phosphor Bronze ∅0.46mm
Plating: Gold Plating
Electrical:
Voltage Rating: 125VAC
Current Rating: 1.5A
Contact Resistance: 30mΩ Max.
Insulation Resistance: 500MΩ Min.
Dielectric Strength: 1000VAC Rms 50Hz,1 Min.
Durability: 600 cycles Min.
Operation Temperatur
Technical Documents
Please contact us for more information.
