RHT provides a wide selection of Modular Jacks, supporting reliable network and data connections for computers, routers, network switches, communication equipment, and industrial devices.
With various port configurations, contact arrangements, mounting styles, and structural designs, our products meet different PCB layouts, interface requirements, and equipment integration needs.
RHT works closely with engineering teams to understand technical requirements and provide suitable Modular Jack solutions, supporting applications from sample evaluation and design verification to product integration.
Features

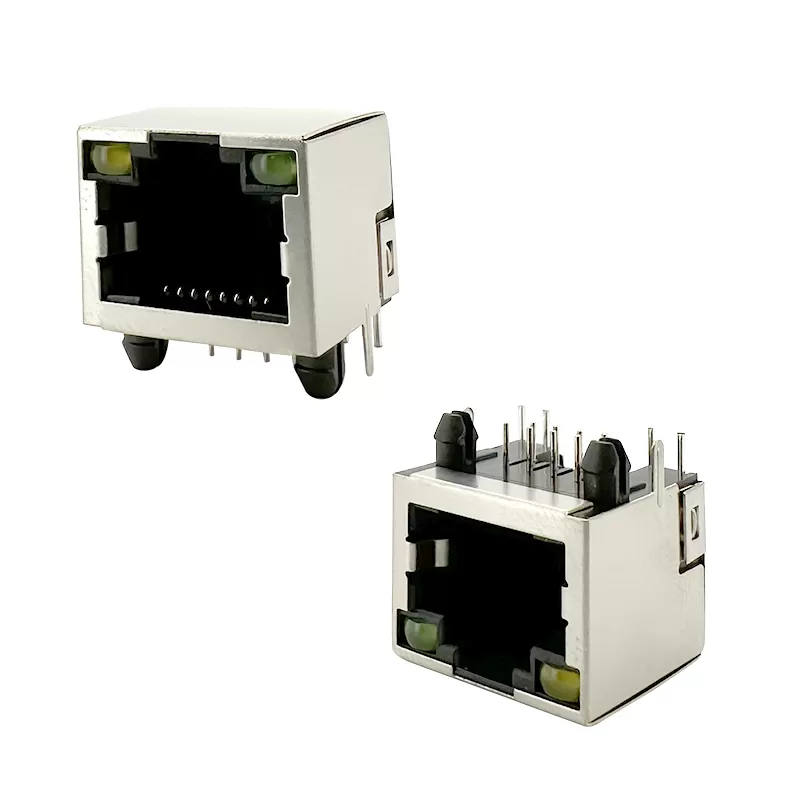

-Connector Type: RJ45-8P8C refers to Registered Jack 45 with 8 positions and 8 contacts, accommodating Ethernet cables with eight conductors (8P8C) arranged in four pairs.
-Enhanced Visibility: LED indicators enhance network visibility and troubleshooting by providing instant visual feedback on connection status, helping network administrators quickly identify network issues or performance problems.
-Compatibility: Compatible with standard RJ45 plugs and Ethernet cables, ensuring interoperability with Cat5, Cat6, and Cat6a cables and supporting various network speeds and protocols.
-Construction: Made from durable materials such as plastic and metal components, designed to withstand mechanical stress, frequent plugging and unplugging, and environmental factors.
Applications
1.Telecommunications and VoIP Systems
2.Security and Surveillance Systems
3.Residential Networking
4.Educational and Training Environments
Specifications
Material:
Housing: PBT+Glass Filled Polyester
Flammability Rating : UL94V-0
Contacts: Phosphor Bronze ∅0.46mm
Plating: Gold Plating
Shield: Brass,Tin Plating
Electrical:
Voltage Rating: 125VAC
Current Rating: 1.5A
Contact Resistance: 30mΩ Max.
Insulation Resistance: 500MΩ Min.
Dielectric Strength: 1000VAC Rms 50Hz,1 Min.
Durability: 600 cycles Min.
Operation Temperature:-40°C~+70°C
Technical Documents
Please contact us for more information.
