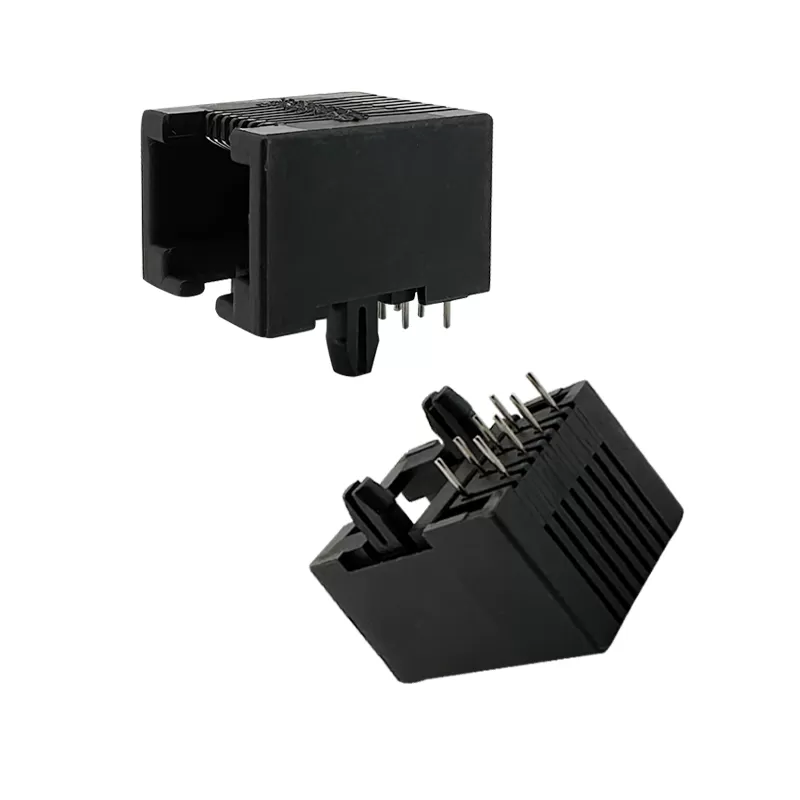

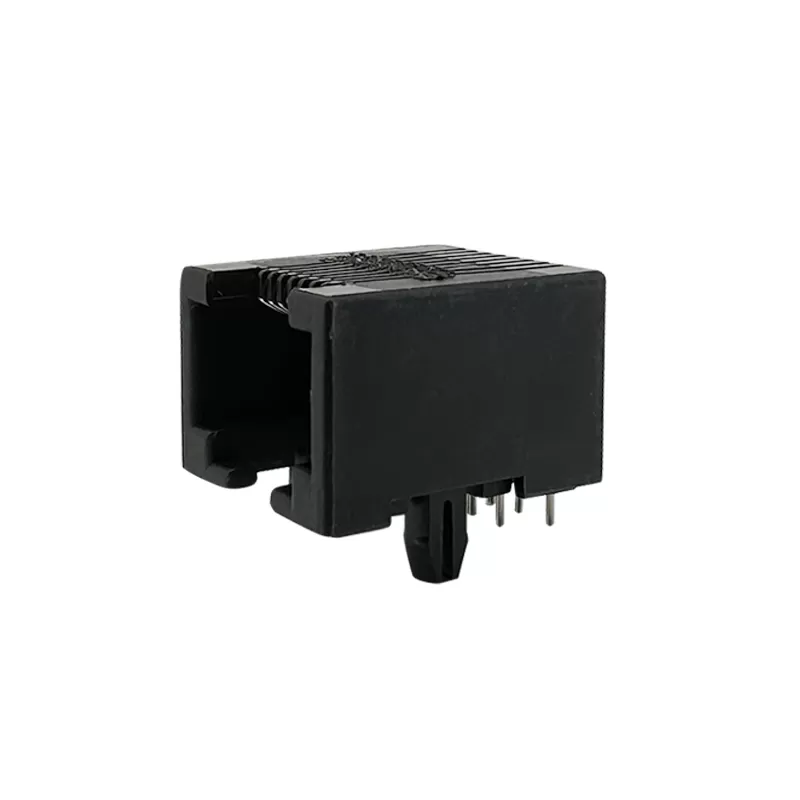

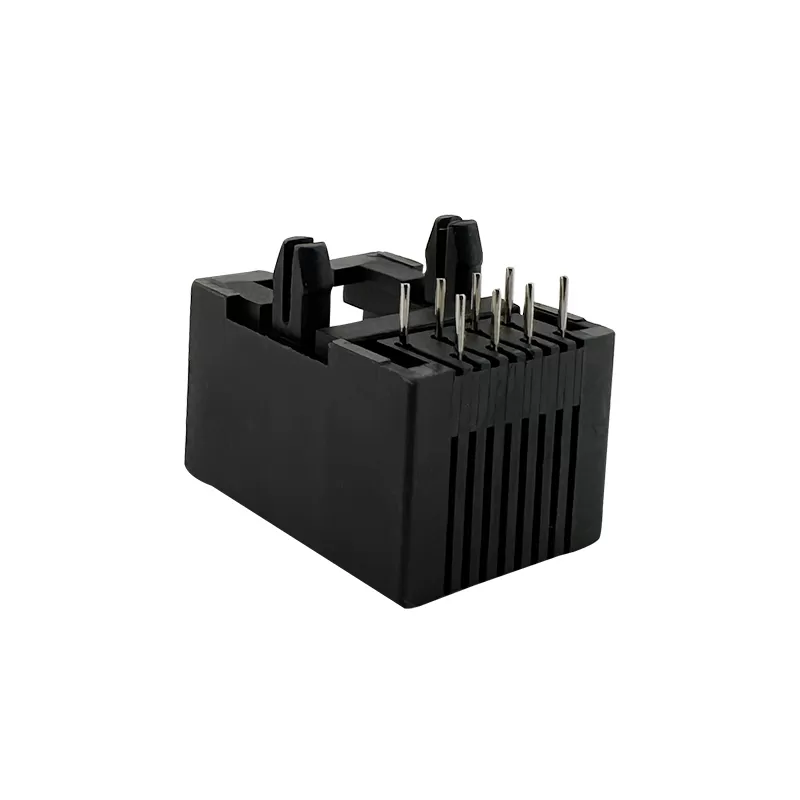

    RJ45-8P8C Jack:RHTLY38-8P8C

    Series P/N:RHTLY38-8P8C

    RHT provides a wide selection of Modular Jacks, supporting reliable network and data connections for computers, routers, network switches, communication equipment, and industrial devices.

    With various port configurations, contact arrangements, mounting styles, and structural designs, our products meet different PCB layouts, interface requirements, and equipment integration needs.

    RHT works closely with engineering teams to understand technical requirements and provide suitable Modular Jack solutions, supporting applications from sample evaluation and design verification to product integration.



    Inquire Now
    Share
    Product parameter:

    Features

    -Standards Compliance: Conforms to Ethernet standards for data transmission, ensuring compatibility and performance in network deployments.

    -Ease of Installation: Designed for straightforward integration into PCBs (Printed Circuit Boards), modular jack panels, and other network infrastructure components.

    -Variants: Available in various configurations including vertical, right-angle, shielded, and with integrated LEDs or transformers to suit different networking requirements and environments.

    -Connector Type: RJ45-8P8C stands for Registered Jack 45 with 8 positions and 8 contacts. It accommodates eight conductors (8P8C) arranged in four pairs, suitable for Ethernet cables conforming to standards such as Cat5, Cat6, and Cat6a.


    Applications

    1.Residential Networking

    2.Security and Surveillance

    3.Industrial Networking

    4.Telecommunications


    Specifications

    Material:

    Housing:    PBT+Glass Filled Polyester

    Flammability Rating : UL94V-0

    Contacts:  Phosphor Bronze ∅0.46mm

    Plating:     Gold Plating

    Electrical:

    Voltage Rating:           125VAC

    Current Rating:           1.5A

    Contact Resistance:    30mΩ Max.

    Insulation Resistance: 500MΩ Min.

    Dielectric Strength:    1000VAC Rms 50Hz,1 Min.

    Durability:                  600 cycles Min.

    Operation Temperature:-40°C~+70°C


    Technical Documents

    Please contact us for more information.
