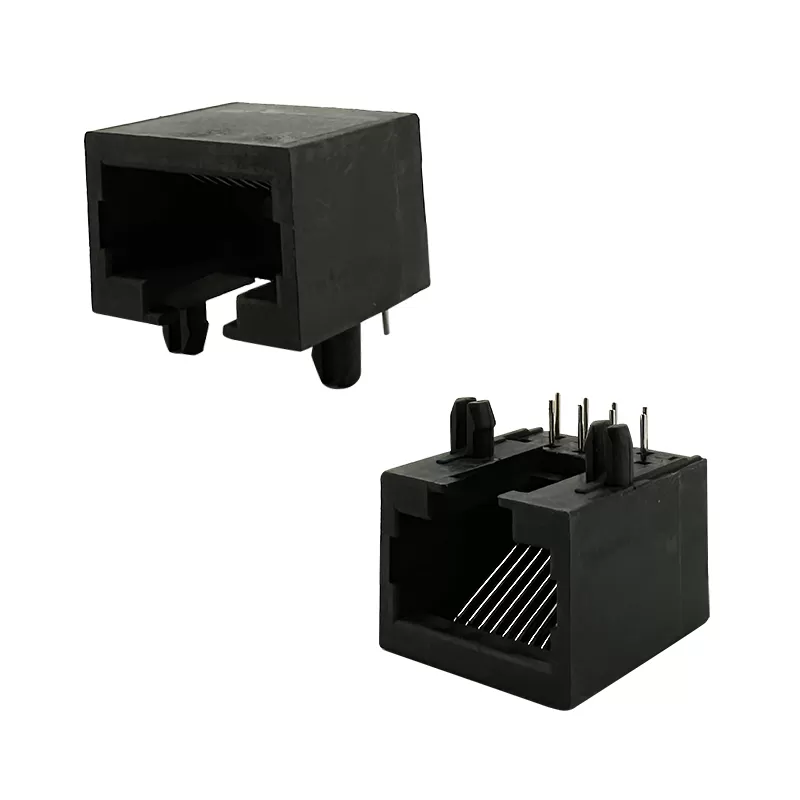

RJ45-8P8C Jack:RHTLY11-8P8C

Series P/N: RHTLY11-8P8C

RHT provides a wide selection of Modular Jacks, supporting reliable network and data connections for computers, routers, network switches, communication equipment, and industrial devices.

With various port configurations, contact arrangements, mounting styles, and structural designs, our products meet different PCB layouts, interface requirements, and equipment integration needs.

RHT works closely with engineering teams to understand technical requirements and provide suitable Modular Jack solutions, supporting applications from sample evaluation and design verification to product integration.

2D(PDF)Drawing

3D(IGS / STP)Drawing

Product parameter:

Features

-Connector Type: RJ45-8P8C stands for Registered Jack 45 with 8 positions and 8 contacts. It accommodates eight conductors (8P8C) arranged in four pairs, suitable for Ethernet cables conforming to standards such as Cat5, Cat6, and Cat6a.

-Compatibility: Compatible with standard RJ45 plugs, ensuring interoperability with various Ethernet cables and networking equipment.

-Construction: Typically made from durable materials such as plastic and metal components, designed to withstand mechanical stress, frequent plugging and unplugging, and environmental factors.

-Termination Options: Supports industry-standard termination methods, facilitating reliable connections to Ethernet cables through soldering, crimping, or punch-down techniques.

Applications

1.Network Equipment

2.Security and Surveillance

3.Industrial Networking

4.Telecommunications

Specifications

Material:

Housing: PBT+Glass Filled Polyester

Flammability Rating : UL94V-0

Contacts: Phosphor Bronze

Plating: Gold Plating

Electrical:
