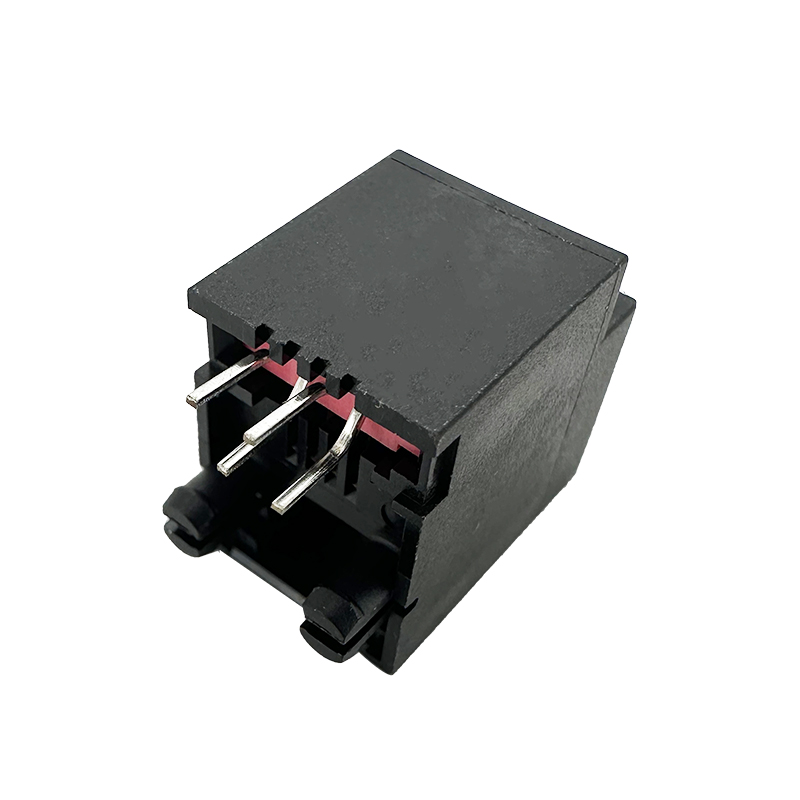

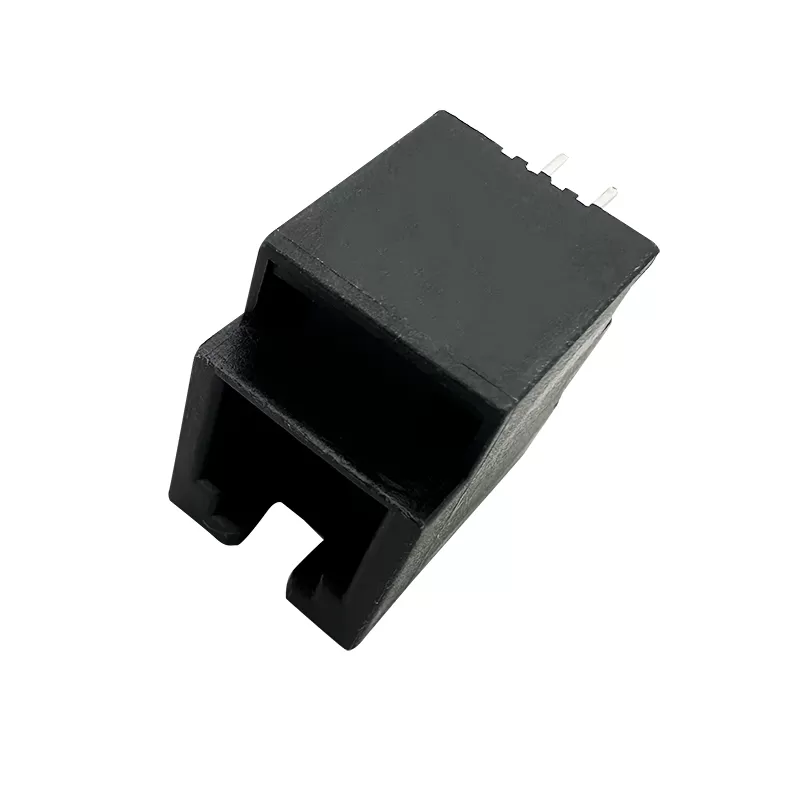

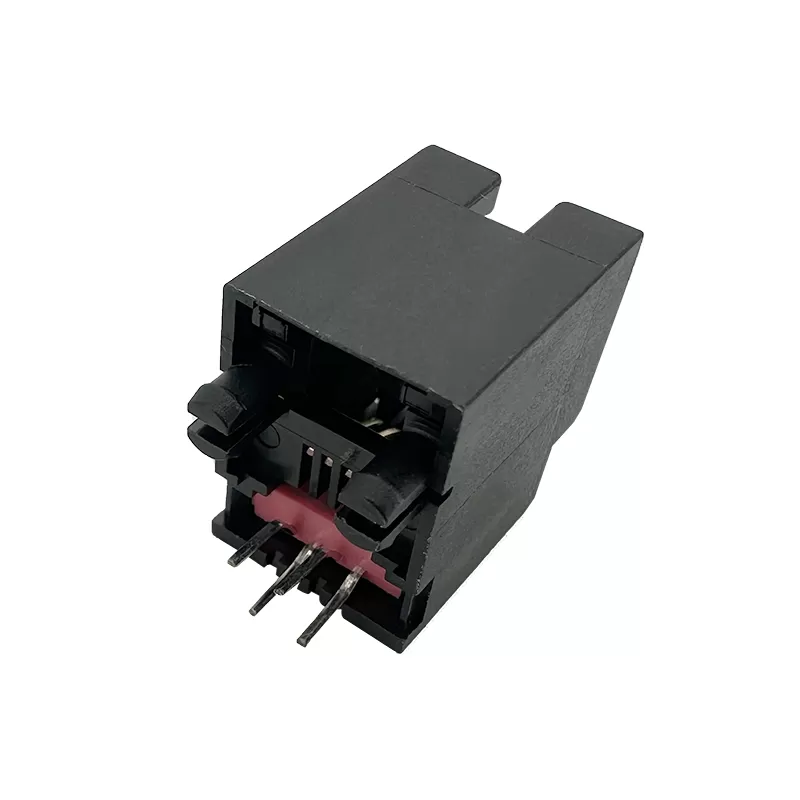

    RJ12-6P6C Jack:RHTLY25-6P6C

    RJ12-6P6C Jack:RHTLY25-6P6C

    Series P/N:RHTLY25-6P6C

    RHT provides a wide selection of Modular Jacks, supporting reliable network and data connections for computers, routers, network switches, communication equipment, and industrial devices.

    With various port configurations, contact arrangements, mounting styles, and structural designs, our products meet different PCB layouts, interface requirements, and equipment integration needs.

    RHT works closely with engineering teams to understand technical requirements and provide suitable Modular Jack solutions, supporting applications from sample evaluation and design verification to product integration.




    Inquire Now
    Share
    Product parameter:

    Features

    -Connector Type: RJ12, which is similar to RJ11 but with a larger configuration to accommodate up to 6 conductors.

    -Configuration: 6P6C (6 Position 6 Conductor), meaning it has 6 positions and 6 conductors (pins). This configuration is typically used for multi-line telephone connections and certain data applications that require additional conductors.

    -Compatibility: Designed to accept standard RJ12 modular plugs, ensuring compatibility with various telecommunications devices, including multi-line telephones, analog modems, and certain networking equipment.

    -Size and Orientation: Compact size suitable for integration into telephone equipment, wall plates, patch panels, and other devices requiring RJ12 connectivity. It can be mounted vertically or horizontally depending on the application and mounting setup.


    Applications

    1.Specialized Telecommunications Equipment

    2.Telecommunications Infrastructure

    3.VoIP Adapters

    4.Specialized Data Applications


    Specifications

    Material:

    Housing:    PBT+Glass Filled Polyester

    Flammability Rating : UL94V-0

    Contacts:  Phosphor Bronze ∅0.46mm

    Plating:     Gold Plating


    Electrical:

    Voltage Rating:           125VAC

    Current Rating:           1.5A

    Contact Resistance:    30mΩ Max.

    Insulation Resistance: 500MΩ Min.

    Dielectric Strength:    1000VAC Rms 50Hz,1 Min.

    Durability:                  600 cycles Min.

    Operation Temperature:-40°C~+70°C


    Technical Documents

    Please contact us for more information.
