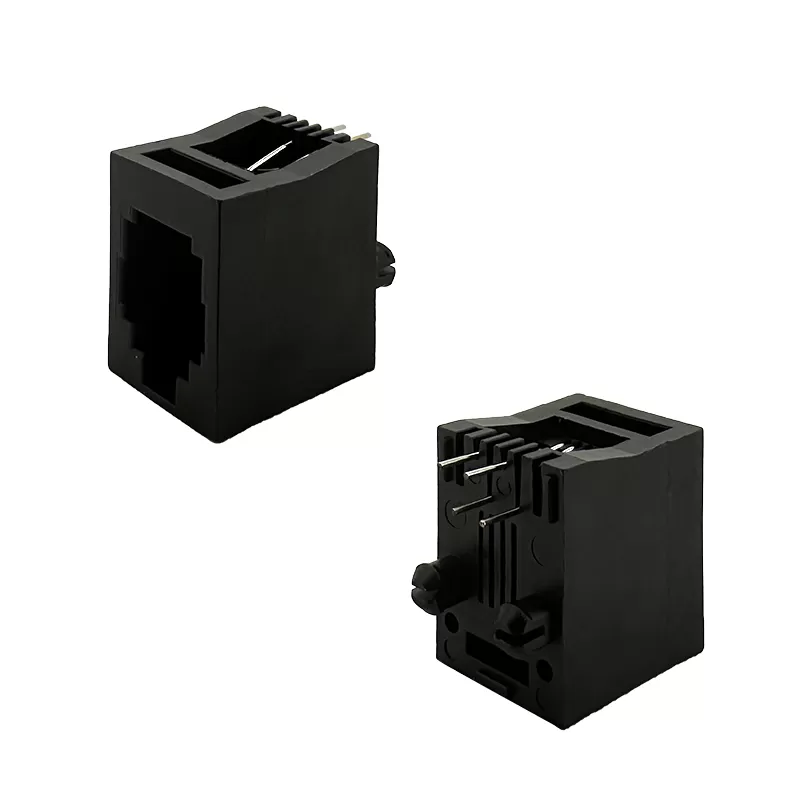

RHT provides a wide selection of Modular Jacks, supporting reliable network and data connections for computers, routers, network switches, communication equipment, and industrial devices.
With various port configurations, contact arrangements, mounting styles, and structural designs, our products meet different PCB layouts, interface requirements, and equipment integration needs.
RHT works closely with engineering teams to understand technical requirements and provide suitable Modular Jack solutions, supporting applications from sample evaluation and design verification to product integration.
Features
-It is typically used in telephone systems for voice communication.

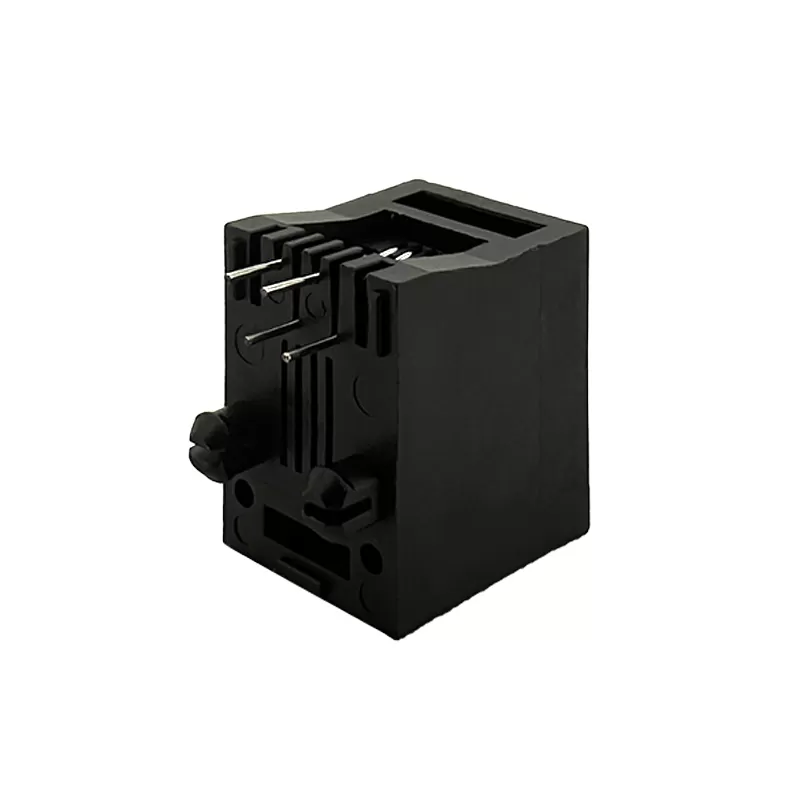

-Vertical mounting is ideal for space-constrained applications and provides a more organized and compact design.
-The small form factor is especially beneficial for consumer electronics, communication devices, and telecom equipment.
-The materials used help provide reliable connections and reduce wear over time, even with repeated insertions of RJ11 plugs.
Applications
1.Residential Telephony
2.Commercial and Office Settings
3.Retail and Hospitality
4.Industrial and Manufacturing
Specifications
Material:
Housing: PBT+Glass Filled Polyester
Flammability Rating : UL94V-0
Contacts: Phosphor Bronze ∅0.46mm
Plating: Gold Plating
Electrical:
Voltage Rating: 125VAC
Current Rating: 1.5A
Contact Resistance: 30mΩ Max.
Insulation Resistance: 500MΩ Min.
Dielectric Strength: 1000VAC Rms 50Hz,1 Min.
Durability: 600 cycles Min.
Operation Temperature:-40°C~+70°C
Technical Documents
Please contact us for more information.
