RJ45 Connector with Transformer 10/100Base-T Integrated Magnetics Modular Jack – RE-C-RJ451012C12
RHT provides a wide selection of Modular Jacks with Transformer, supporting reliable network connections for computers, routers, switches, and communication equipment.
With various port configurations, contact arrangements, integrated transformer designs, and mounting options, our products meet different PCB layouts and network interface requirements.
RHT works closely with engineering teams to understand technical needs and provide suitable Modular Jack with Transformer solutions, from sample evaluation and design verification to product integration.
RE-C-RJ451012C12
Features
-Ideal for embedded systems, IoT devices, and smart communication equipment
-10/100BASE RJ45 connector with transformer designed for high-speed networking
-Integrated magnetic components simplify circuit design and reduce external components
-Excellent dielectric strength and isolation performance for secure data communication
Applications
1.Consumer Electronics
2.Embedded Systems
3.Smart Devices
4.Telecom Equipment
Specifications
TOLERANCES UNLESS OTHERWISE SPECIFIED:
0–10±0.15、10–20±0.2、20~40±0.25、 40~70±0.3、≥70±0.4
JACK CAVITY CONFORMS TO FCC RULES AND
REGULATIONS,PART 68 SUBPART F.

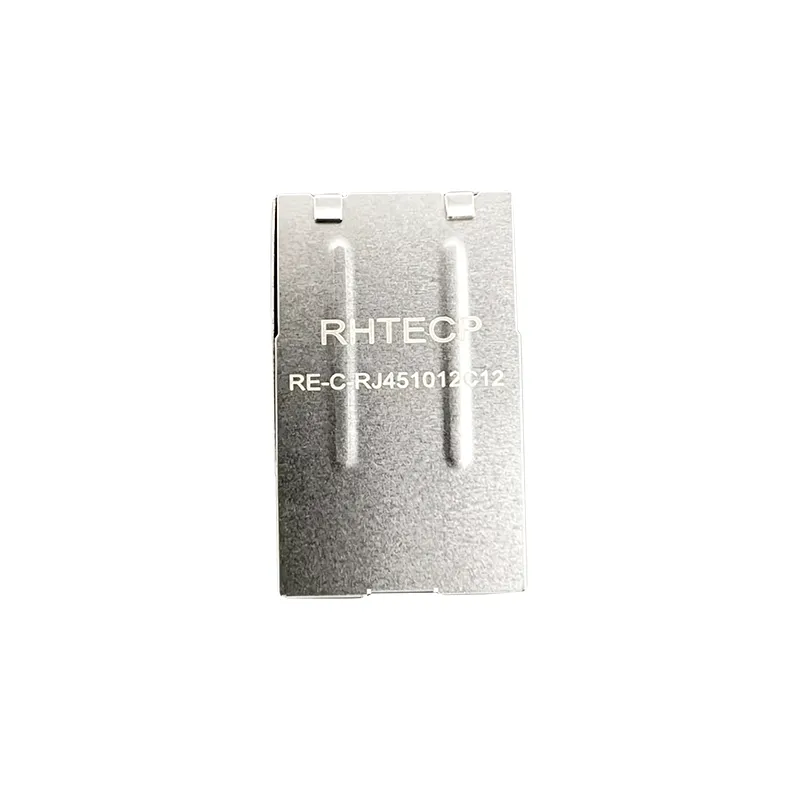

Shell Printing: RHTECP RE‑C‑RJ451012C12
Technical Documents
Please contact us for more information.
