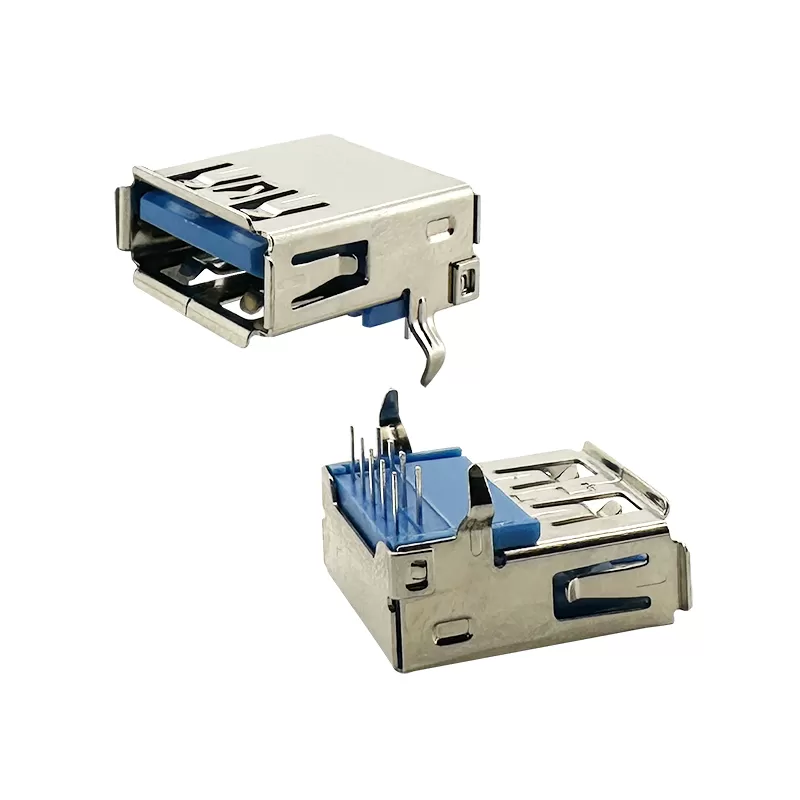

    dip 90 A Female 9P USB 3.0 Connectors:RHTAY46

    Series P/N: RHTAY46

    RHT provides a wide selection of USB 2.0 Connectors, supporting reliable data transmission and power connectivity for computers, consumer electronics, industrial equipment, and embedded systems.

    With various connector types, mounting styles, interface configurations, and structural designs, our products can accommodate different PCB layouts, device integration requirements, and application needs.

    As a connector solutions partner, RHT works closely with engineering teams to understand technical requirements, discuss application needs, and provide suitable USB 2.0 connector solutions from sample evaluation and design verification to product integration and project implementation.


    Inquire Now
    Share
    Product parameter:

    Features

    -Compatibility: Compliant with USB 3.0 specifications, ensuring compatibility with devices requiring high-speed data transfer rates and backward compatibility with USB 2.0 devices.

    -Design: Engineered for durability and reliability, featuring a sturdy housing and contacts that withstand frequent insertion and removal cycles.

    -Speed: Supports SuperSpeed USB 3.0 data transfer rates up to 5 Gbps, enabling rapid data transfer for large files, multimedia content, and high-definition video.

    -Power Delivery: Capable of enhanced power delivery compared to USB 2.0 connectors, supporting higher power output for charging and powering devices.


    Applications

    1.External Hard Drives and SSDs

    2.Printers and Scanners

    3.Audio Interfaces and Recording Equipment

    4.Video Cameras and Camcorders


    Specifications

    Electrical

    Voltage Current Rating:2AMP,30V AC

    Insulator Resistance: 100MΩ Min

    Contact Resistance: 50mΩ Max

    Withstanding Voltage: 300V AC

    Mechanical

    Operating Temperature:-55°C TO +85°C.

    Mating Force: 35N MAX

    Unmating Force: 10N MIN.


    Technical Documents

    Please contact us for more information.
