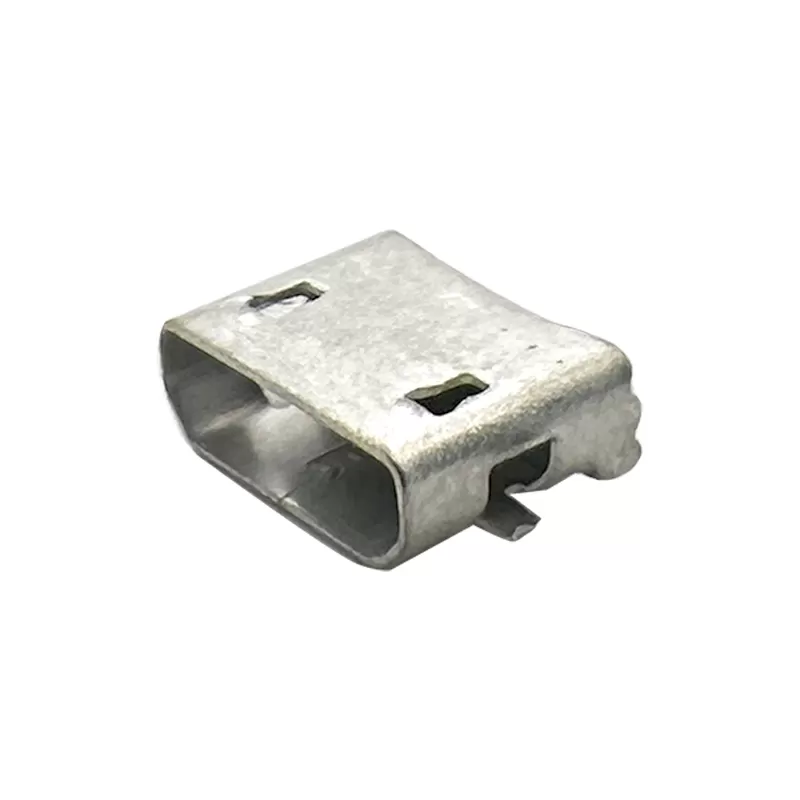

CONN RCPT 5POS MICRO USB SMD :RHTAY241

Series P/N: RHTAY241

RHT provides a wide selection of Micro USB Connectors, supporting reliable data transmission and power connectivity for compact electronic devices, mobile accessories, consumer electronics, and embedded systems.

With various connector types, mounting styles, contact configurations, and structural designs, our products can accommodate different PCB layouts, space constraints, device integration requirements, and application needs.

As a connector solutions partner, RHT works closely with engineering teams to understand technical requirements, discuss application needs, and provide suitable Micro USB connector solutions from sample evaluation and design verification to product integration and project implementation.

2D(PDF)Drawing

3D(IGS / STP)Drawing

Product parameter:

Features

-Data and Power Support: These positions enable data transmission (typically at 480 Mbps for USB 2.0) and power delivery (usually 5V) for charging devices such as smartphones, tablets, and other mobile electronics.

-Space-Efficient: The SMD design helps save valuable PCB real estate, making it an ideal choice for compact electronic devices where space is limited.

-USB 2.0 Standard: The connector adheres to USB 2.0 standards, supporting data speeds of up to 480 Mbps and 5V power for charging purposes.

-Contact Resilience: The contact pins are designed to handle repeated use without significant wear, providing consistent electrical connections over time.

Applications

1.Mobile Devices

2.Wearable Devices

3.Consumer Electronics

4.Embedded Systems and IoT Devices

Specifications

Material

Housing:Hing Temperature Thermoplastic

with G.F,UL94V-0,Black

Contact:Copper Alloy,t=0.20mm.

Shell:Copper Alloy,t=0.25mm.

Electrical:
