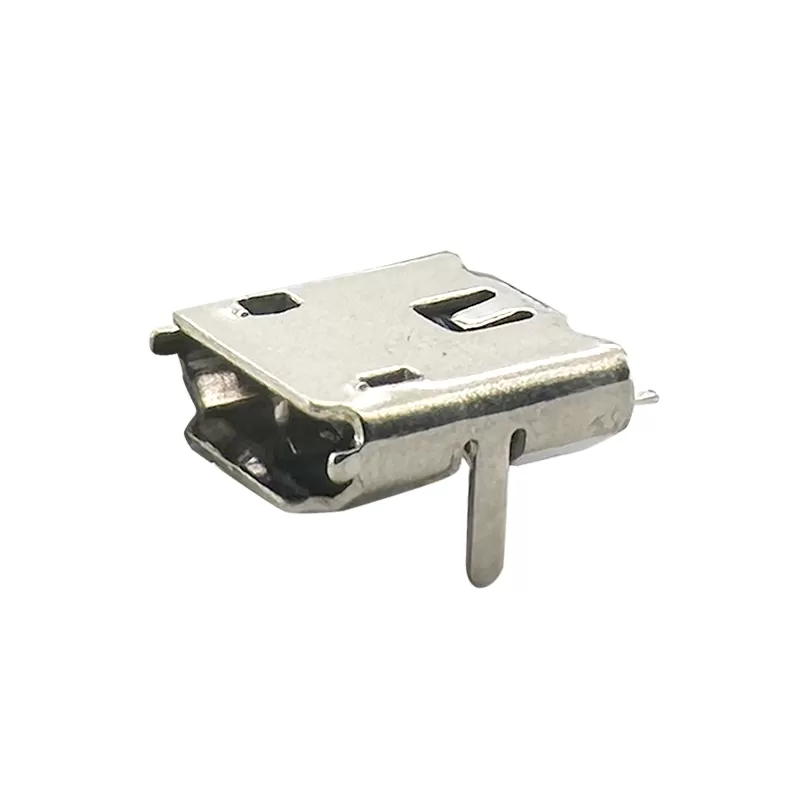

CONN MICRO USB 2P DIP :RHTAY251
Micro USB connectors is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of Micro USB connectors. Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.
Features
-Small Form Factor: The Micro USB 2P DIP connector features a micro USB Type-B interface, which is smaller and more compact than the standard USB Type-A or Type-B connectors, making it ideal for devices where space constraints are a concern.
-Versatile USB 2.0 Compatibility: It is typically USB 2.0 compliant, supporting data transfer speeds of up to 480 Mbps. It is compatible with a wide range of devices that require compact USB connectivity.
-Ease of PCB Integration: The DIP design makes it easy to integrate the connector into PCB layouts, ensuring secure soldering and long-term stability in electronic assemblies.
-As part of the USB 2.0 standard, the Micro USB 2P DIP connector operates with low power consumption, making it suitable for battery-powered devices or portable electronics.
Applications
Specifications
1.Mobile Devices
2.Wearable Devices
3.Consumer Electronics
4.External Storage Devices
Technical Documents
Material
Housing:Hing Temperature Thermoplastics,Black.
Contact:Copper Alloy C1591.
Shell:Copper Alloy C2680/SPCC.
Finish:
Contact:Plated Gold In Mating Area;Tin On Solder Talls.
Shell:Nickel Plating.
Electrical:
Current Rating:1.5A/Contact Terminal.
Voltage Rating:30V DC
Contact Resistance:30mΩ Max.
Dielectric Withstanding Voltage:500 V AC AT Sea Level.
Insulation Resistance:1000MΩ Min.
Connector Mate and Unmated Force
Mate Force:3.57kgf Max.
Unmated Force:1.02kgf Min.
Please contact us for more information.
