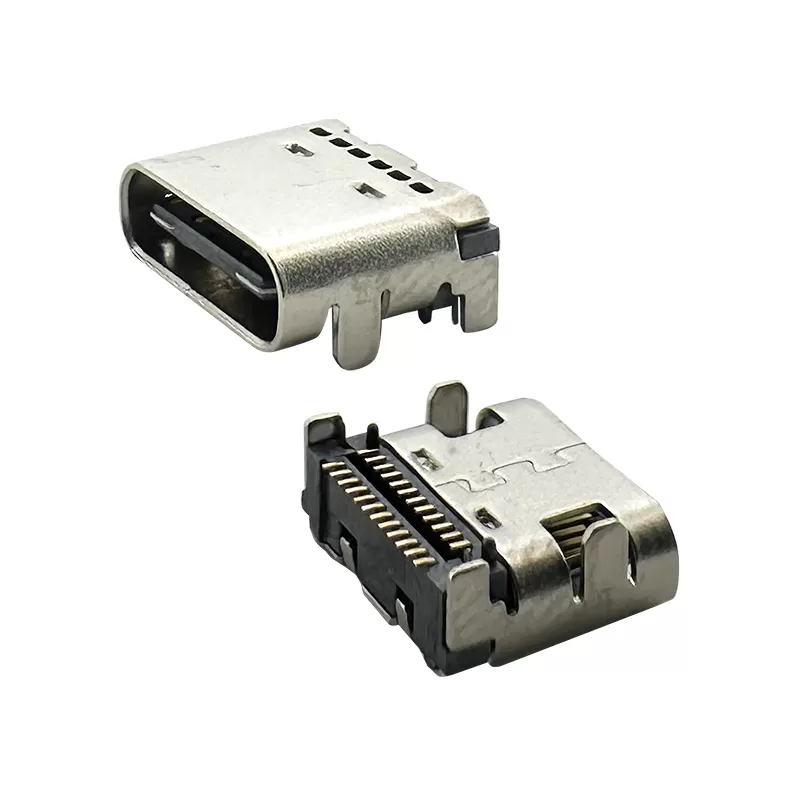

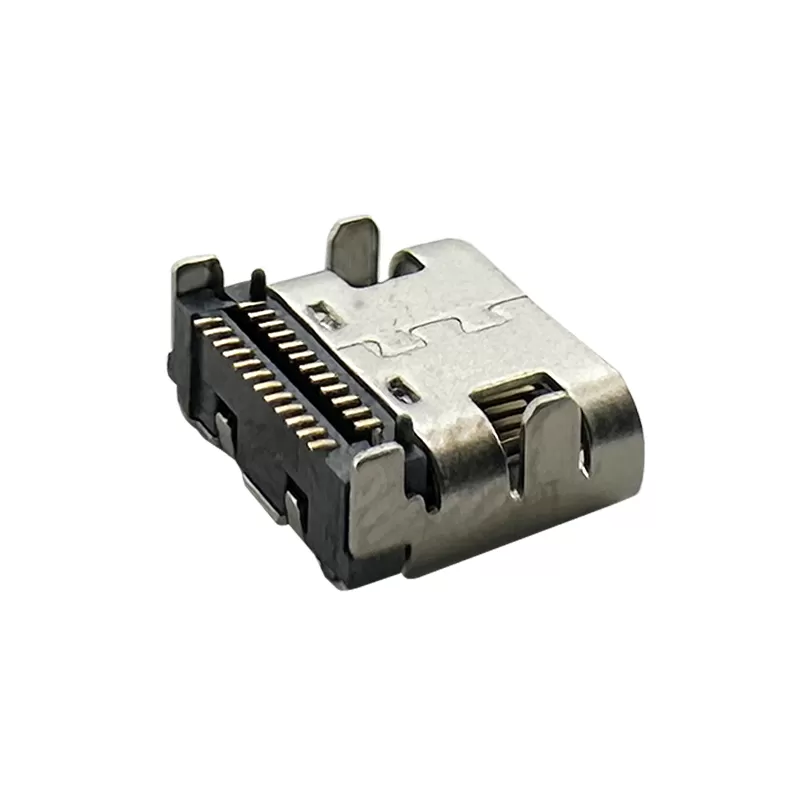

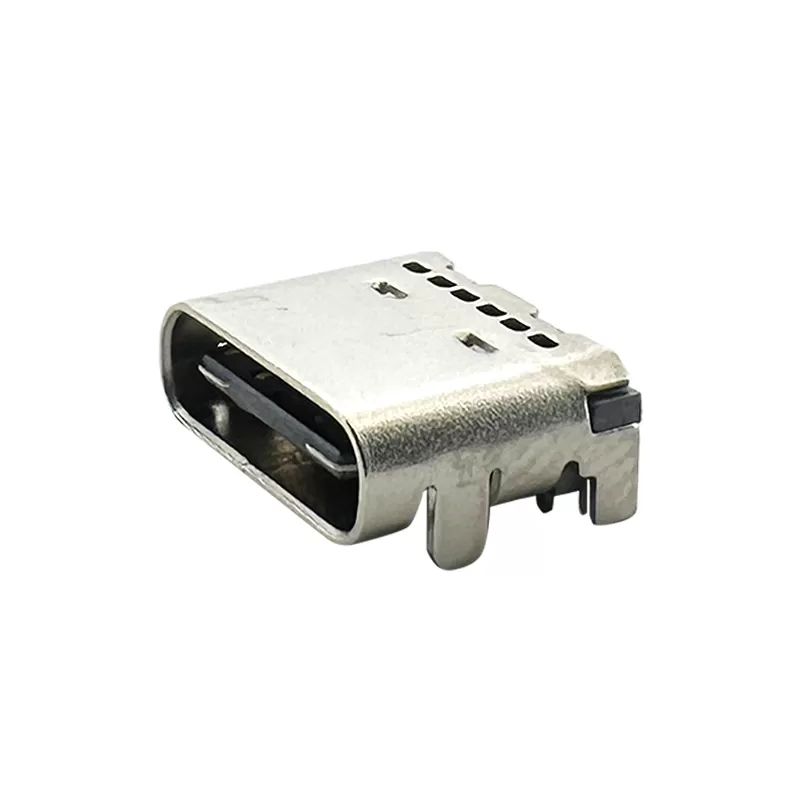

24P SMD L=7.9mm without plastic post USB 3.1 type C connector female socket :RHTAY405

Series P/N: RHTAY405

RHT provides a wide selection of USB 3.1 Type-C Connectors, designed to support high-speed data transmission, power delivery, and reversible plug-in connections for modern electronic devices.

With various mounting styles, contact configurations, structural designs, and PCB connection options, our products can accommodate different space constraints, interface requirements, and device integration needs across consumer electronics, computer peripherals, and industrial equipment.

As a connector solutions partner, RHT works closely with engineering teams to understand technical requirements, discuss application needs, and provide suitable USB 3.1 Type-C connector solutions from sample evaluation and design verification to product integration and project implementation.

2D(PDF)Drawing

3D(IGS / STP)Drawing

Product parameter:

Features

-Size and Dimensions:Length of 7.9mm refers to the overall length of the connector body. This compact size is suitable for applications where space-saving is critical, such as in slim electronic devices and portable gadgets.

-Surface Mount Design (SMD):Designed for direct mounting onto the surface of a printed circuit board (PCB), eliminating the need for through-holes and allowing for automated assembly processes.

SMD design enhances PCB layout flexibility and enables high-density mounting of components.

-Material and Construction:Typically made from materials such as durable thermoplastics for the housing and metal alloys for the contacts, ensuring mechanical strength, durability, and reliable electrical performance.

Contacts are often gold-plated to enhance conductivity, reduce signal loss, and withstand repeated mating cycles.

-Reversible Design:USB Type C connectors feature a reversible design, allowing users to insert the plug in either orientation (no upside-down), enhancing user convenience and reducing wear and tear on the connector and devices.

Applications

1.Consumer Electronics

2.Automotive Applications

3.Industrial and Embedded Systems

4.Audio Equipment

Specifications

24P SMD L=7.9mm without plastic post USB 3.1 type C connector female socket

Electrical

Current Rating: 1.5A Max

Voltage: 100 VAC

Contact Resistance: 40mΩ Max

Insulation Resistance: 100MΩ Min.
