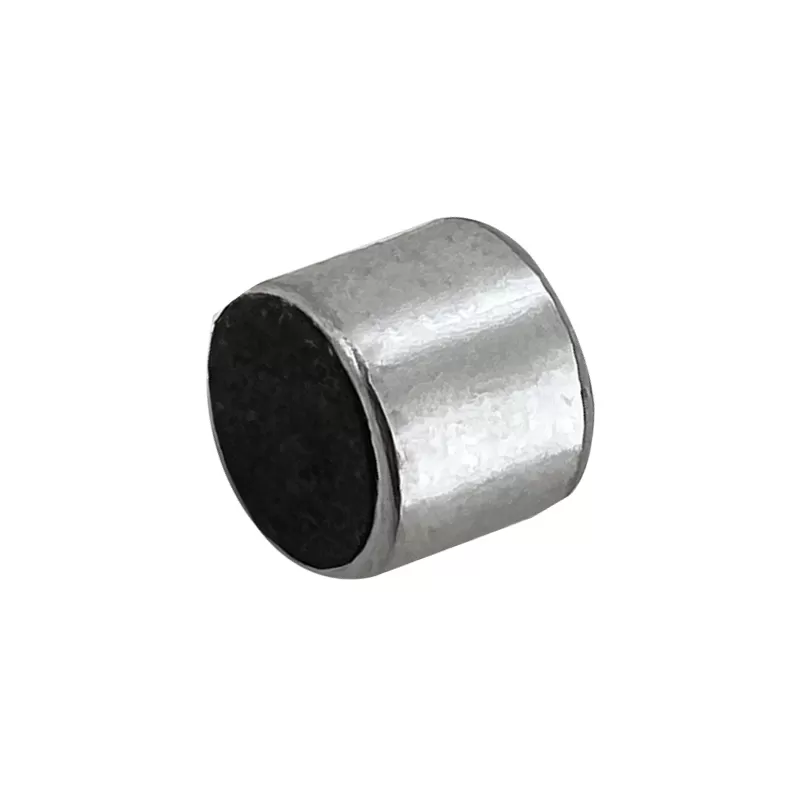

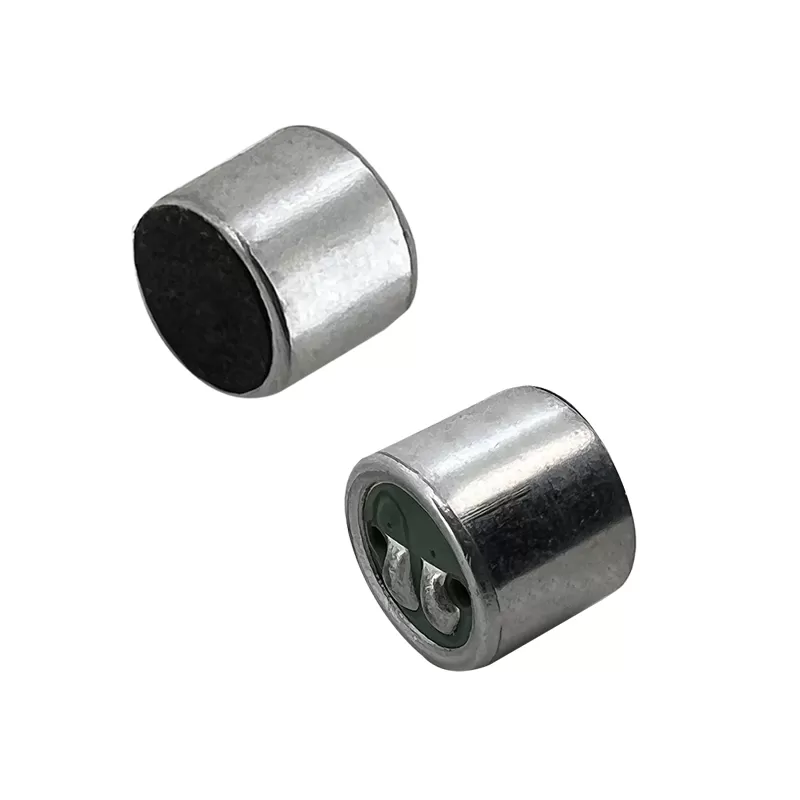

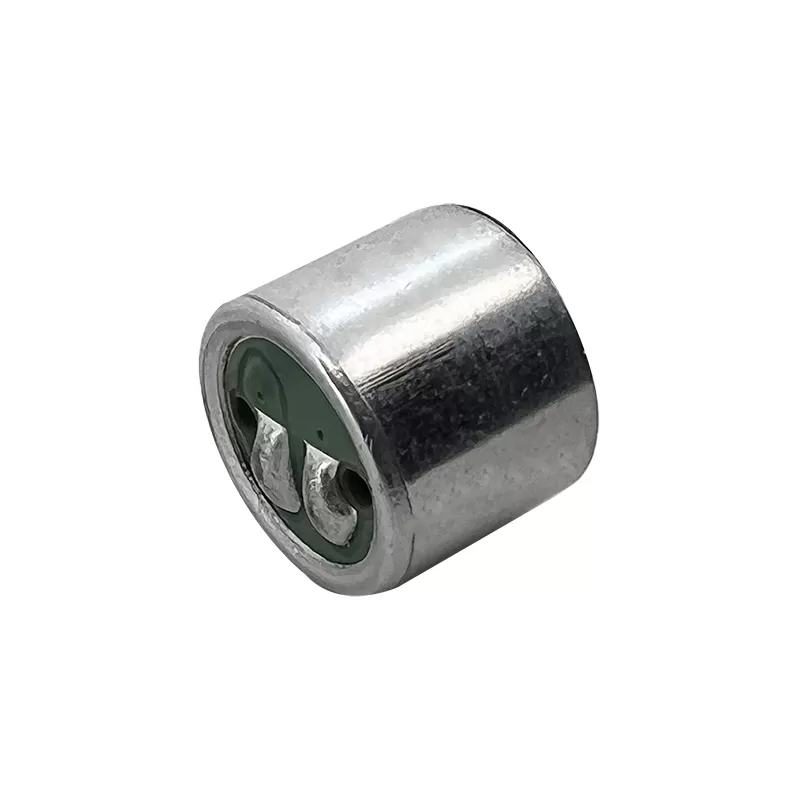

Unidirectional mini microphone MU6050 Serie：RHTCYU-6050P
Microphones is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of Microphones . Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.
Features
-High Sensitivity: Captures clear, detailed sound even in low-volume environments, ensuring accurate audio reproduction.
-Compact & Lightweight Design: Small form factor allows seamless integration into portable electronics, wearables, and embedded systems.
-Unidirectional Pickup Pattern: Focuses on the intended sound source while effectively minimizing ambient noise and interference.
-Wide Compatibility: Ideal for smartphones, tablets, computers, communication devices, audio recorders, and smart home devices.
Applications
1.Consumer Electronics
2.Communication Devices
3.Audio Recording
4.Smart Devices & IoT
Specifications
Sensityvity(1KHz,0dB=1V/Pa):-47±3dB
Directivity:Unidirectional
Impedance:2.2KΩ Max.
Current consumption:0.5mA Max.
Operation voltage:1.0~10V
S/N ratio:60dB Min.
Sensitivity vs. Voltage:3dB Max. at VS=2.0V~1.5V
Std. Test Condition:94dB S.P.L @1KHz VS=2.0V
Frequency:20~16,000Hz
Technical Documents
Please contact us for more information.
