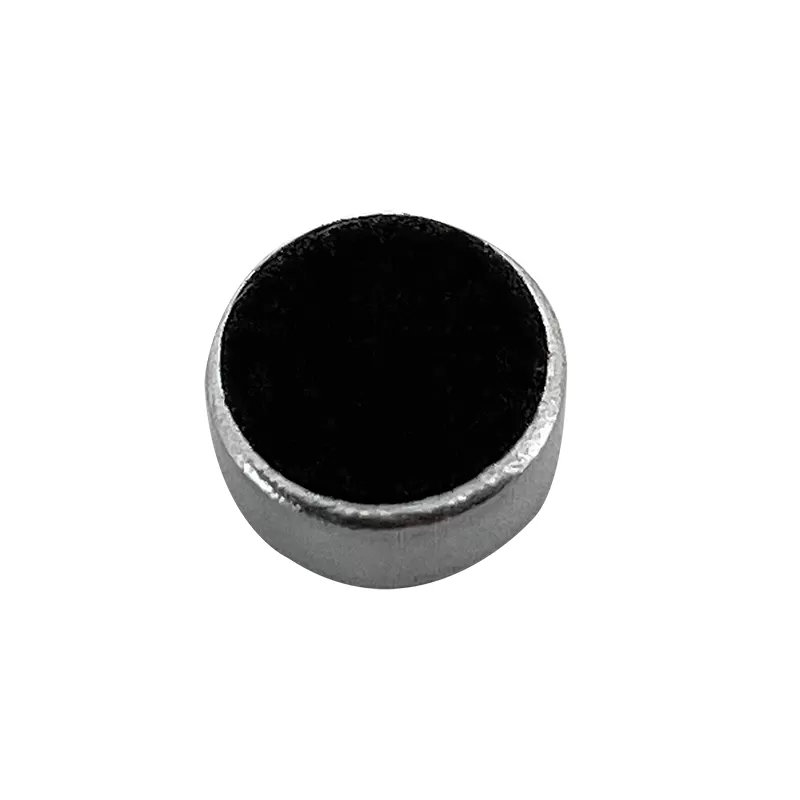

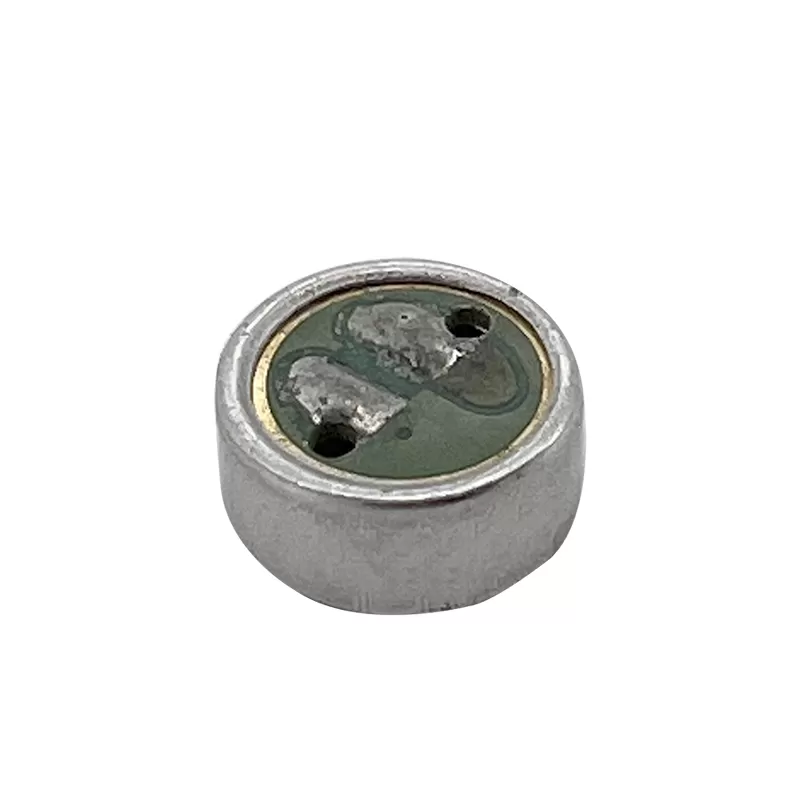

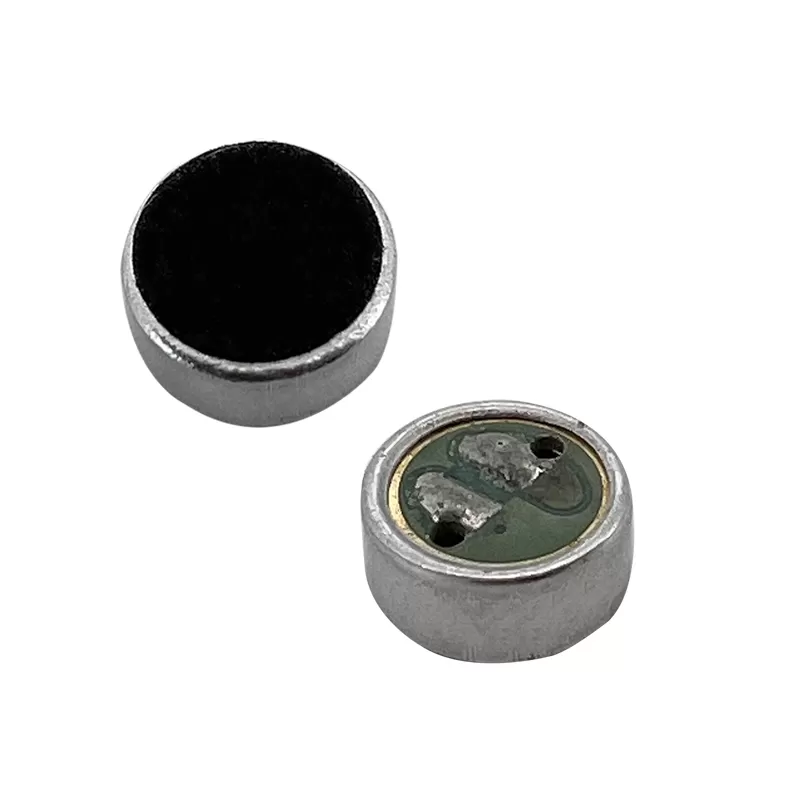

Unidirectional mini microphone MU6027 Serie：RHTCYU-6027P
Microphones is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of Microphones . Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.
Features
-Unidirectional sensitivity: Captures sound primarily from one direction, reducing background noise and enhancing voice clarity.
-Compact and lightweight design: Small form factor ideal for integration into space-constrained electronic devices.
-High signal-to-noise ratio (SNR): Ensures clear and accurate audio performance in voice and sound applications.
-Electret condenser technology: Delivers stable and reliable performance with low power consumption.
Applications
1.Medical equipment
2.Security systems
3.Wearable devices
4.Automotive electronics
Specifications
Sensityvity(1KHz,0dB=1V/Pa):-47±3dB
Directivity:Unidirectional
Impedance:2.2KΩ Max.
Current consumption:0.5mA Max.
Operation voltage:1.0~10V
S/N ratio:60dB Min.
Sensitivity vs. Voltage:3dB Max. at VS=2.0V~1.5V
Std. Test Condition:94dB S.P.L @1KHz VS=2.0V
Frequency:20~16,000Hz
Technical Documents
Please contact us for more information.
