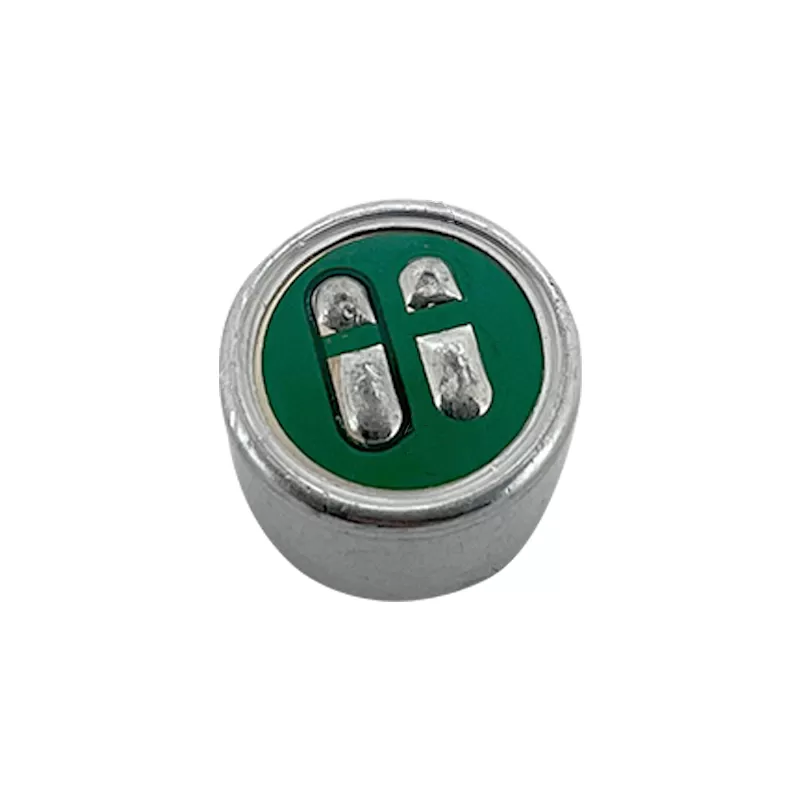

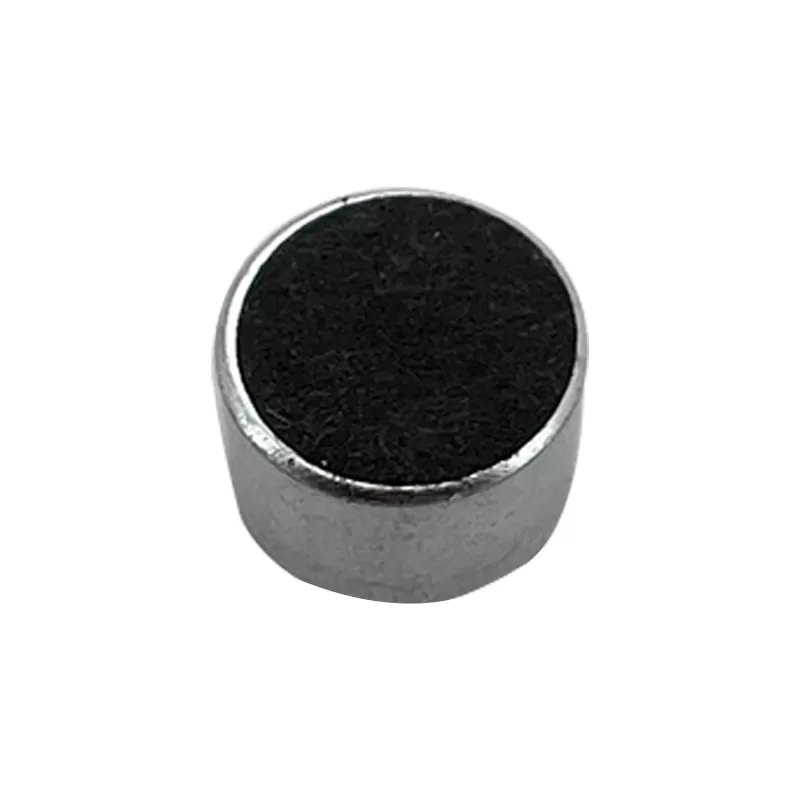

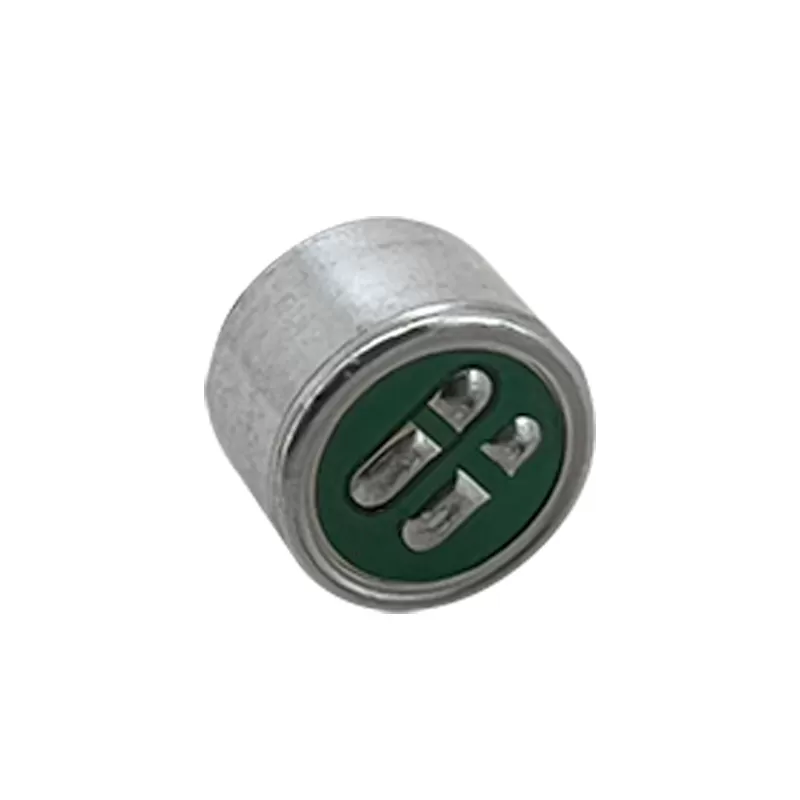

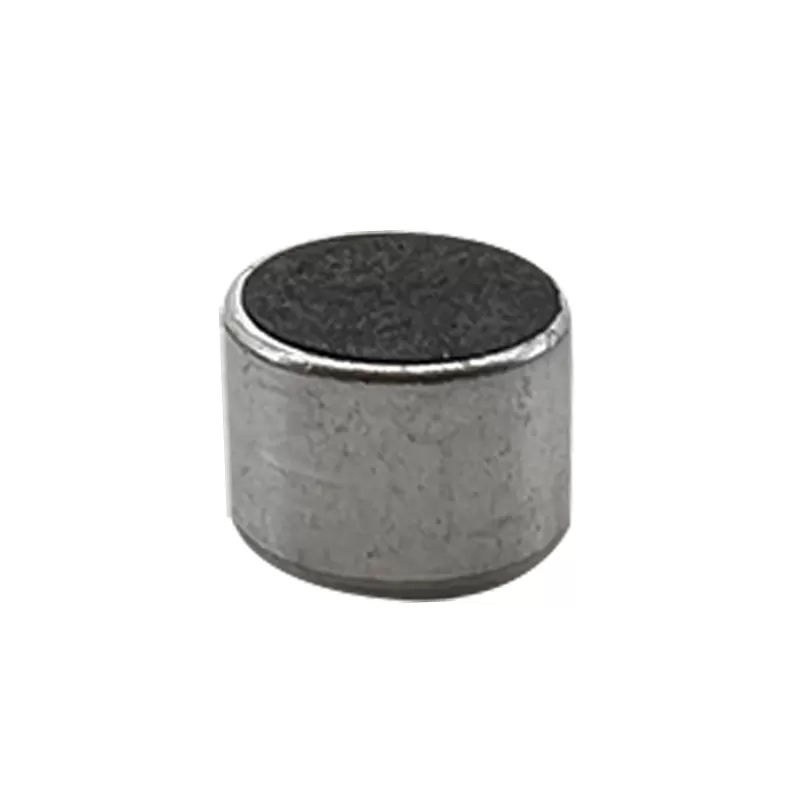

Omni-direction mini microphone MM9767 Serie:RHTCYM9767P

Features

-Omni-directional sound pickup for 360° audio capture with consistent sensitivity from all directions.

-High-sensitivity electret condenser element delivering clear and accurate sound reproduction.

-Low noise level ensuring clean audio performance for high-precision recording and voice applications.

-Compact and ultra-miniature design suitable for space-limited devices and compact assemblies.

Applications

1.Communication Devices

2.Wearable & Portable Devices

3.Smart Home & IoT Products

4.Audio Recording & Multimedia Equipment

Specifications

Sensityvity(1KHz,0dB=1V/Pa):-32±3dB ; -34±3dB ;-36±3dB ;

                                     -38±3dB ;-40±3dB ;-42±3dB ; -44±3dB

Directivity:Omnidire ctional

Impedance:2.2KΩ Max.

Current consumption:0.5mA Max.

Operation voltage:1.0~10V

S/N ratio:60dB Min.

Sensitivity vs. Voltage:3dB Max. at VS=2.0V~1.5V

Std. Test Condition:94dB S.P.L @1KHz VS=2.0V

Frequency:20~16,000Hz

Technical Documents

Please contact us for more information.
