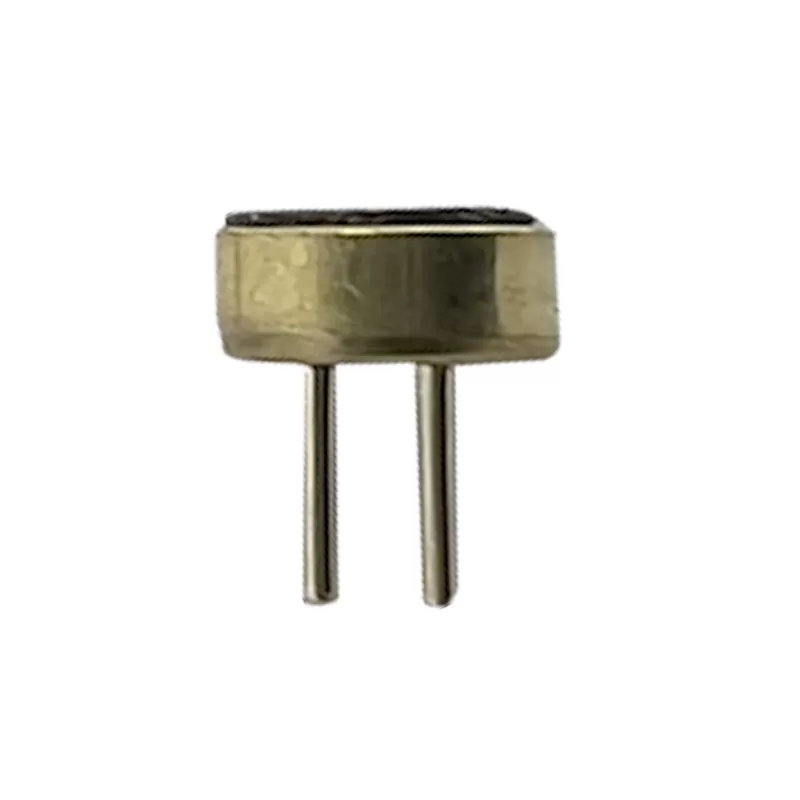

Omni-direction mini microphone MM4015P-High Sensitivity Serie：RHTCYM4015P
Microphones is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of Microphones . Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.
Features
-Low harmonic distortion for precise audio reproduction
-Resistant to mechanical vibration and shock, ensuring reliability in mobile devices
-Compatible with automated SMT or THT assembly processes
-Ideal for applications such as hearing aids, voice recorders, smart devices, and communication equipment
Applications
1.Consumer Electronics
2.Communication Devices
3.Smart Home & IoT Devices
4.Industrial Audio Equipment
Specifications
Specifications:
Sensityvity(1KHz,0dB=1V/Pa):-32±3dB ; -34±3dB; -36±3dB; -38±3dB
Directivity:Omnidire ctional
Impedance:2.2KΩ Max.
Current consumption:0.5mA Max.
Operation voltage:1.0~10V
S/N ratio:60dB Min.
Sensitivity vs. Voltage:3dB Max. at VS=2.0V~1.5V
Std. Test Condition:94dB S.P.L @1KHz VS=2.0V
Frequency:20~16,000Hz
Technical Documents
Please contact us for more information.
