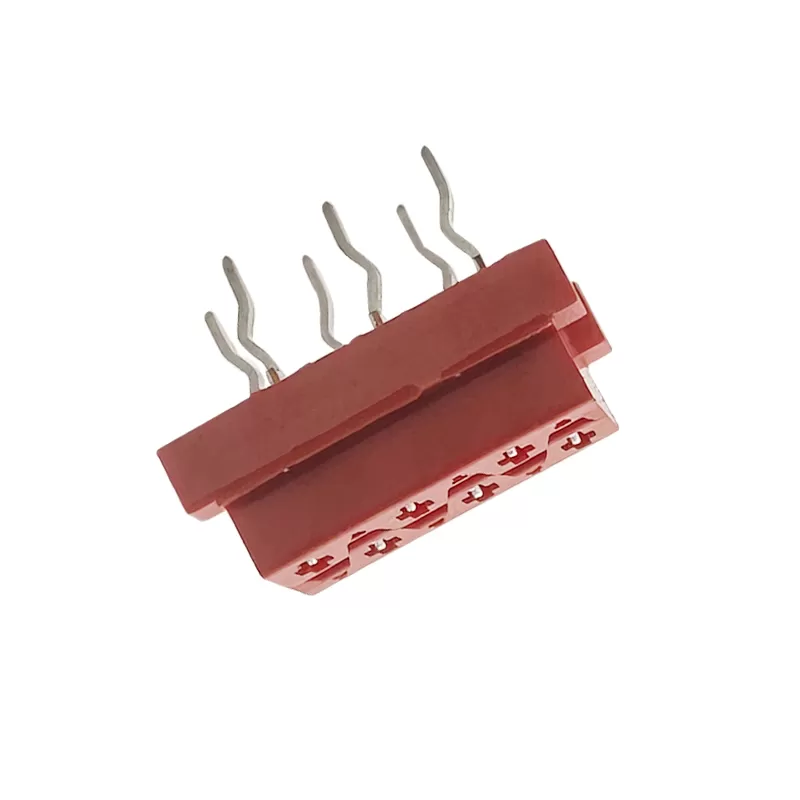

Micro Match Connector Female DIP 180 With Ear :RHTAY04FV
RHT provides a wide selection of Micro Match Connectors, helping engineers develop reliable and efficient PCB connection solutions.
With various pitches, contact configurations, pin counts, mounting options, and specifications, our connectors can meet different design requirements and application challenges.
As a Micro Match connector solutions partner, RHT’s engineering team works closely with design teams to understand technical requirements, discuss development needs, and provide suitable solutions from sample evaluation and prototype validation to project development and mass production.
Features
-Connector Type: Micro-Match Connector Female DIP 180 with ears.
-Design: Compact and space-saving design with additional mounting ears, enhancing stability and secure attachment to the PCB (Printed Circuit Board).
-Termination Type: DIP (Dual In-line Package) configuration, designed for through-hole mounting on PCBs.
-Pitch: Typically available in a pitch of 1.27 mm (0.05 inches), though other pitches may be available depending on the specific model.
Applications
1.Telecommunication Devices
2.Medical and Laboratory Equipment
3.Automotive Electronics
4.Aviation and Aerospace Applications
Specifications
Micro Match Connector Female DIP 180 With Ear
Order Information:
RHTAY04FV-XX-R-A
XX-No.of 04~26pin
Color: R=Red B=Black
Material:A=PBT D=PA9T E=PA46
Material:
Housing: PBT/PA46/PA9T UL94V-0
Contacts: Phosphor bronze
Plating:Sn over 50u" nickel
Electrical Characteristics:
Current Rating: 1.0 AMP
Voltage Rating: 230V AC/DC
Withstand voltage:500V AC/Minute
Contact Resistance: 20m Ohm max.
Insulator Resistance: 1000M Ohm min.
Operating Temperature: -40ºC~+105ºC
Technical Documents
Please contact us for more information.
