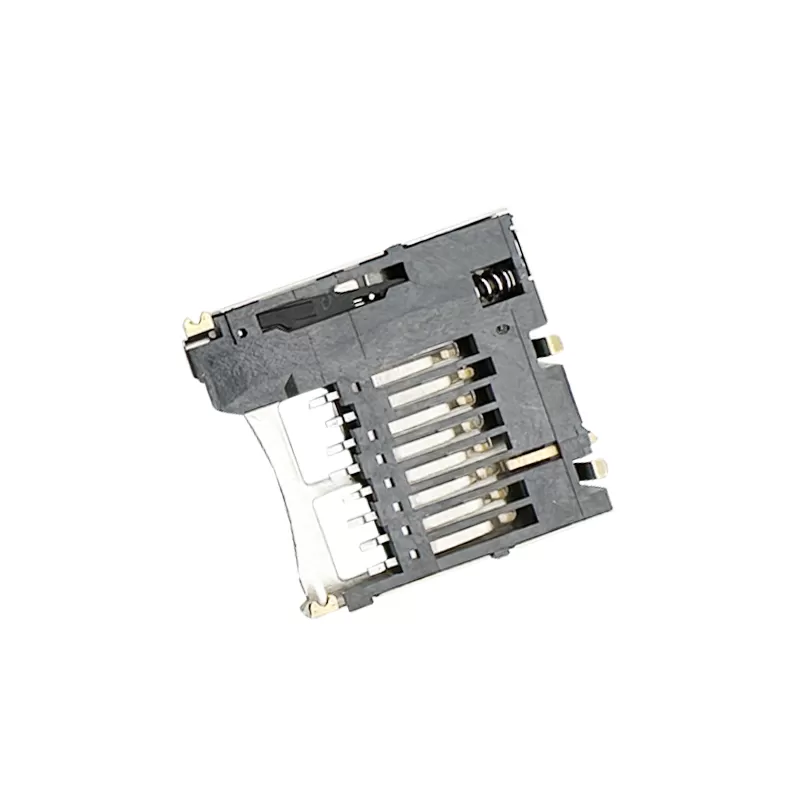

Micro SD card connector push push,H1.85mm,Normally open:RHTAYD107

Series P/N:RHTAYD107

RHT provides a wide selection of Memory Card Connectors, supporting reliable data connections and convenient memory card integration in electronic devices and embedded systems.

With various card formats, contact configurations, mounting options, and connector designs, our products can accommodate different device structures, interface requirements, and application needs.

As a connector solutions partner, RHT works closely with engineering teams to understand technical requirements, discuss application needs, and provide suitable memory card connector solutions from sample evaluation and design verification to product integration and project implementation.

2D(PDF)Drawing

3D(IGS / STP)Drawing

Product parameter:

Features

-Height: Specifically designed with a height of 1.85mm, making it suitable for various electronic devices where space is limited but not as compact as lower-profile variants.

-"Normally Open" Configuration: This term typically refers to the switch inside the SD card slot. A "Normally Open" switch means that when the SD card is inserted, it closes a circuit to signal its presence or readiness. This configuration is important for devices that need to detect when an SD card is inserted or removed automatically.

-Durability: Constructed from durable materials to withstand repeated insertion and removal cycles, ensuring longevity and reliability.

-Electrical Performance: Provides secure electrical contacts with low contact resistance, ensuring reliable data transfer between the Micro SD card and the device.

Applications

1.Termination Style

2.Current Rating and Voltage

3.Keying and Polarization

4.Environmental Considerations

Specifications

Micro SD card connector push push,H1.85mm,Normally open

Electrical:

Contact current rating:0.5A Max.

Contact resistance:100mΩ Max.

Insulation Resistance:250V DC or 300V AC for no less than 1 minute

Mating durability:10000 Cycles Min.
