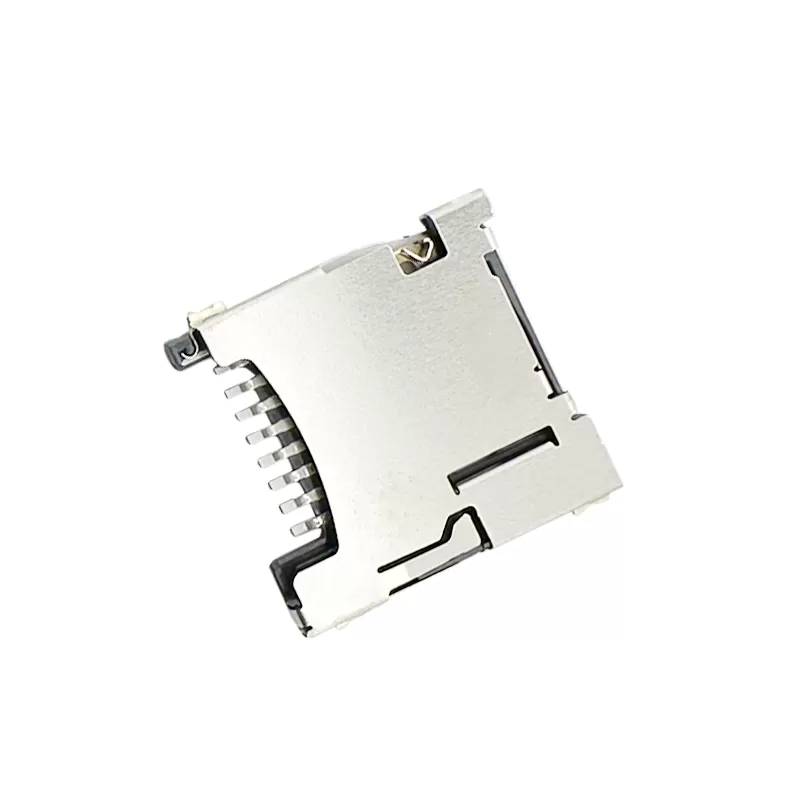

503182-1852 Micro SD Card Connector, Push-Push Type, H1.4mm, with CD Pin, Alternative to RHTAYF-016

Series P/N: RHTAYF-016

RHT provides a wide selection of Memory Card Connectors, supporting reliable data connections and convenient memory card integration in electronic devices and embedded systems.

With various card formats, contact configurations, mounting options, and connector designs, our products can accommodate different device structures, interface requirements, and application needs.

As a connector solutions partner, RHT works closely with engineering teams to understand technical requirements, discuss application needs, and provide suitable memory card connector solutions from sample evaluation and design verification to product integration and project implementation.

2D(PDF)Drawing

3D(IGS / STP)Drawing

Product parameter:

503182-1852 Micro SD Card Connector, Push-Push Type, H1.4mm, with CD Pin, Alternative to RHTAYF-016

Features

-Hinged Type Mechanism:The hinged design allows the SIM card tray to swing open, facilitating easy insertion and removal of the SIM card. This provides a secure and reliable connection once closed.

-Pin Configuration:Includes 6 pins to support all necessary electrical connections for full functionality and compatibility with standard nano SIM cards.

-Card Detect (CD) Pin:The CD pin detects the presence or absence of a SIM card. This feature allows the device to know when a SIM card is inserted or removed, enabling functionalities like software notifications or hardware triggers.

-Low Profile:With a height of 1.4mm, it is suitable for slim and compact devices, helping to maintain a sleek design.

Applications

1.Smartphones

2.Medical Devices

3.Industrial Equipment

4.Drones and Robotics

503182-1852

Specifications

Nano SIM Card Connector,6Pin,H1.4mm,Hinged Type,with CD Pin

Material:

Insulator:High Temperature Thermoplastic,UL94V-0.

Contact:Copper Alloy,Plated 50u" Ni Overall Contact All Au 1U.
