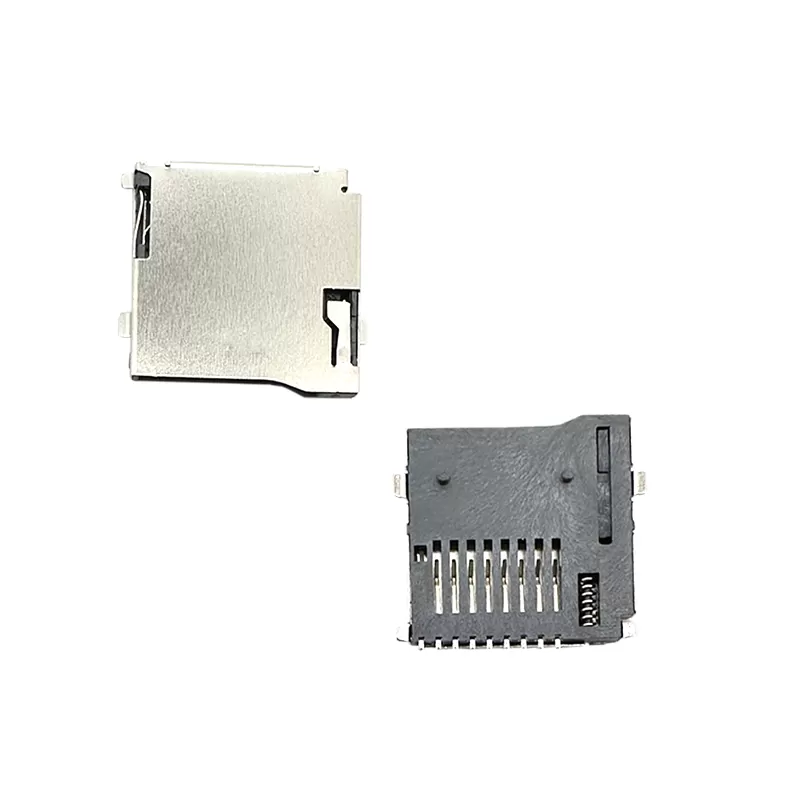

Micro SD card connector push push,H1.85mm,with CD pin:RHTAY20F-003

Series P/N:RHTAY20F-003

Memory card connectors is available at RHT.

We have been selling on the markets many years and get good feedback.

Please view our large selection of Memory card connectors. Any questions,Please contact our sales team to get any service support.

If you need any samples,quick L/T, and etc, we will try our best to support.

2D(PDF)Drawing

3D(IGS / STP)Drawing

Product parameter:

Features

-Secure Retention: The card stays securely in place when inserted, which helps prevent accidental disconnections or data loss during operation.

-Space-Saving: With a height of just 1.85mm, the connector fits into devices with very limited internal space while providing reliable functionality.

-Height: Specifically designed with a height of 1.85mm, which is standard for many compact devices, balancing between space-saving design and mechanical robustness.

-Prevents Data Corruption: The CD pin helps in preventing the device from attempting to access or write data to the SD card if it is not properly seated or inserted, thus avoiding potential data corruption or errors.

Applications

1.Mobile Devices

2.Cameras and Photography Equipment

3.Drones and UAVs

4.Medical and Healthcare Devices

Specifications

Micro SD card connector push push,H1.85mm,with CD pin

Material:

Insulator:High Temperature Thermoplastic,UL94V-0.

Contact:Copper Alloy T=0.15,Plated 50u" Ni Overall. Plated Au Selective

Contact Area Plated 30u"-70u" Sn Over Ni On Solder Area.

Shell:T=0.15,Plated 30u" Ni Overall min. Plated 0.5u" Au Selective Contact Area
