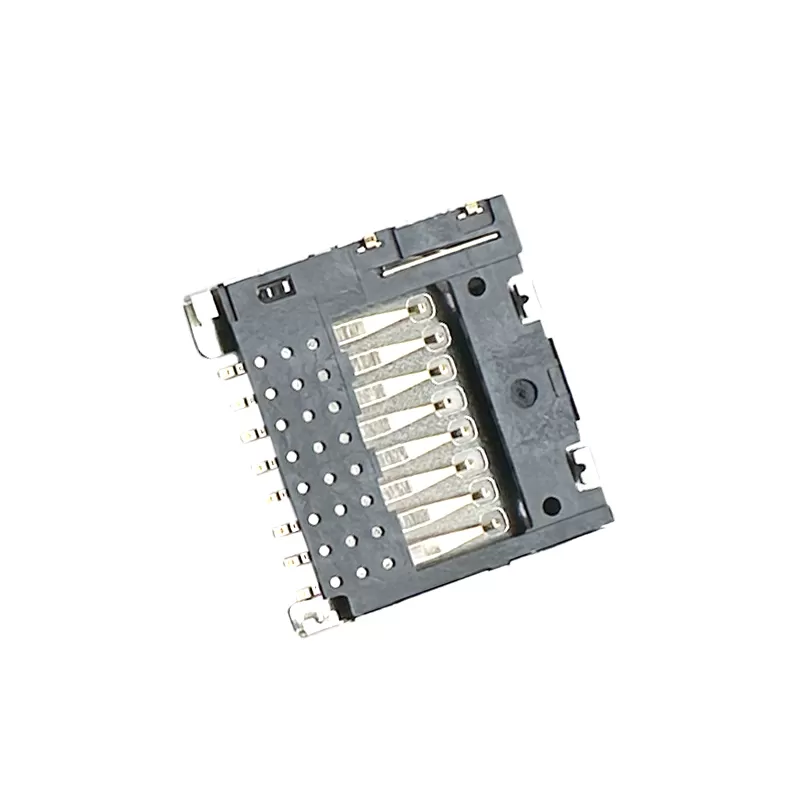

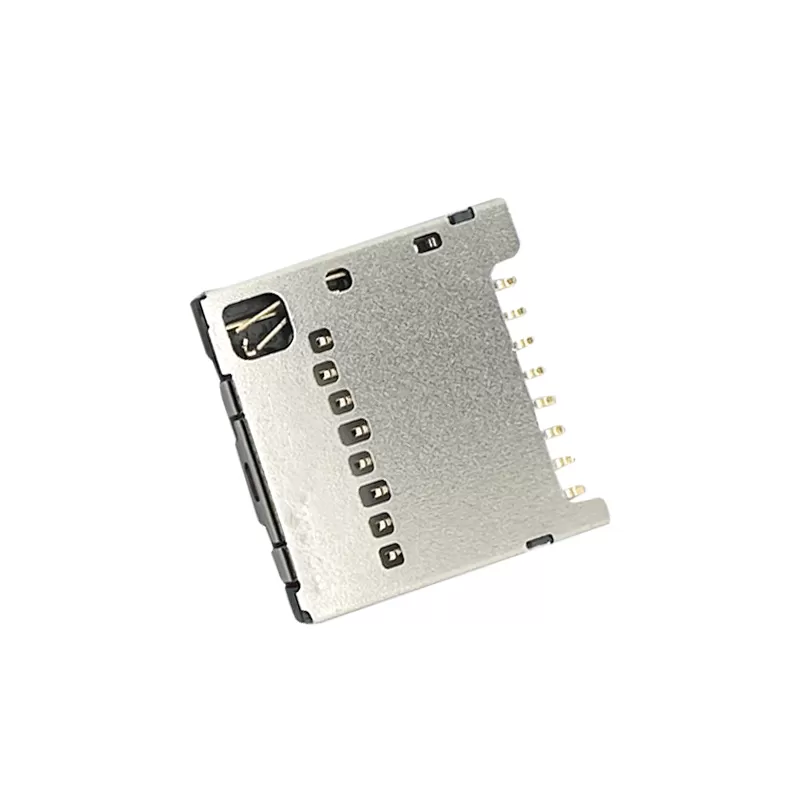

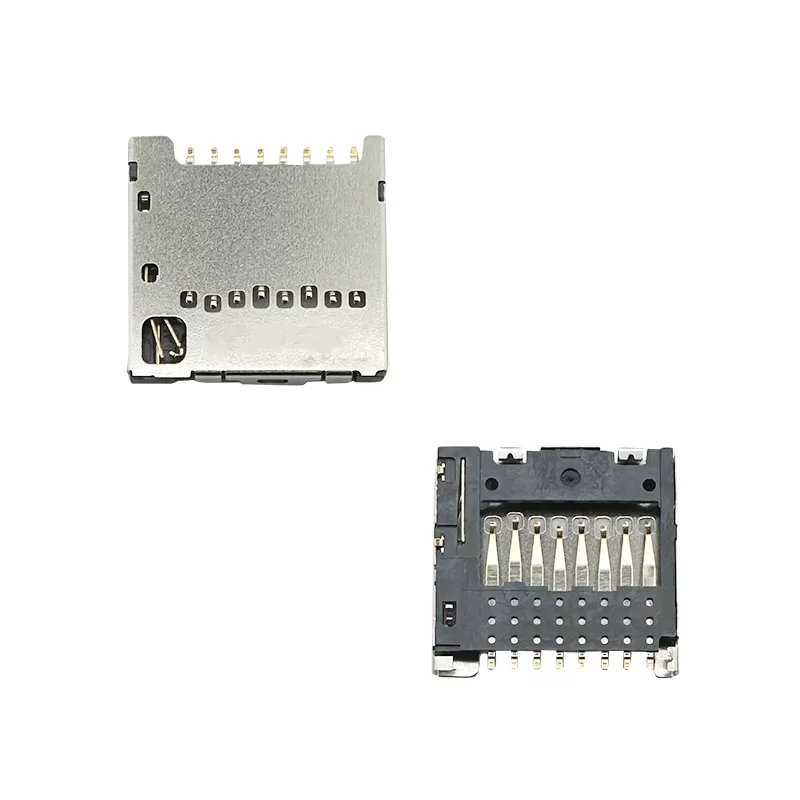

Micro SD card connector push pull,H1.42mm,with CD pin:RHTAYF-015

Series P/N:RHTAYF-015

RHT provides a wide selection of Memory Card Connectors, supporting reliable data connections and convenient memory card integration in electronic devices and embedded systems.

With various card formats, contact configurations, mounting options, and connector designs, our products can accommodate different device structures, interface requirements, and application needs.

As a connector solutions partner, RHT works closely with engineering teams to understand technical requirements, discuss application needs, and provide suitable memory card connector solutions from sample evaluation and design verification to product integration and project implementation.

2D(PDF)Drawing

3D(IGS / STP)Drawing

Product parameter:

Features

-Height: Specifically designed with a low profile height of 1.42mm, making it suitable for compact electronic devices where space is limited.

-CD Pin (Card Detect Pin): Used to detect the presence of the Micro SD card. This pin provides a signal to the device indicating whether a card is inserted or not, facilitating automatic detection and handling of card insertion events.

-Latch or Lock Mechanism: Incorporates a latch or lock that secures the Micro SD card in place when inserted. This ensures reliable contact and prevents accidental disconnection during use.

-Durability: Constructed from durable materials to withstand repeated insertion and removal cycles, ensuring longevity and reliability.

Applications

1.Mobile Devices

2.Digital Cameras and Camcorders

3.Portable Gaming Devices

4.Embedded Systems and IoT Devices

Specifications

Micro SD card connector push pull,H1.42mm,with CD pin

Material:

Metal shell:Stainless Steel,Nickel overall 50u"

Housing:Liouid crystal polymer,UL94V-0，Black.

Contact terminals:Phosphor Bronze.Contact:Gold flash;Solder Tail:Gold 1u"Min.
