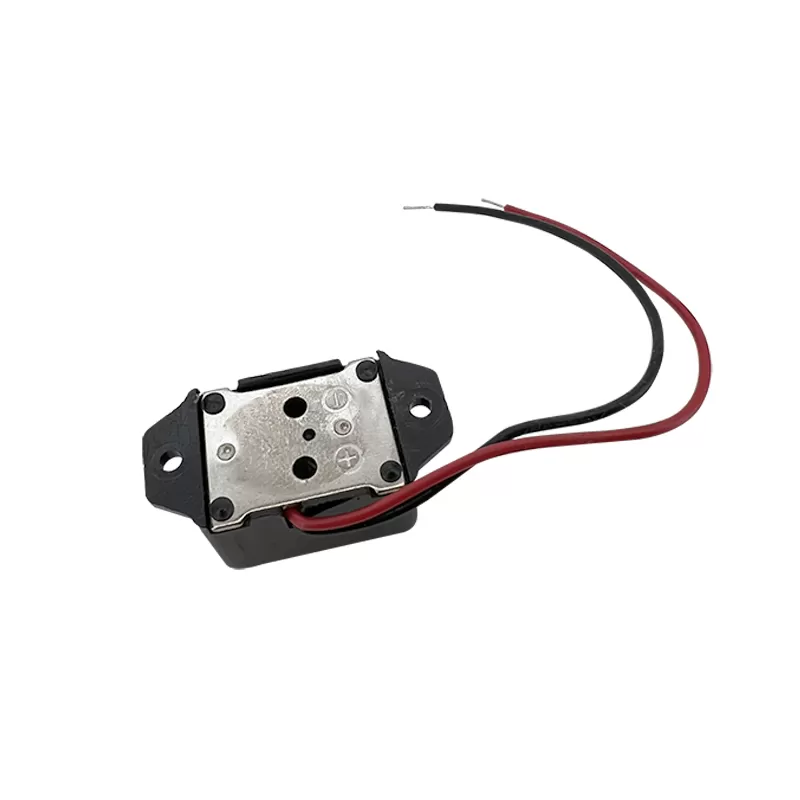

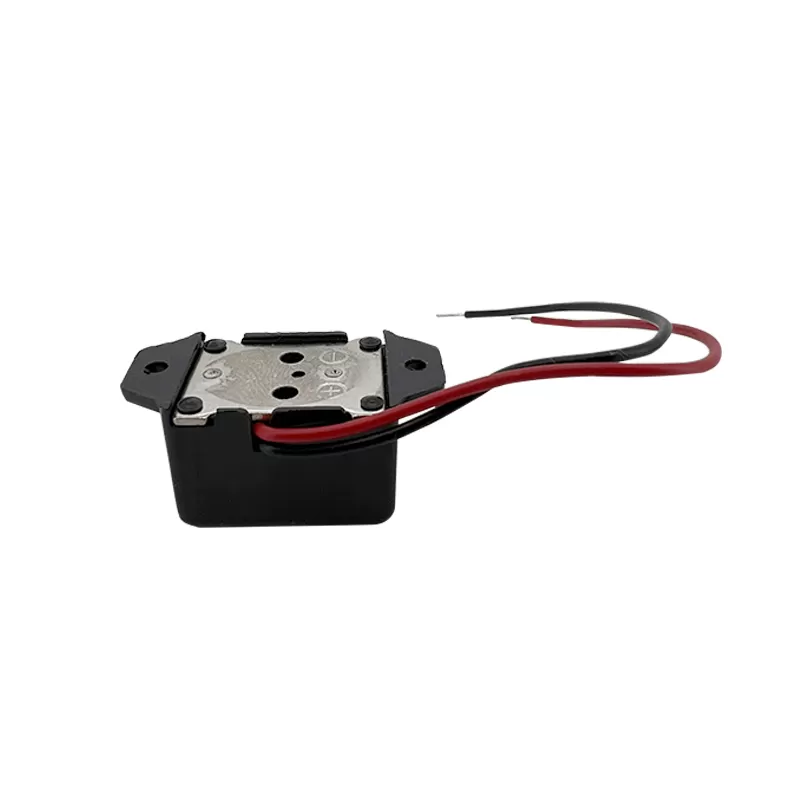

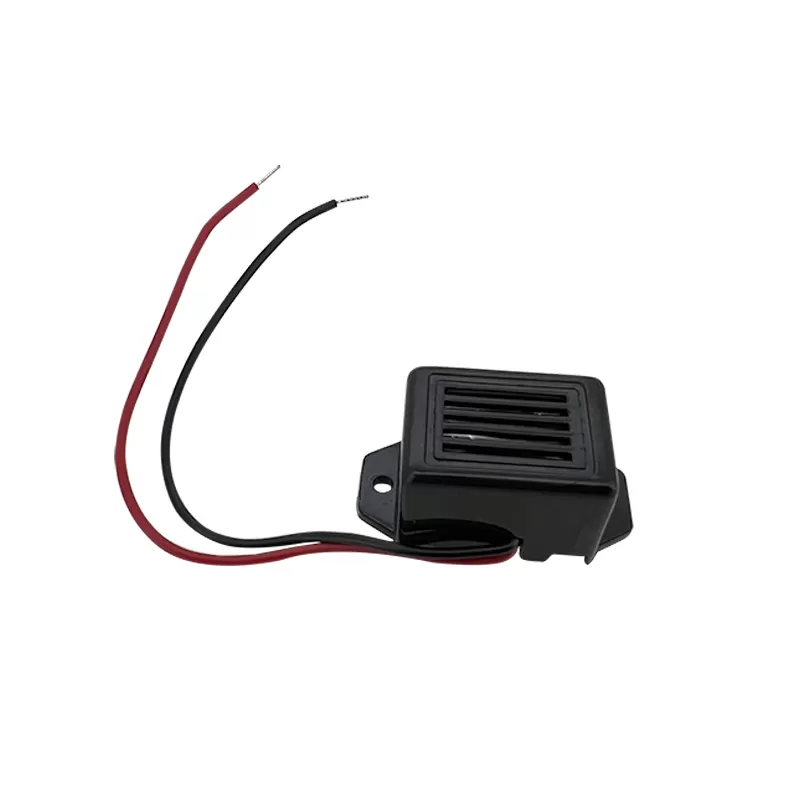

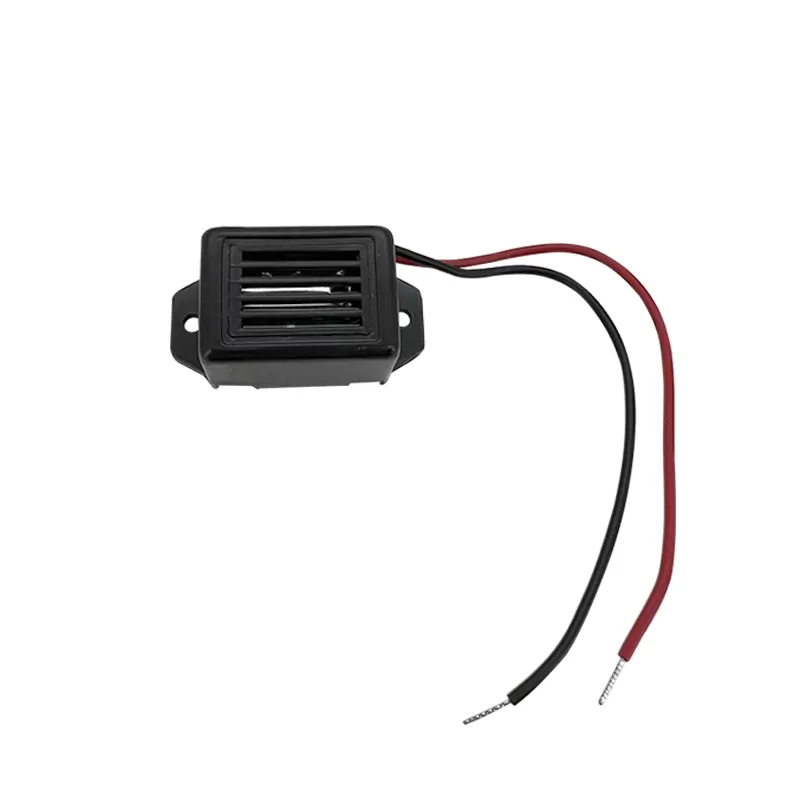

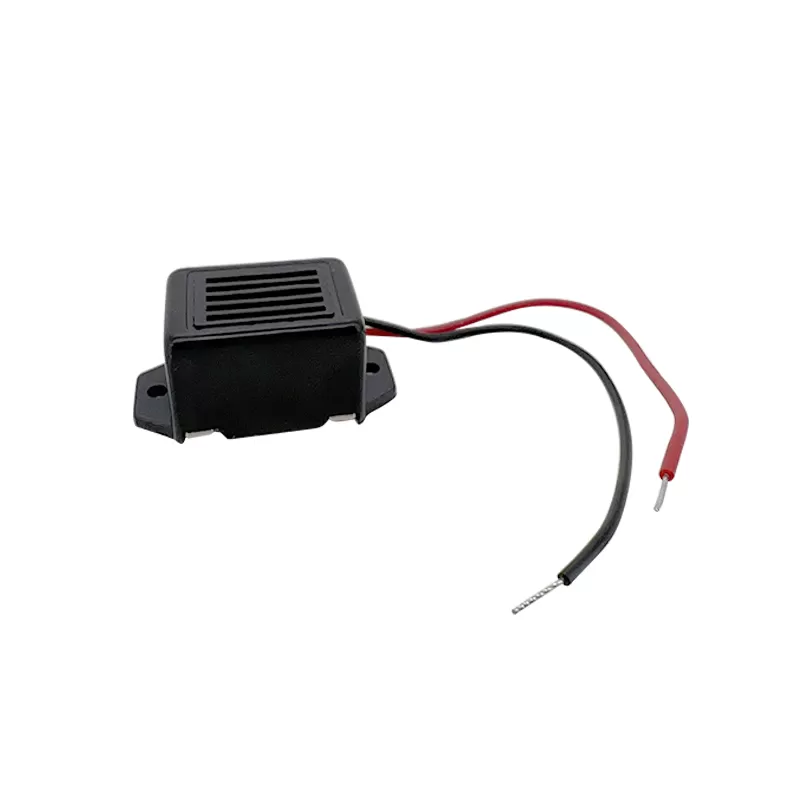

Mechanical Buzzer：RHTCYB-2315R
Mechanical Buzzer is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of Mechanical Buzzer. Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.
Features
-Compact and Lightweight Design: Miniature structure allows easy PCB mounting and seamless integration into various electronic devices.
-High Sound Output: Produces a clear and audible tone, ensuring effective alarms, notifications, and signaling even in noisy environments.
-Long Operational Lifespan: Engineered for durability and reliability, supporting continuous use in both industrial and consumer applications.
-Robust Construction: Built with high-quality materials to withstand mechanical stress, vibration, and environmental factors.
Applications
1.Industrial Equipment
2.Consumer Electronics
3.Alarm Systems
4.Notification Devices
Specifications
Mechanical Buzzer
Size: 23*17*15mm
RHTCYB-2315R-B HideTechnical Data
Rated Voltage 3VDC Operating Voltage 2-4VDC Max.Rated Current 25mA Min.S.P.L.(@20cm) 75dB Resonant Frequency 400 ±100Hz Operating Temp -20~+60°C Weight 10g
Order Code Rated Voltage Min.S.P.L.(@20cm)
RHTCYB-2315R-A 1.5VDC 70dB
RHTCYB-2315R-B 3VDC 75dB
RHTCYB-2315R-C 6VDC 75dB
RHTCYB-2315R-D 9VDC 75dB
RHTCYB-2315R-E 12VDC 75dB
RHTCYB-2315R-F 24VDC 75dB
Technical Documents
Please contact us for more information.Features
