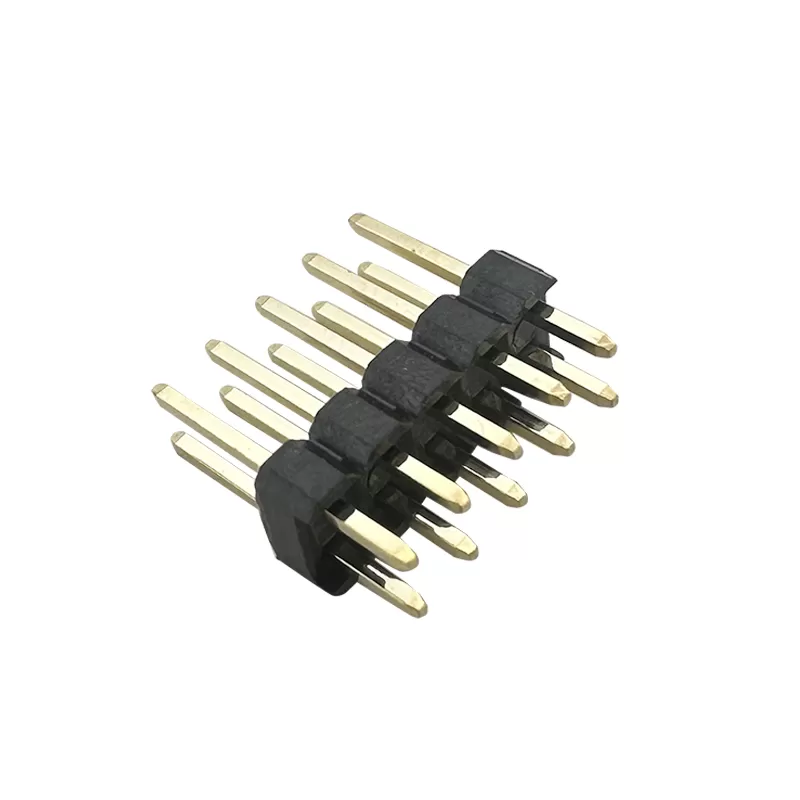

2.54mm Pitch Male Pin Header Connector H4.3mm :RHTAY07L

Series P/N:RHTAY07L

RHT provides a wide selection of Male Pin Header Connectors and Mini Jumper Connectors, helping engineers develop reliable and efficient PCB connection solutions.
With various pitches, pin counts, mounting options, configurations, and specifications, our connectors can meet different design requirements and application challenges.
As a connector solutions partner, RHT’s engineering team works closely with design teams to understand technical requirements, discuss development needs, and provide suitable solutions from sample evaluation and prototype validation to project development and mass production.

2D(PDF)Drawing

3D(IGS / STP)Drawing

Product parameter:

Features

-Pitch: 2.54mm (0.1 inches), which defines the distance between each pin center. This standard pitch ensures compatibility with a wide range of prototyping boards, breadboards, and PCBs designed for 0.1-inch grid spacing.

-Height: 4.3mm refers to the overall vertical dimension of the connector when mounted on a PCB. This height specification is crucial for determining clearance and space considerations in electronic designs.

-Number of Pins: Available in various configurations, ranging from single-row headers with a few pins to multi-row headers with numerous pins. The number of pins depends on the specific application requirements, accommodating different levels of connectivity.

-Connector Type: Male pin headers consist of rows of pins that extend from a plastic housing. These pins are designed to mate with corresponding female headers, sockets, or other components, providing a reliable electrical connection.

Applications

1. Embedded Systems

2. Telecommunications and Networking

3. Test and Measurement Equipment

4. DIY Electronics Projects

Specifications

2.54mm Pitch Pin Header Connector H4.3mm

Order Information

RHTAY07L-2-XX-S-L1*L2*L3-G0

2-Double layer

XX-Total pin number (No.of 2~80pin)

S-Straight Pin R-Right Angle Pin T-SMT Pin
