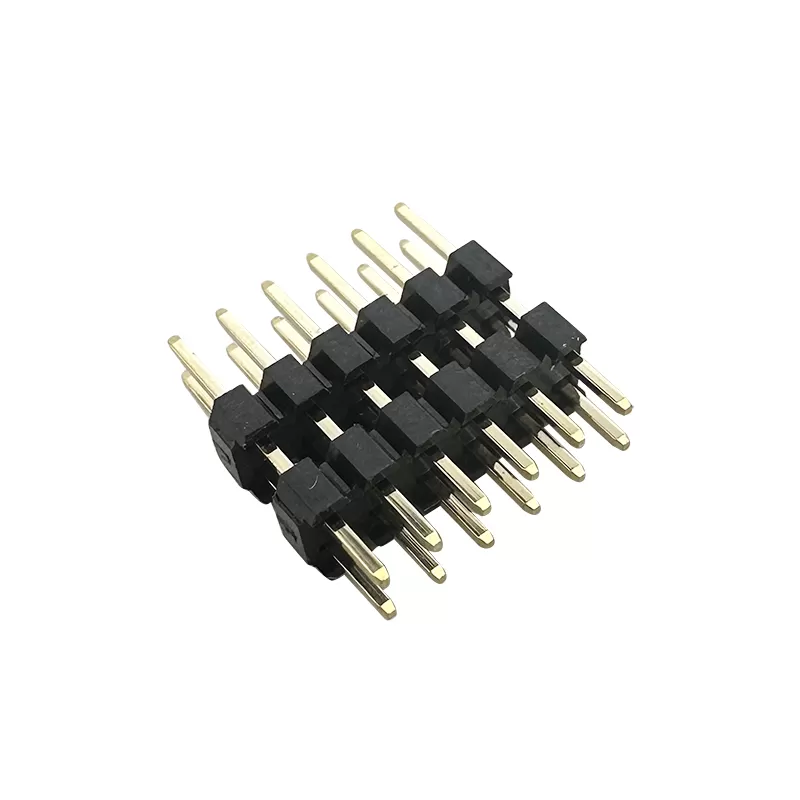

2.0mm Pitch Male Pin Header Connector Dual Insulator Plastic Type :RHTAY18B
Male pin header connetors & Mini jumper connectors is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of Male pin header connetors & Mini jumper connectors. Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.
Features
-The dual insulator plastic type refers to a design where the connector uses two layers of insulation, enhancing the overall protection of the connector.
-The dual insulation improves safety and performance, reducing the risk of short circuits, electrical interference, and damage due to external factors like moisture or dust.
-The dual insulation improves safety and performance, reducing the risk of short circuits, electrical interference, and damage due to external factors like moisture or dust.
-Vibration resistance is improved, making these connectors suitable for applications in environments with high mechanical stress or movement.
Applications
1.IConsumer Electronics
2.Networking & Communication Equipment
3.Industrial Automation
4.Medical Devices
Specifications
2.0mm Pitch Pin Header Connector With Dual Insulator Plastic Type
Order Information
RHTAY18B-2.00-1-XX-S-L1*L2*L3 -G0
Plastics Height:2.00mm、1.50mm
1-Single layer 2-Double layer
XX-Total pin number (No.of 2~80pin)
S-Straight Pin R-Right Angle Pin T-SMT Pin
Size: L1*L2*L3
Plating: G0=Gold Flash G1=1u" Gold G10=10u" Gold G15=15u" Gold G30=30u" Gold
Material:
Housing: PA6T UL94V-0
Contacts: Brass
Plating: Gold plated: 0.8u" over 50u" nickel
Electrical Characteristics:
Current Rating: 1.5 AMP
Insulator Resistance: 1000M Ohm min.
Contact Resistance: 20m Ohm max.
Withstanding Voltage:AC 500V/Minute
Operating Temperature: -45ºC~+105ºC
Technical Documents
Please contact us for more information.
