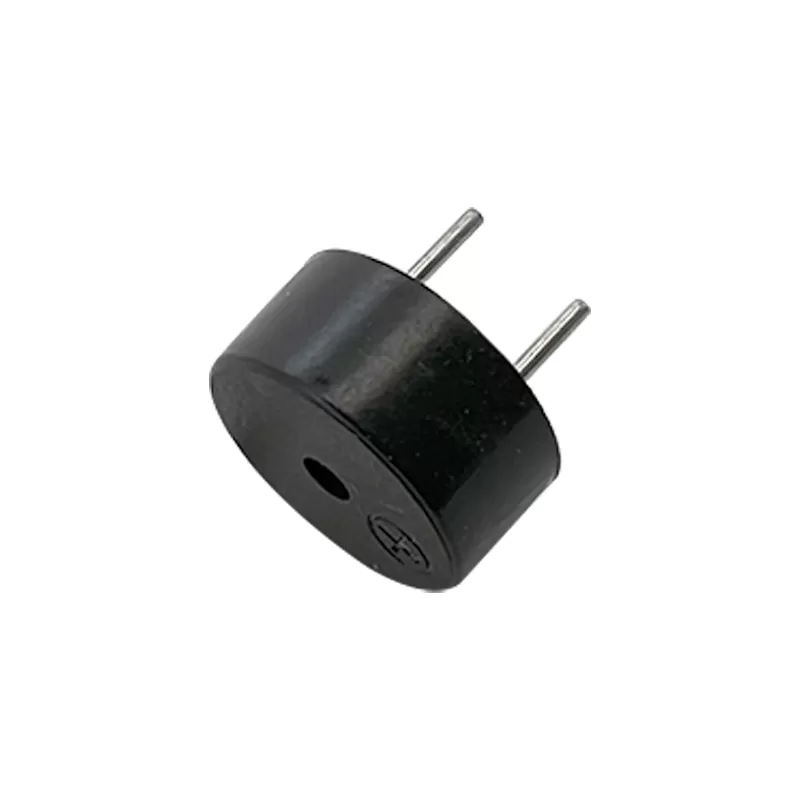

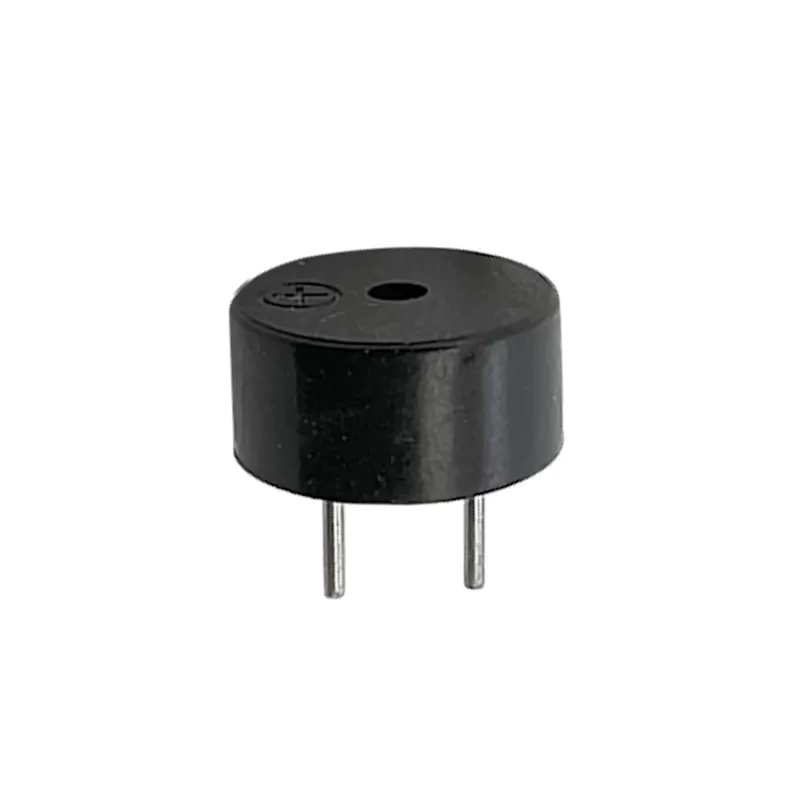

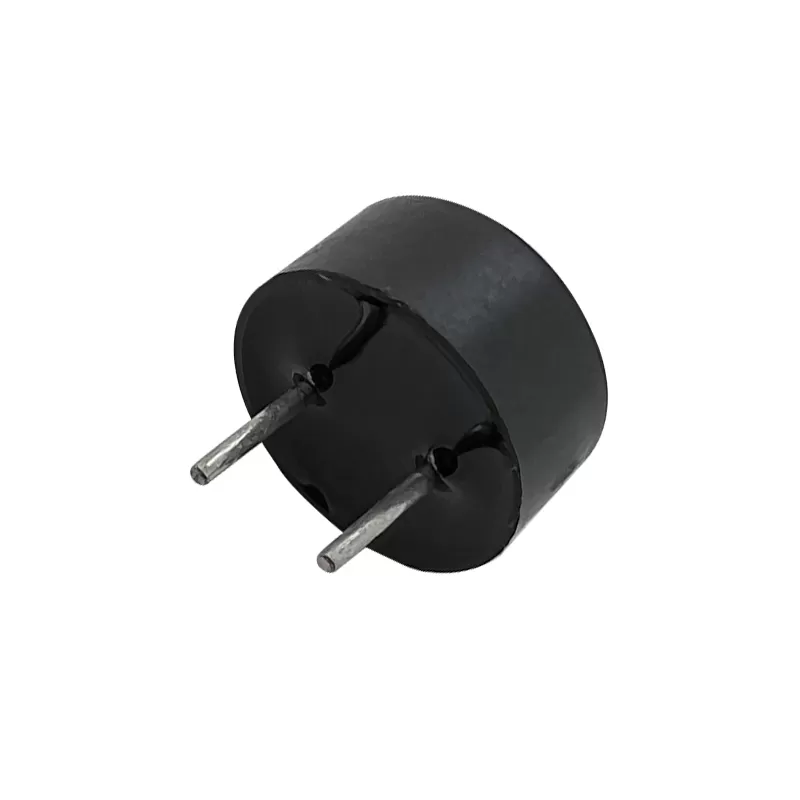

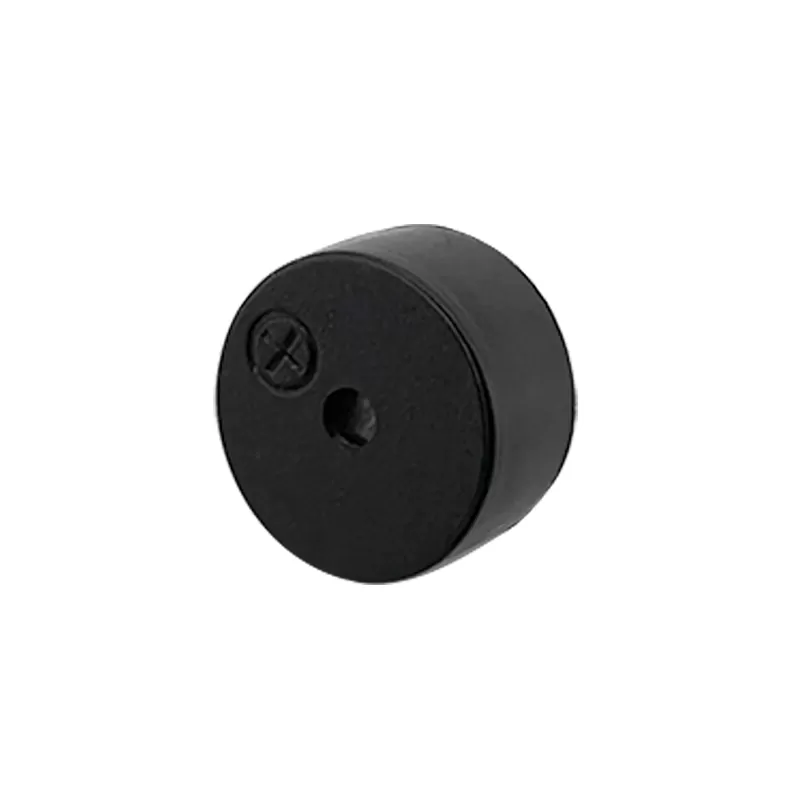

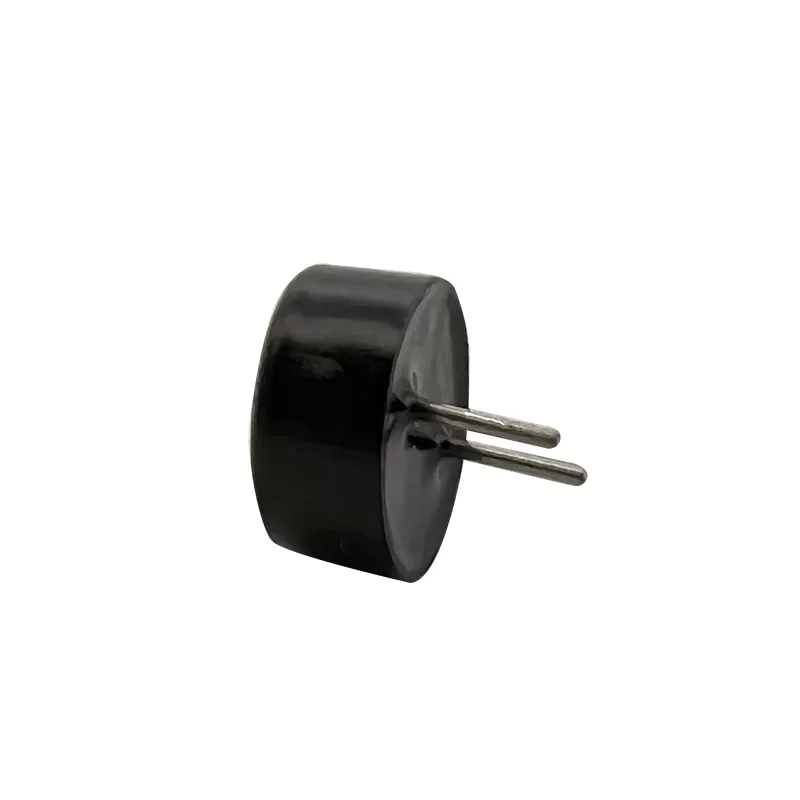

    Piezo Buzzer PCB Mount:RHTCYB-14x08

    Series P/N: RHTCYB-14x08

    RHT provides a wide selection of Internally Driven Piezo Buzzers, offering convenient sound signaling and reliable audible alerts for industrial equipment, security systems, household appliances, communication devices, and various electronic applications.

    With various operating voltages, sound frequencies, sound output levels, package sizes, and mounting options, our products meet different audio signaling requirements and circuit design needs.

    RHT works closely with engineering teams to provide suitable Internally Driven Piezo Buzzer solutions, from sample evaluation and specification confirmation to product integration and technical support.


    Inquire Now
    Share
    Product parameter:

    Features

    -Stable Acoustic Performance: Maintains consistent sound pressure levels and frequency response under various temperature and humidity conditions.

    -Long Operating Life: With no mechanical moving parts, the buzzer provides exceptional durability and long service life.

    -Easy PCB Mounting: Designed for direct soldering onto printed circuit boards, simplifying installation and maintenance.

    -Wide Voltage Range: Compatible with multiple power supply levels, offering flexibility for different design requirements.


    Applications

    1.Consumer Electronics

    2.Industrial Equipment

    3.Security and Alarm Systems

    4.Automotive Devices


    Specifications

    Piezo Buzzer PCB Mount

    Size: Ø14*7.8*7.6mm (Diameter*High*Pitch)


    Order Code                    Operating Voltage Resonant Frequency Max.Rated Current Min.S.P.L.(@10cm) Rated  Voltage

    RHTCYB-14x08-A 3...9VDC 4.0±0.5KHz 8mA 80dB 5VDC

    RHTCYB-14x08-B 1.5...16VDC 4.0±0.5KHz 8mA 85dB 12VDC


    Technical Documents

    Please contact us for more information.
