    INSULATED RING TERMINALS:RHTHY01106

    INSULATED RING TERMINALS:RHTHY01106

    Series P/N: RHTHY01106

    RHT provides a wide selection of Insulated Terminals, supporting reliable wire connections for electrical equipment, industrial control systems, power distribution systems, automotive electronics, and household appliances.

    With various terminal types, wire size compatibility, connection styles, insulation materials, and mounting options, our products meet different wiring, installation, and electrical connection requirements.

    RHT works closely with engineering teams to provide suitable Insulated Terminal solutions, from sample evaluation and design verification to product integration and technical support.



    Inquire Now
    Share
    Product parameter:

    Features

    -Wire Size Compatibility: Insulated ring terminals are available in various sizes to accommodate different wire gauges (AWG) or metric wire sizes. This ensures compatibility with a wide range of wire diameters, providing flexibility in electrical installations.

    -Crimp Type: The metal ring of the terminal is designed for crimping onto the stripped end of a wire. This crimp connection ensures a secure and stable electrical connection, minimizing resistance and ensuring reliable conductivity.

    -Color Coding: Some insulated ring terminals may feature color-coded insulation sleeves. Color coding helps in identifying the wire size or the electrical circuit to which the terminal belongs, facilitating easier installation and maintenance.

    -Temperature Rating: Insulated ring terminals are designed to withstand a range of temperatures depending on the materials used for insulation. This ensures reliable performance in various environmental conditions, including high-temperature applications.


    Applications

    1.HVAC Systems

    2.Renewable Energy Systems

    3.Telecommunications

    4.Home Electrical Wiring


    Specifications

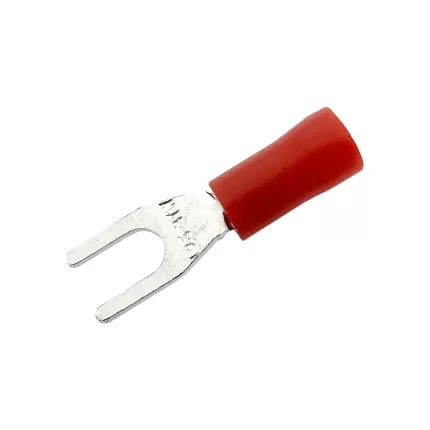

    INSULATED SPADE TERMINALS

    Wire Range 22-16

    Stud Size #6

    Color Red


    Technical Documents

    Please contact us for more information.
