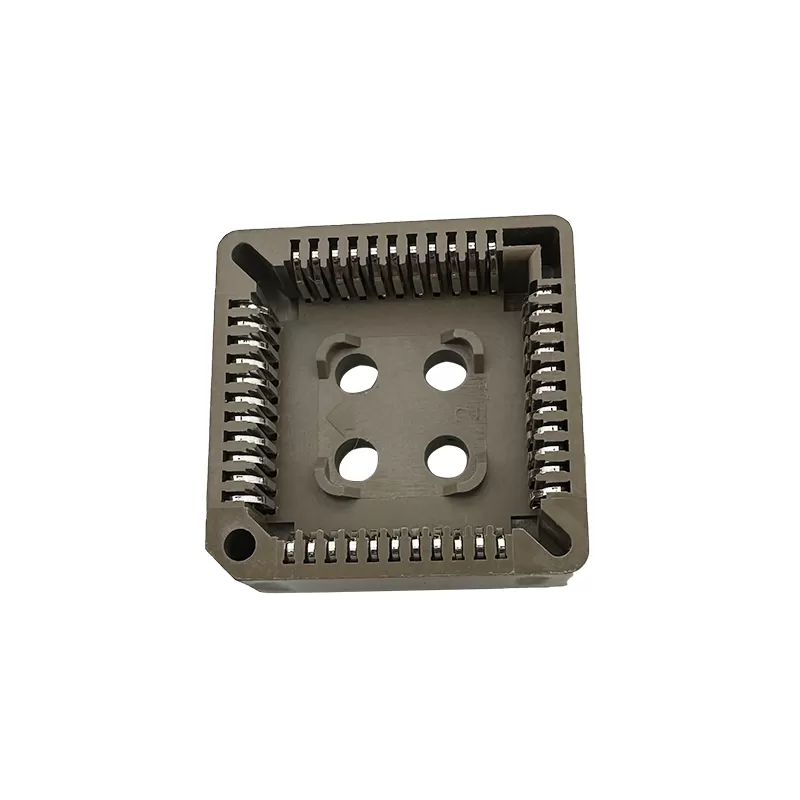

    Dip PLCC Socket Connector & SMT PLCC Socket Connector:RHTAYB10

    Series P/N: RHTAYB10

    RHT provides a wide selection of IC Sockets, PLCC Sockets, and ZIF Socket Connectors, supporting reliable connections and convenient IC installation in electronic systems and circuit board applications.

    With various pin configurations, contact arrangements, mounting options, and socket designs, our products can accommodate different component specifications, installation requirements, and application needs.

    As a connector solutions partner, RHT works closely with engineering teams to understand technical requirements, discuss application needs, and provide suitable IC socket solutions from sample evaluation and design verification to product integration and project implementation.


    Inquire Now
    Share
    Product parameter:

    Features

    -Plating: Gold or tin over nickel for corrosion resistance and good conductivity

    -Insertion/Extraction: Supports high insertion cycles; ICs can be removed using a PLCC extraction tool

    -Pitch: Lead pitch typically 1.27mm (0.05 inch), with socket contacts spaced accordingly

    -Low Profile Design: Optimized for compact, high-density PCBs


    Applications

    1.Prototyping and Development Boards

    2.Repairable Electronics

    3.Programming & Testing Equipment

    4.Educational and Training Kits


    Specifications

    1.27mm Pitch PLCC Socket Connector

    Order Information

    RHTAYB10-D-XX-A

    D=DIP  S=SMT

    XX-No.of 20~84pins

    Color: A=Brown  B=Black

    Material:

    Housing: PPS UL94V-0

    Contacts: Phosphor Bronze

    Plating: Tin plated 120u" over 80u" nickel

    Electrical Characteristics:

    Current Rating: 3.0 AMP

    Dielectric Withstand Voltage:1000V AC

    Insulator Resistance: 1000M Ohm min.

    Contact Resistance: 20m Ohm max

    Operating Temperature: -40ºC~+110ºC
