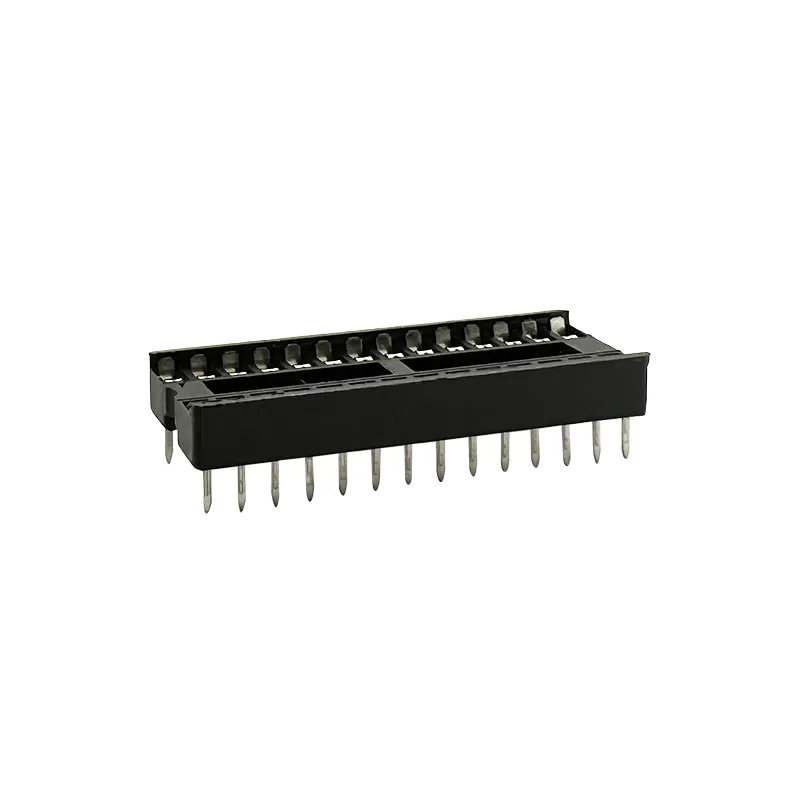

1.778mm Pitch IC Socket Connector:RHTAYF16B

Series P/N:RHTAYF16B

RHT provides a wide selection of IC Sockets, PLCC Sockets, and ZIF Socket Connectors, supporting reliable connections and convenient IC installation in electronic systems and circuit board applications.

With various pin configurations, contact arrangements, mounting options, and socket designs, our products can accommodate different component specifications, installation requirements, and application needs.

As a connector solutions partner, RHT works closely with engineering teams to understand technical requirements, discuss application needs, and provide suitable IC socket solutions from sample evaluation and design verification to product integration and project implementation.

2D(PDF)Drawing

3D(IGS / STP)Drawing

Product parameter:

Features

-Pitch of 1.778mm: The 1.778mm pitch is standard for many ICs, especially for small to medium-sized integrated circuits. This ensures compatibility with ICs that have matching pin configurations, enabling easy mounting and stable electrical connections.

-Socketed Connection: The IC socket design allows easy insertion and removal of the IC without soldering. This feature is useful for prototypes, testing, and repairs, as it enables users to swap ICs without the need for desoldering.

-Mechanical Strength: The housing and contacts are made from durable materials (such as thermoplastic or nylon), ensuring mechanical stability and preventing damage to the IC during insertion or removal.

-Space Efficiency: The 1.778mm pitch ensures that the connector is compact and can fit in spaces where size constraints are important. It’s especially useful in high-density electronic circuits where multiple components must fit within a small area.

Applications

1.Consumer Electronics

2.Computers and Laptops

3.Automotive Electronics

4.Industrial Equipment

Specifications

1.778mm Pitch IC Socket Connector With Dip Type

Order Information

RHTAYF16B-XX-1

XX-No.of 16~64pin

D Size:1=10.16mm 2=15.24mm 3=19.05mm

Material:
