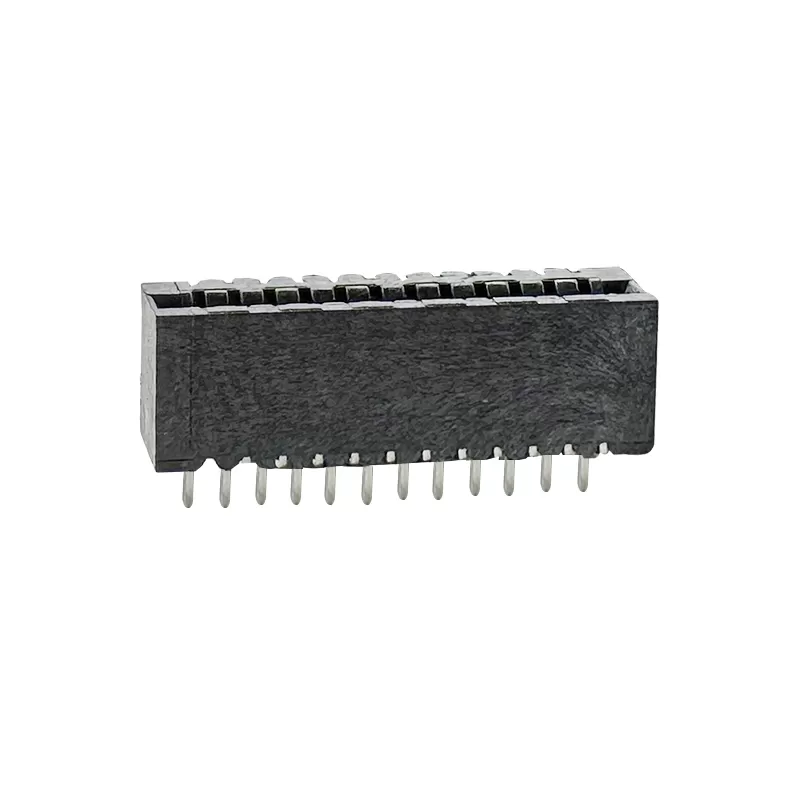

    1.25mm SMT Dual Contact NO-ZIF H3.5mm FFC/FPC Connectors:RHTAY20F

    Series P/N:RHTAY20F

    RHT provides a wide selection of FFC/FPC Connectors, helping engineers develop reliable and efficient flexible connection solutions.
    With various pitches, contact configurations, mounting options, and specifications, our connectors can meet different design requirements and application challenges.
    As an FFC/FPC connector solutions partner, RHT’s engineering team works closely with design teams to understand technical requirements, discuss development needs, and provide suitable solutions from sample evaluation and prototype validation to project development and mass production.

    Inquire Now
    Share
    Product parameter:

    Features

    -The 1.25mm pitch refers to the distance between adjacent pins or contacts in the connector. This small pitch allows for high-density connections, making it ideal for compact devices that require a small form factor while maintaining secure electrical connections.

    -This connector is designed for surface mount directly onto a PCB (Printed Circuit Board). Surface-mount technology allows for easier automation in manufacturing, contributing to more compact designs with high reliability and lower assembly costs.

    -Dual contacts enhance durability by ensuring that the connection is maintained even under mechanical stress or movement.

    -It ensures a secure, reliable connection for data, power, or signal transmission in high-density applications.


    Applications

    1. Mobile Devices

    2. Consumer Electronics

    3. Laptops and Portable Computers

    4. Automotive Electronics


    Specifications

    1.25mm SMT Dual Contact NO-ZIF H3.5mm FFC/FPC Connectors

    Order Information

    RHTAY20F- XX -T-R

    XX-No.of 04 ~ 33pin

    T-SMD Pin

    R- Reel Packing    T-Tube Packing

    Material:

    Housing: LCP UL94V-0

    Contact:  Phosphor Bronze

    Plating: Tin Plated Over Nickel

    Electrical Characteristics:

    Voltage rating: 50 VAC

    Current rating: 0.5 AMP

    Withstandingf Voltage: 500 V

    Insulation resistance: 800M ohm Min

    Contact resistance: 40m ohm. max.

    Temperature range: -40℃ To +105℃


    Technical Documents

    Please contact us for more information.
