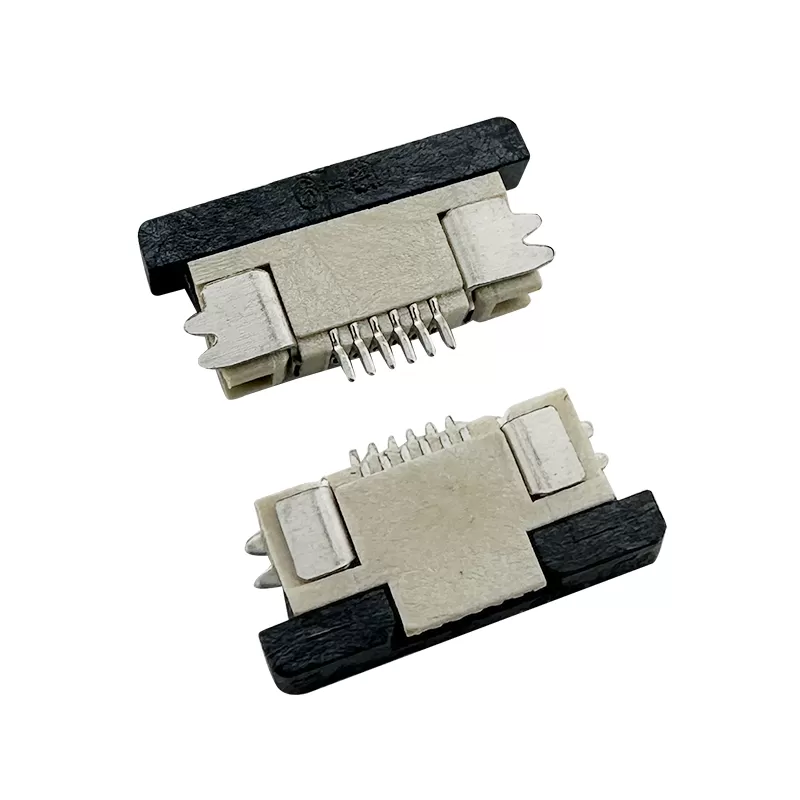

    0.5mm ZIF SMT H2.0mm bottom/upper contacts FPC/FFC connector :RHTAY242-2.0

    Series P/N:RHTAY242-2.0

    RHT provides a wide selection of FFC/FPC Connectors, helping engineers develop reliable and efficient flexible connection solutions.
    With various pitches, contact configurations, mounting options, and specifications, our connectors can meet different design requirements and application challenges.
    As an FFC/FPC connector solutions partner, RHT’s engineering team works closely with design teams to understand technical requirements, discuss development needs, and provide suitable solutions from sample evaluation and prototype validation to project development and mass production.

    Inquire Now
    Share
    Product parameter:

    Features

    -Connector Type: These connectors are sockets designed for 0.5mm pitch flexible printed circuits (FPC) and flexible flat cables (FFC). They provide a reliable interface for connecting flexible circuits to printed circuit boards (PCBs).

    -Pitch and Size: The connectors have a pitch (distance between adjacent contacts) of 0.5mm, suitable for applications requiring fine pitch connections. The overall height (H) is approximately 2.0mm, providing sufficient clearance for the flexible circuits and ensuring compatibility with standard PCB layouts.

    -ZIF Mechanism: These connectors feature a Zero Insertion Force (ZIF) mechanism, which allows for insertion and removal of the flexible circuits without applying significant force. This minimizes the risk of damaging the circuits during assembly or maintenance, making them ideal for applications where frequent connection/disconnection is necessary.

    -Bottom/Upper Contact Design: These connectors can have both bottom and upper contacts, where the contact points are located on both the underside and top side of the connector. This dual contact design facilitates versatile connectivity options, enabling direct contact with the PCB pads on either side for optimized electrical performance and reliable signal transmission.


    Applications

    1.  Industrial Equipment

    2 .Telecommunications

    3. LED Lighting

    4. Testing and Measurement Equipment


    Specifications

    0.5mm ZIF SMT H2.0mm bottom/upper contacts FPC/FFC connector

    Order Information

    RHTAY242-2.0-XX-T-U-R

    XX-No.of 06 ~ 60pin

    T-SMT Pin

    U-Upper Contact  L-Lower Contact

    R-Reel   T-Tubes

    Material:

    Housing: LCP UL94V-0

    Plug spring: phosphor bronze, Tin Plated / Gold Plated

    Soldering lug

    Electrical Characteristics:

    Rated current:0.4A

    Rated voltage:50V

    Withstand voltage:200V

    Contact resistance:≤20mΩ

    Insulation resistance:500MΩ

    Operating Temperature: -20℃ To +85℃

    Note:

    When the PIN number is 30PIN or less, the lock is made of PA46.

    When the PIN number is above 30PIN, the lock is made of LCP
