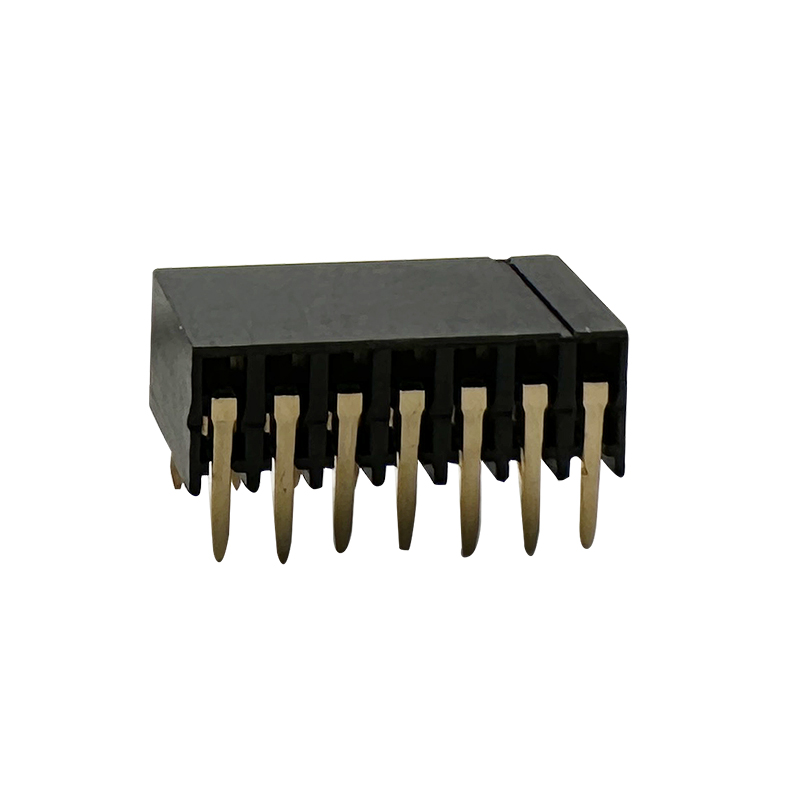

2.54mm Pitch Female Header Connector Height 3.4mm & 5.9mm Side Entry:RHTAY08A-5.9&RHTAY08A-8.1

Features

-Female Socket Connector: Designed to mate with 2.54mm pitch male headers.

-Side Entry Configuration: The pins enter the connector from the side, providing more flexibility in layout and PCB design.

-Single-Row or Dual-Row Versions: Available in both single and dual-row versions, providing varying pin counts (e.g., 4, 6, 8, 10, 20, etc.).

-Current Rating: Typically 1A – 3A per pin, depending on the material and plating.

Applications

1. PCB (Printed Circuit Board) Connections

2. Interfacing with Cables

3. Signal Transfer and Communication

4. Consumer Electronics

Specifications

Order Information

RHTAY08A-5.9-1-XX-R-B

1-Single layer   2-Double layer

XX-Total pin number  (No.of 1~80pin)

R-Right Angle Pin   T-SMT Pin

Material:A=PBT  B=PA6T  C=LCP

Material:

Housing: 30% Glass filled PBT / PA6T UL94V-0

Contacts: Brass or Phosphor Bronze

Plating: Au or Sn over 50u" Ni

Electrical Characteristics:

Current Rating: 3 AMP

Insulator Resistance: 1000M Ohm min. at DC 1000V

Contact Resistance: 20m Ohm max.

Operating Temperature: -40ºC~+105ºC

Technical Documents

Please contact us for more information.
