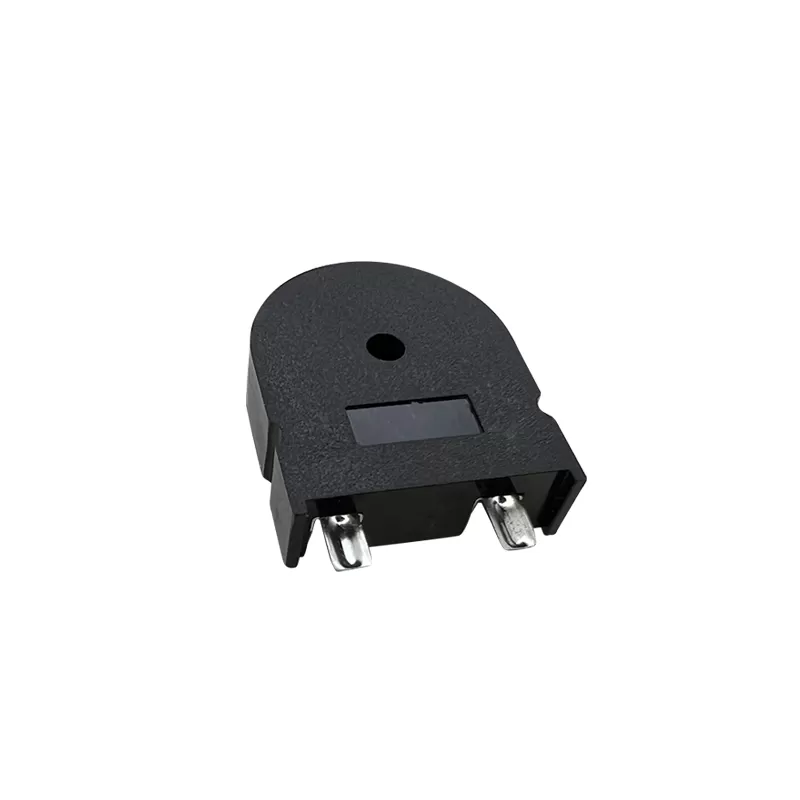

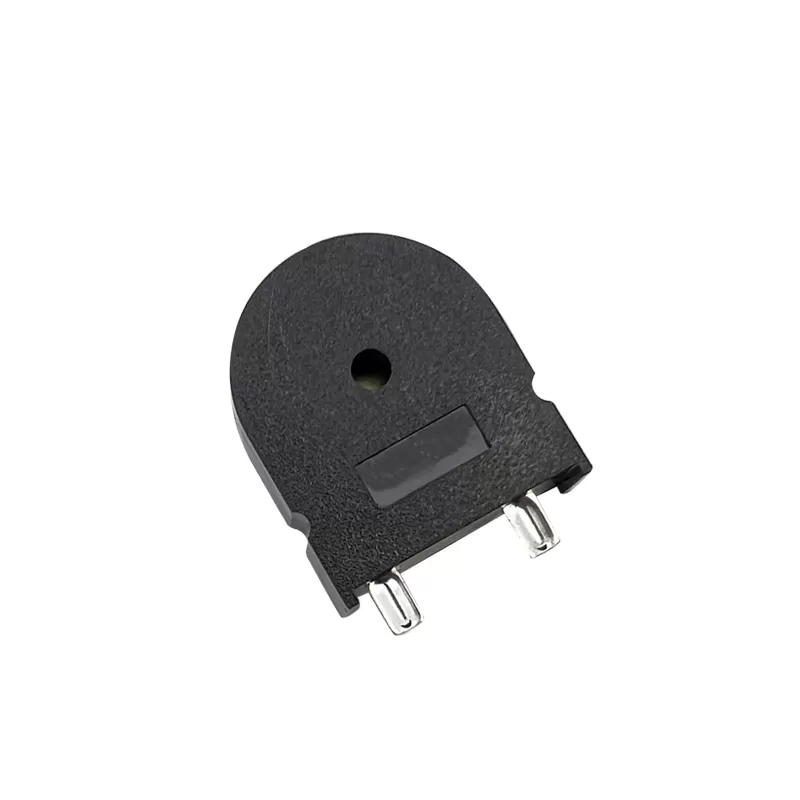

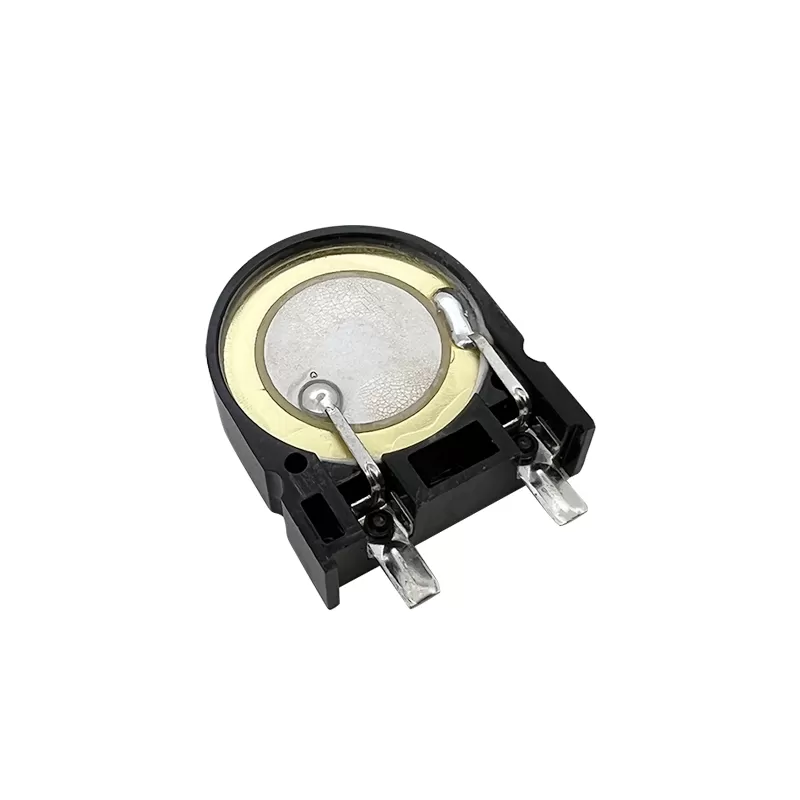

Piezo Transducer Buzzer:RHTCYT-22x07
Externally driven piezo buzzer is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of Externally driven piezo buzzer . Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.
Features
-Compact and Lightweight Design: Measures 22x7mm, easy to integrate into limited-space electronic devices.
-High Sound Output: Delivers clear, loud tones for alarms, notifications, and signaling applications.
-Wide Operating Voltage Range: Supports flexible voltage inputs suitable for various circuits.
-Low Power Consumption: Efficient energy usage, ideal for battery-operated devices.
Applications
1.Automotive Electronics
2.Household Appliances
3.Industrial Equipment
4.Security Systems
Specifications
Piezo Transducer Buzzer
Size: Ø22*27*12.5mm (Diameter*High*Pitch)
Order Code Operating Voltage Resonant Frequency Max.Rated Current Min.S.P.L.（@10cm） Rated Voltage
RHTCYT-22x07-A 1...30Vp-p 4.0±0.5KHz 1.2mA 70dB 3Vp-p
RHTCYT-22x07-B 1...30Vp-p 4.0±0.5KHz 4mA 82dB 9Vp-p
Technical Documents
Please contact us for more information.
