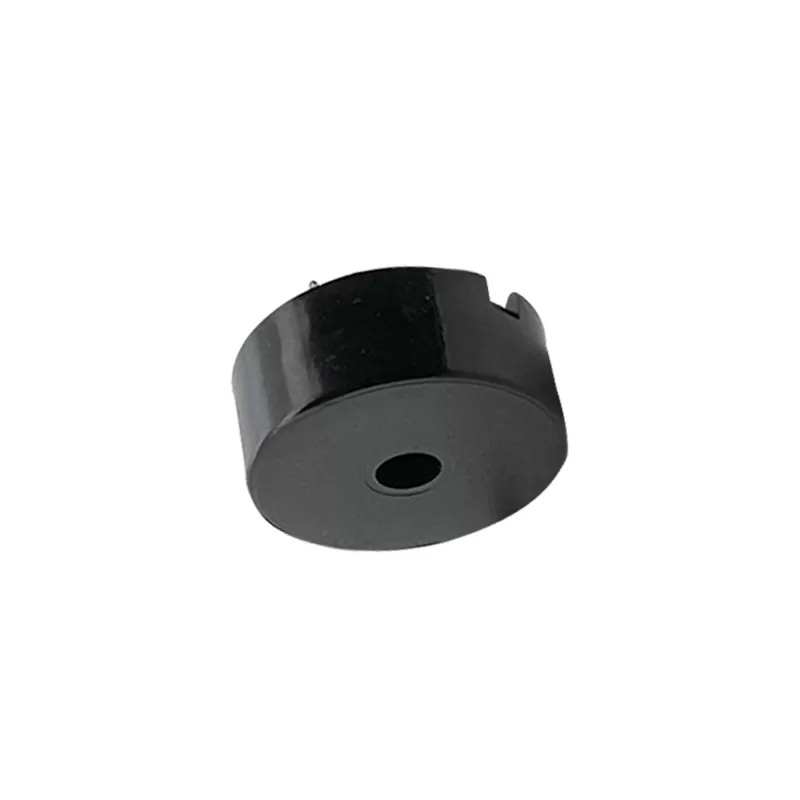

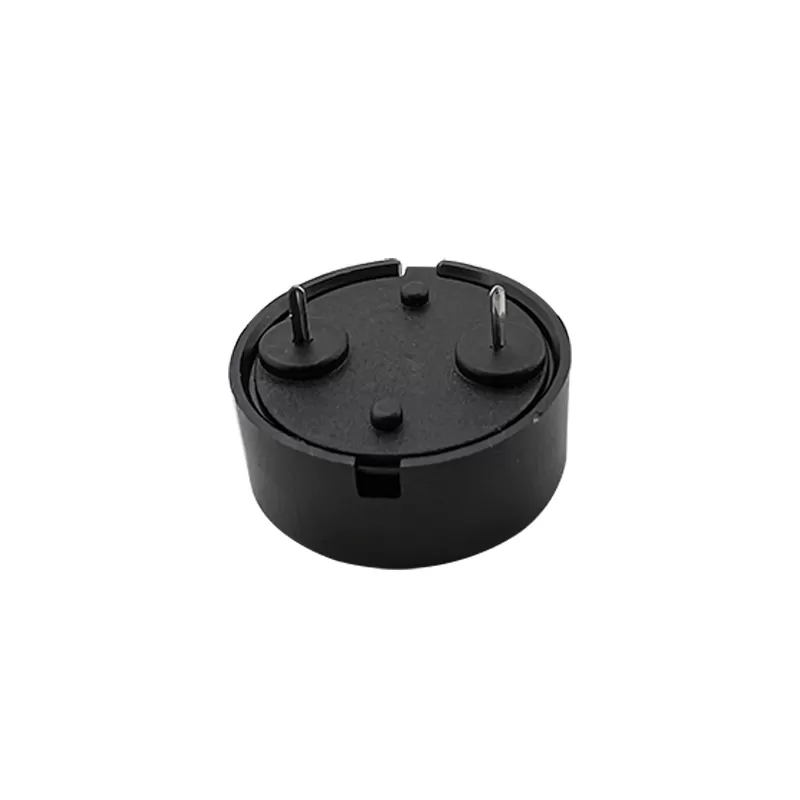

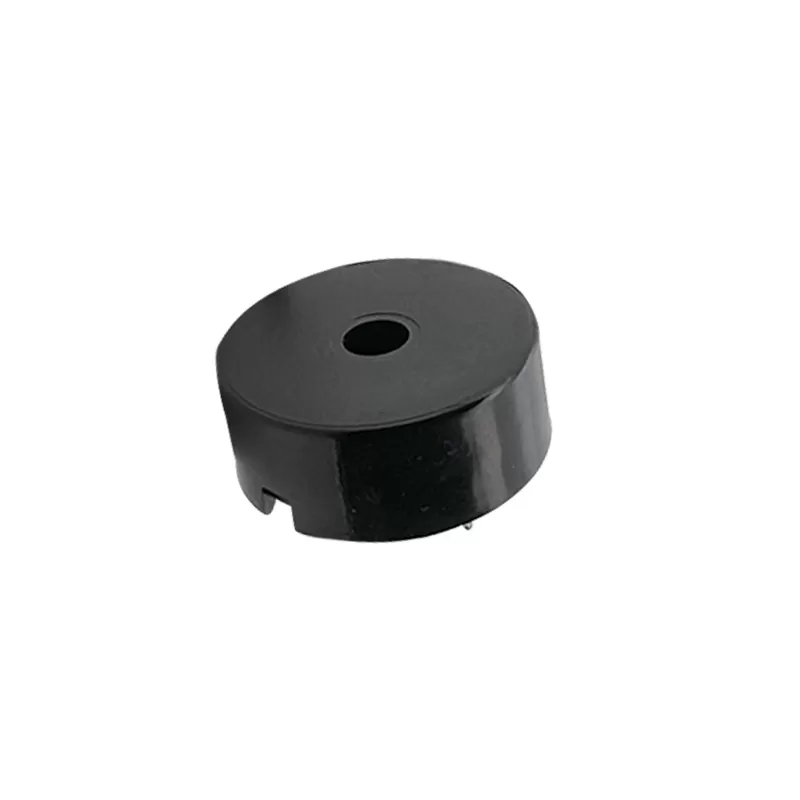

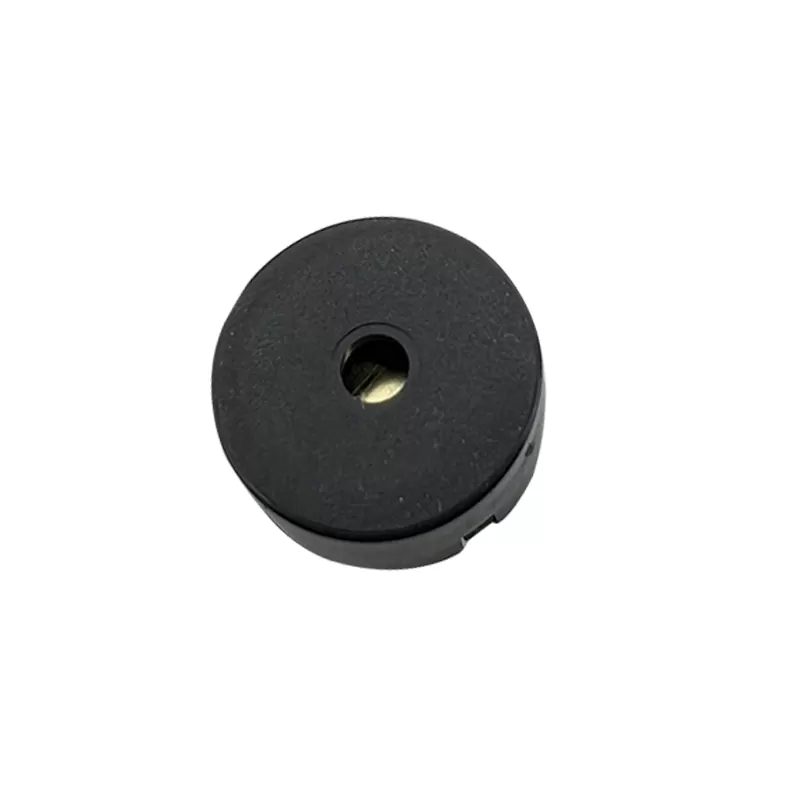

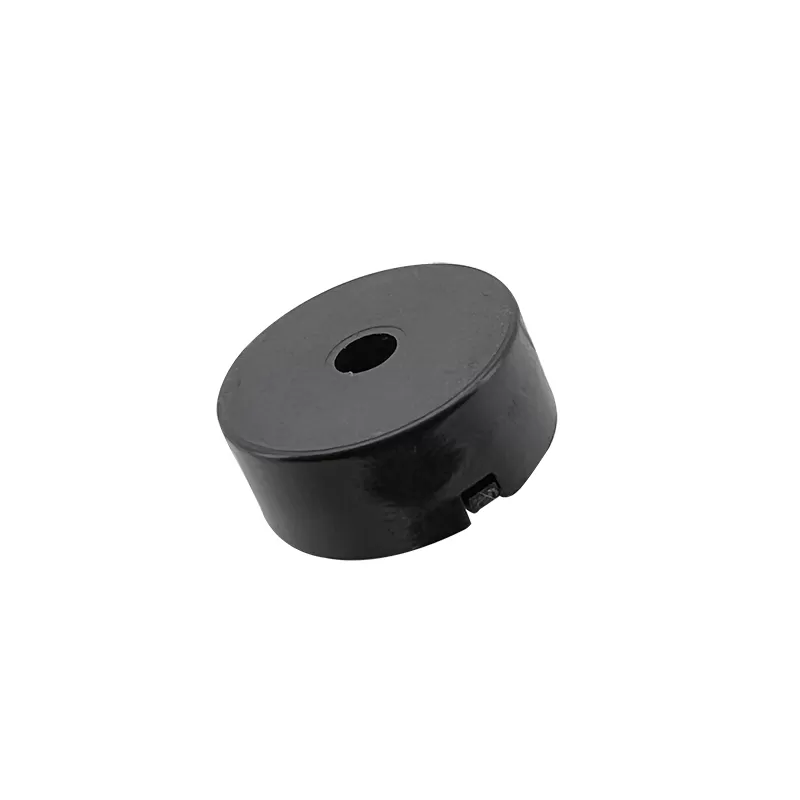

Piezo Transducer Buzzer:RHTCYT-17x08

Series P/N:RHTCYT-17x08

Externally driven piezo buzzer is available at RHT.

We have been selling on the markets many years and get good feedback.

Please view our large selection of Externally driven piezo buzzer . Any questions,Please contact our sales team to get any service support.

If you need any samples,quick L/T, and etc, we will try our best to support.

3D(IGS / STP)Drawing

Product parameter:

Features

-Compact and lightweight: Diameter ranges from 3mm to 20mm, thickness from 0.3mm to 1mm. It is easy to integrate and does not take up space.

-Low power consumption: Current consumption is usually <20mA (maximum ≤100mA), suitable for battery-powered devices.

-Fast response: Based on the inverse piezoelectric effect, it can quickly vibrate and produce sound after being energized, meeting the demand for instant prompts.

-Controllable frequency: Frequency can be adjusted via the driving signal (covering the human audible range of 20Hz-20kHz), with high sound efficiency at resonance.

Applications

1.Industrial Equipment

2.Automotive Electronics

3.Security Equipment

4.Medical Equipment

Specifications

Piezo Transducer Buzzer

Size: Ø17*7*10mm (Diameter*High*Pitch)

Order Code Operating Voltage Resonant Frequency Max.Rated Current Min.S.P.L.（@10cm） Rated Voltage

RHTCYT-17x08-A 1...30Vp-p 4.0±0.5KHz 1mA 85dB 5Vp-p

RHTCYT-17x08-B 1...30Vp-p 4.0±0.5KHz 2.5mA 80dB 9Vp-p
