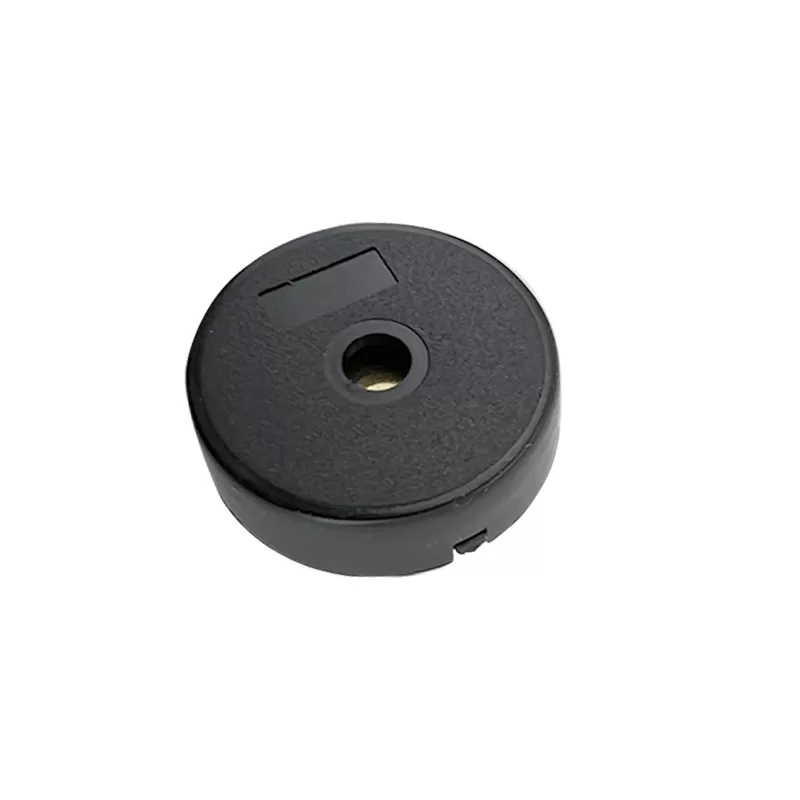

Piezo Transducer Buzzer ：RHTCYT-22x08
Externally driven piezo buzzer is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of Externally driven piezo buzzer . Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.
Features
-High Sound Output: Produces strong and clear audio signals suitable for alarms and alert devices.
-Low Power Consumption: Piezoelectric structure ensures energy-efficient performance ideal for battery-powered products.
-Compact 22x08mm Design: Slim and lightweight, enabling easy installation in space-limited devices.
-Durable Construction: Designed to withstand vibration, environmental changes, and long-term operation.
Applications
1.Medical Devices
2.Smart Home Devices
3.IoT Equipment
4.Control Panels
Specifications
Piezo Transducer Buzzer
Size: Ø22*8*10mm (Diameter*High*Pitch)
Order Code Operating Voltage Resonant Frequency Max.Rated Current Min.S.P.L.（@10cm） Rated Voltage
RHTCYT-22*08-A 1...30Vp-p 4.0±0.5KHz 2mA 75dB 3Vp-p
RHTCYT-22*08-B 1...30Vp-p 4.0±0.5KHz 3mA 80dB 9Vp-p
Technical Documents
Please contact us for more information.
