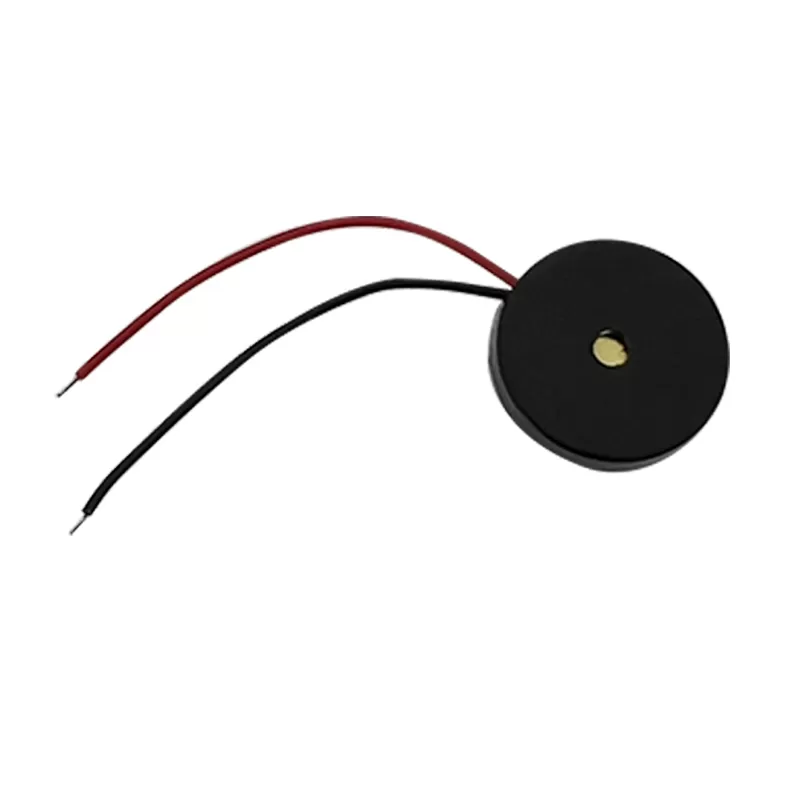

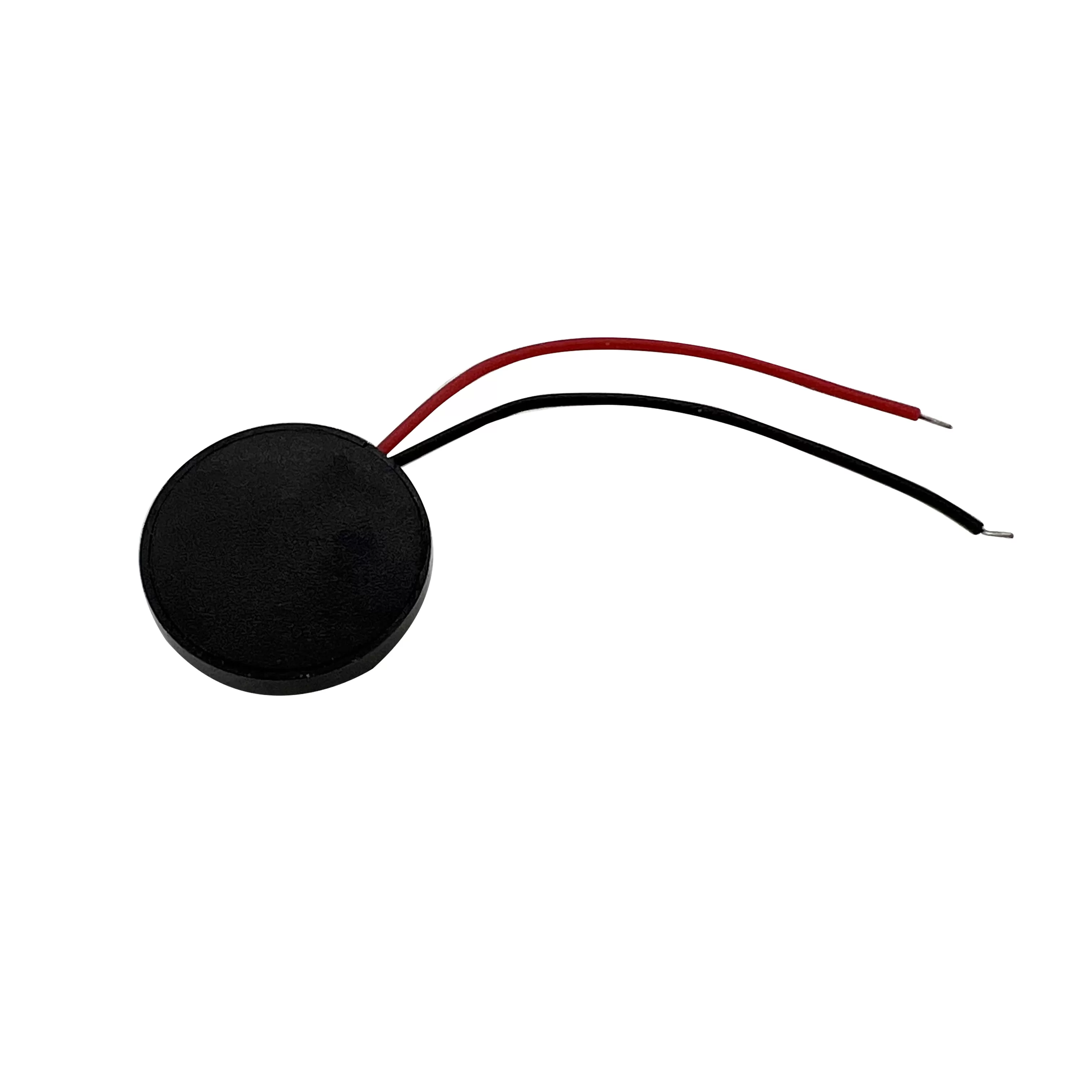

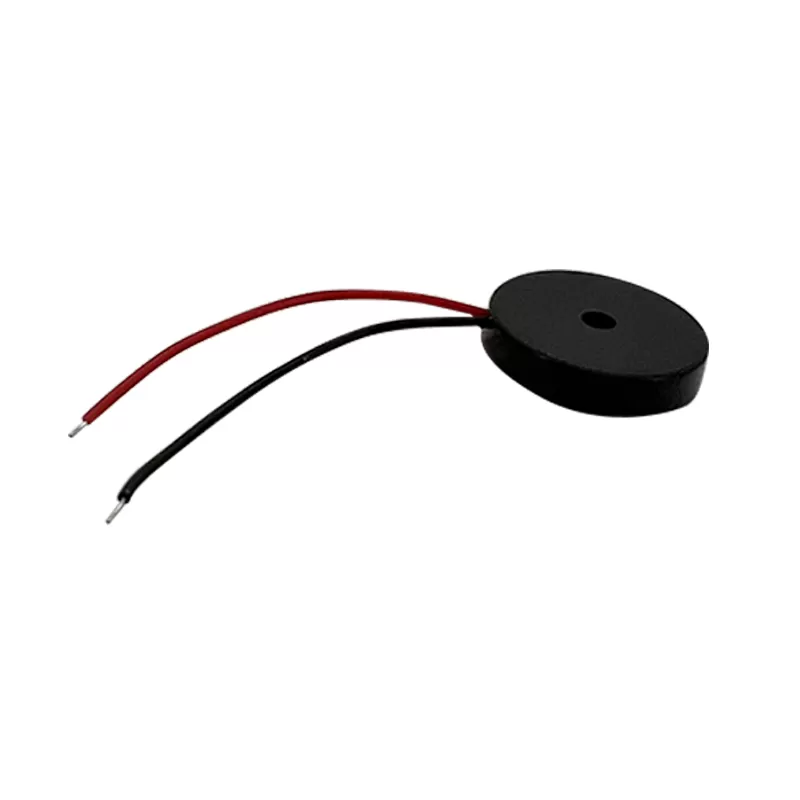

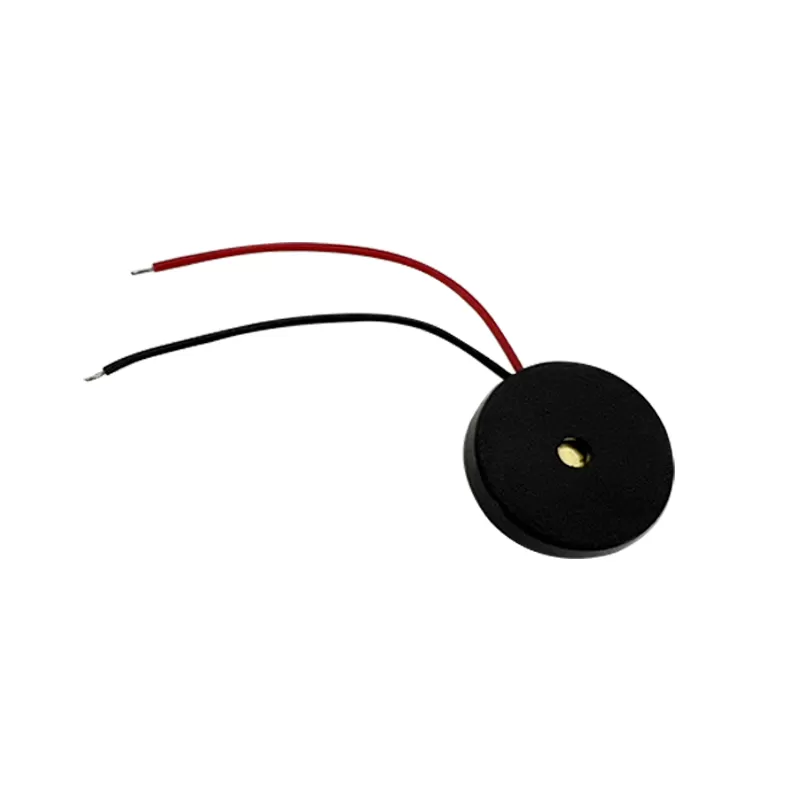

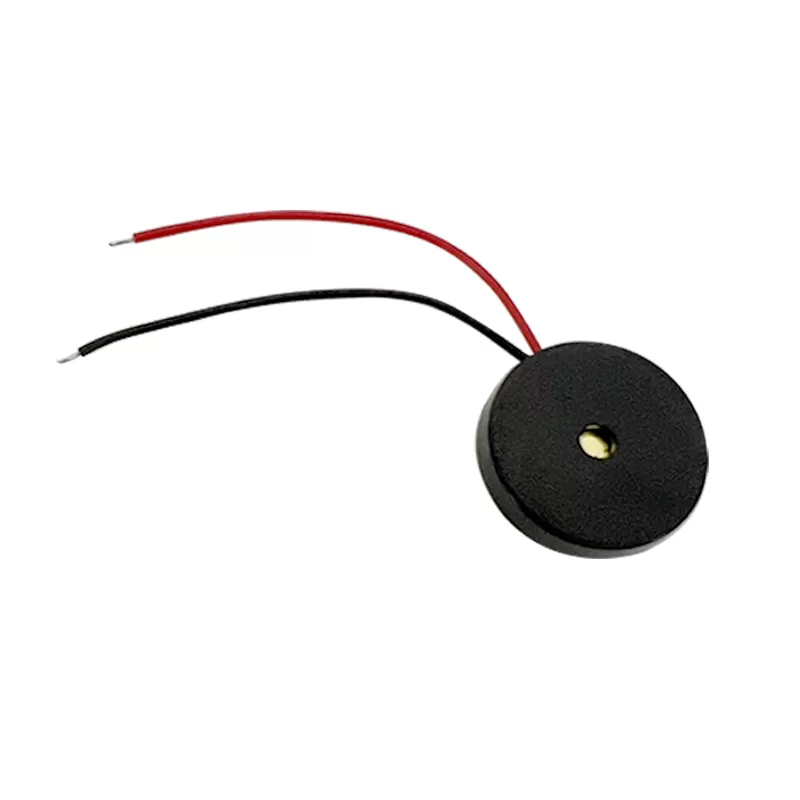

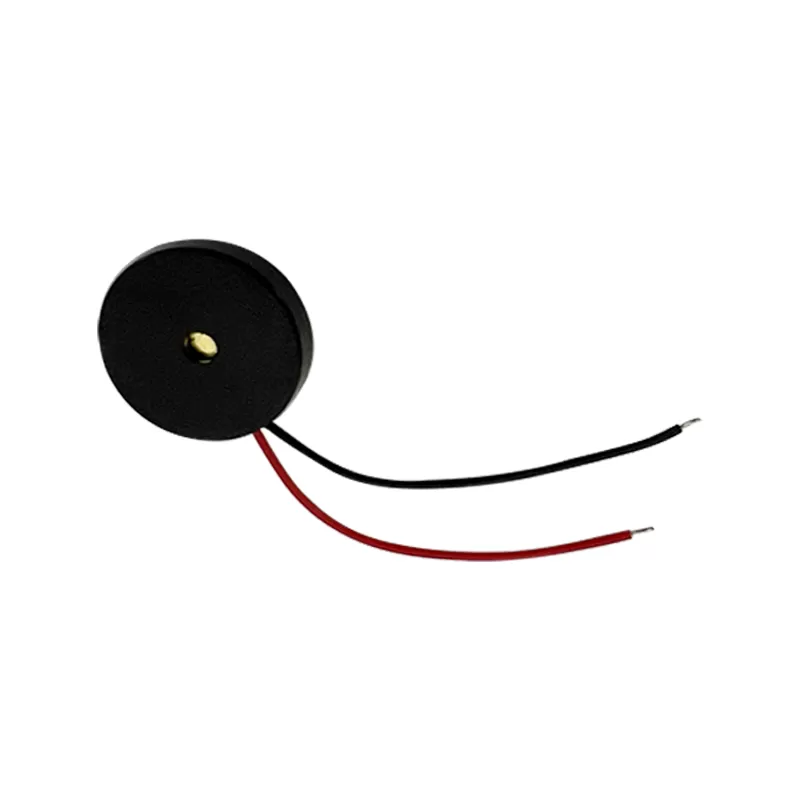

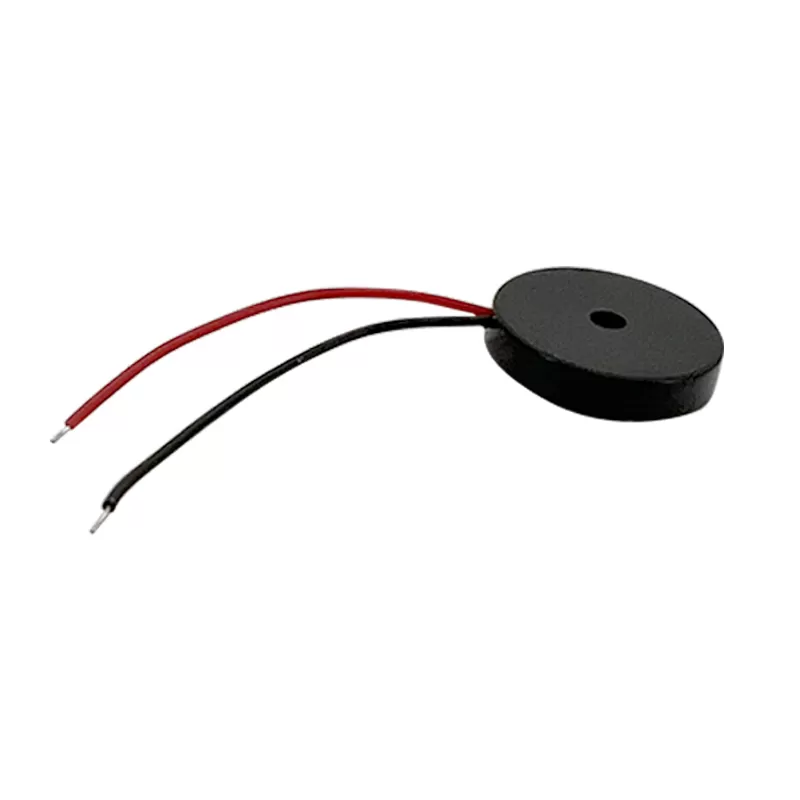

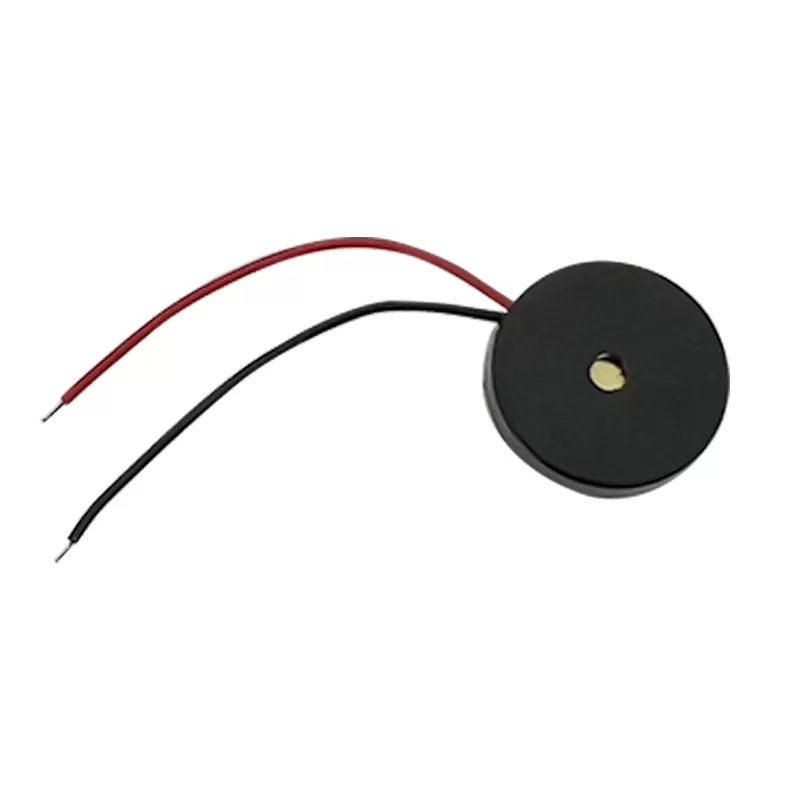

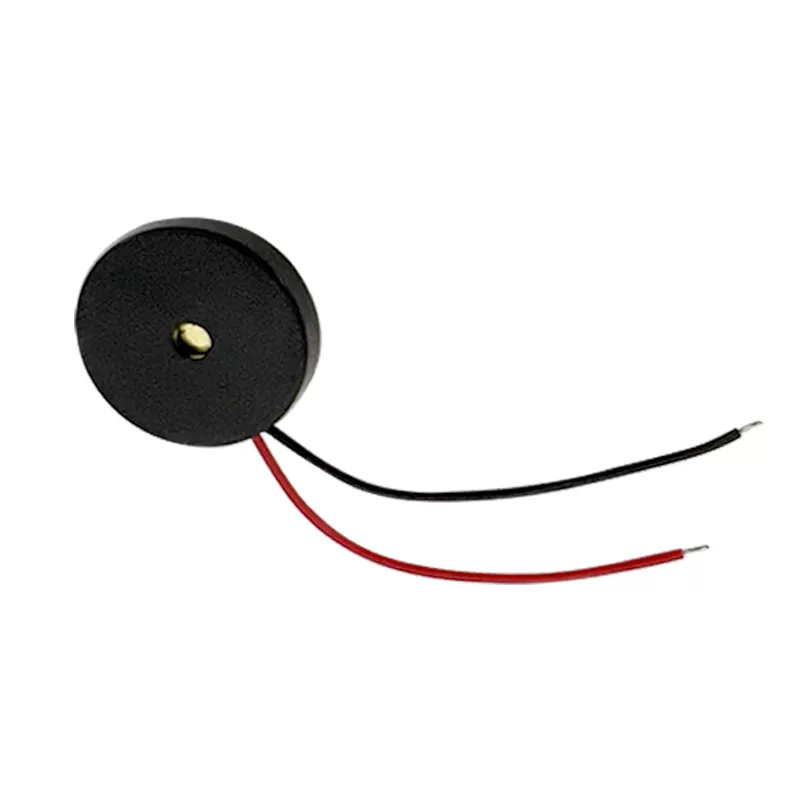

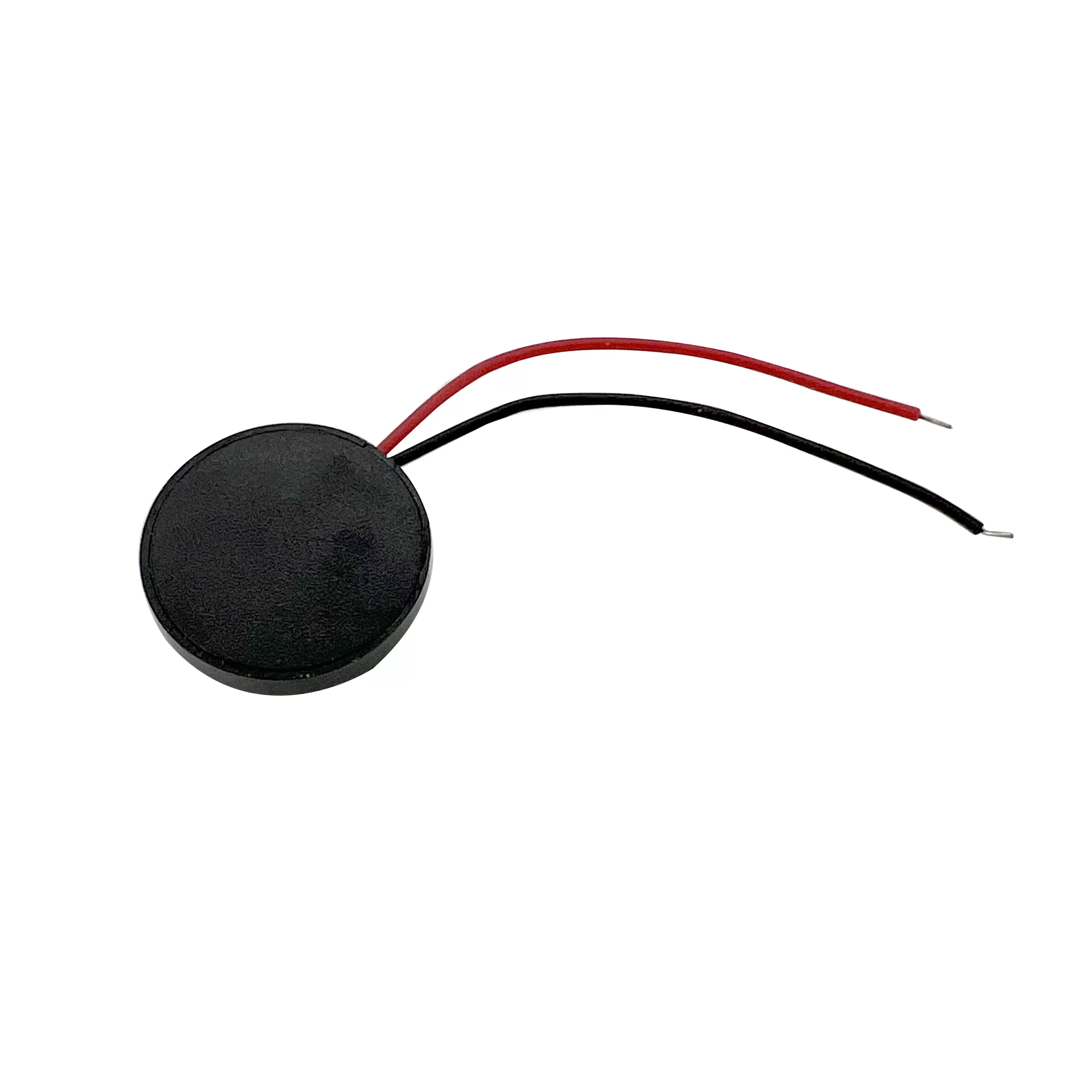

    Externally driven piezo buzzer:RHTCYPT-13x2.5

    Series P/N:RHTCYPT-13x2.5

    RHT provides a wide selection of Externally Driven Piezo Buzzers, offering reliable sound signaling and clear audible alerts for industrial equipment, security systems, household appliances, communication devices, and various electronic applications.

    With various operating voltages, resonant frequencies, sound output levels, sizes, and mounting options, our products meet different audio signaling requirements and circuit design needs.

    RHT works closely with engineering teams to provide suitable Externally Driven Piezo Buzzer solutions, from sample evaluation and specification confirmation to product integration and technical support.


    Inquire Now
    Share
    Product parameter:

    Features

    -High Sound Output:Delivers clear, sharp, and attention-grabbing alerts suitable for alarms, notifications, and warning systems.

    -Low Power Consumption:Efficient piezoelectric technology minimizes energy usage while maintaining reliable performance.

    -Durable Construction:Robust housing and materials ensure long service life and stable operation under vibration, temperature variations, and industrial environments.

    -Wide Operating Voltage:Compatible with various voltage ranges for flexible application in different electronic systems.


    Applications

    1.Control Panels

    2.Electronic Devices

    3.Safety Equipment

    4.Communication Devices


    Specifications

    Piezo Transducer Buzzer

    Size: Ø13*2.5mm (Diameter*High)


    Order Code                    Operating Voltage Resonant Frequency Max.Rated Current Min.S.P.L.(@10cm) Rated  Voltage

    RHTCYPT-13x2.5-A 3...20Vp-p 3.4±0.5KHz 2mA 70dB 5Vp-p

    RHTCYPT-13x2.5-B 3...20Vp-p 3.4±0.5KHz 4mA 80dB 10Vp-p


    Technical Documents

    Please contact us for more information.
