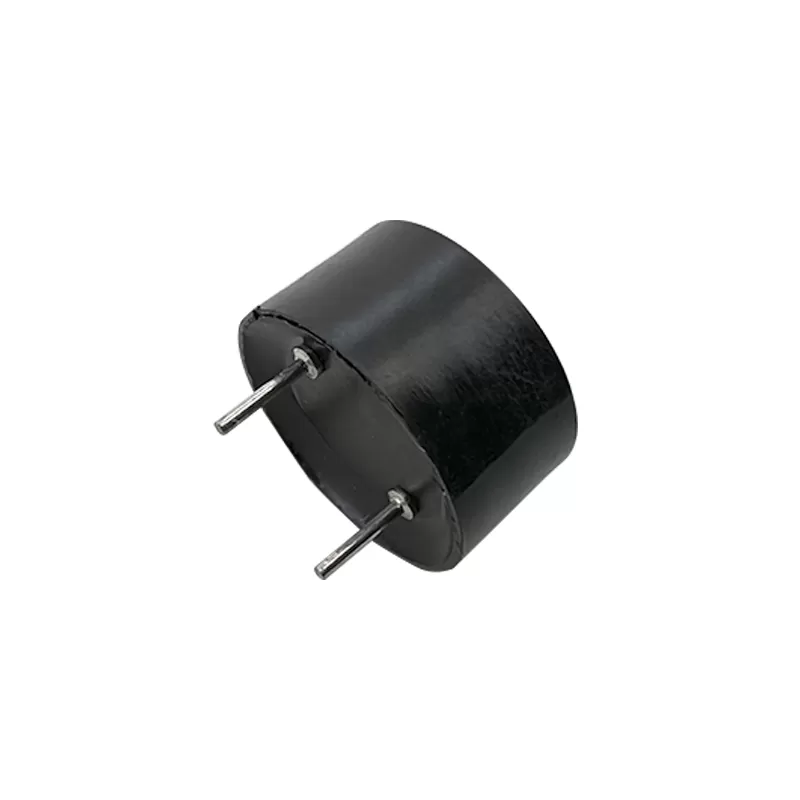

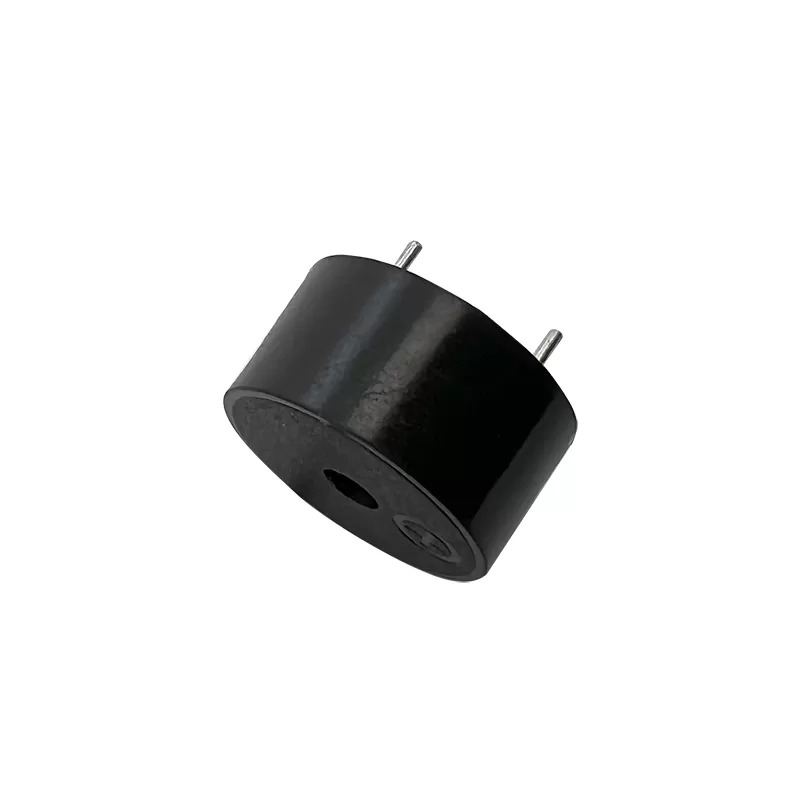

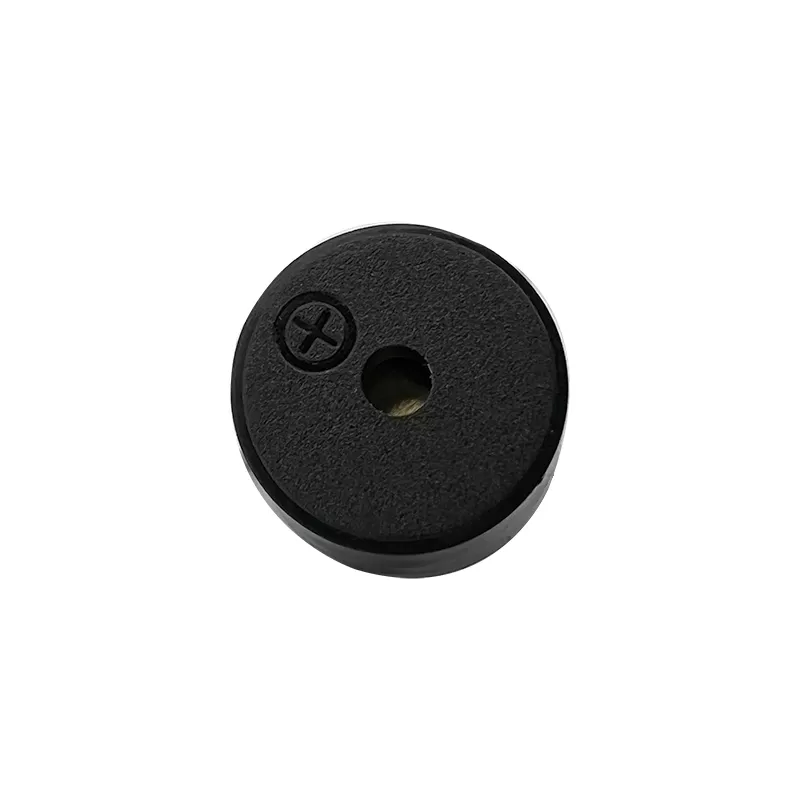

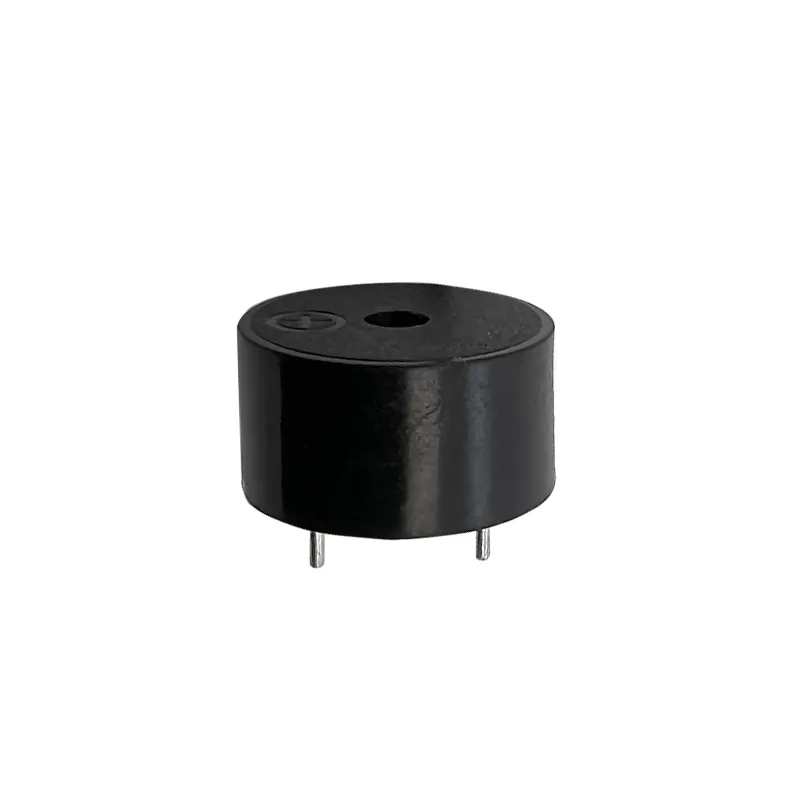

Piezo Transducer Buzzer：RHTCYT-12x06
Externally driven magnetic buzzers is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of Externally driven magnetic buzzers. Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.
Features
-Low Power Consumption: Efficient piezoelectric design enables high sound output with minimal energy use.
-Compact Size: Small and lightweight structure allows easy integration into compact electronic devices.
-High Sound Pressure Level (SPL): Produces loud and clear tones suitable for alarms, indicators, and notifications.
-Wide Operating Voltage Range: Compatible with various circuit designs and power supplies.
Applications
1.Medical Instruments
2.Home Appliances
3.Communication Devices
4.Office Equipment
Specifications
Piezo Transducer Buzzer
Size: Ø12.5*6.0*5.0mm (Diameter*High*Pitch)
Order Code Max.Allowable Voltage Resonant Frequency Max.Rated Current Min.S.P.L.（@10cm） Rated Voltage
RHTCYT-12x06-A 30Vp-p 4.0±0.5KHz 3mA 75dB 5Vp-p
RHTCYT-12x06-B 30Vp-p 4.0±0.5KHz 6mA 80dB 12Vp-p
Technical Documents
Please contact us for more information.Features
