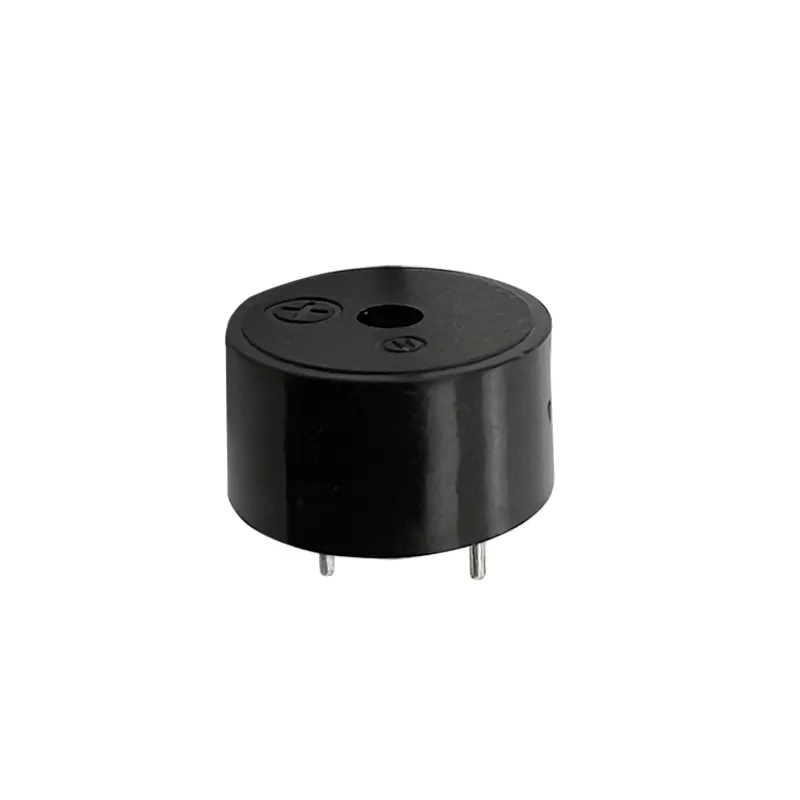

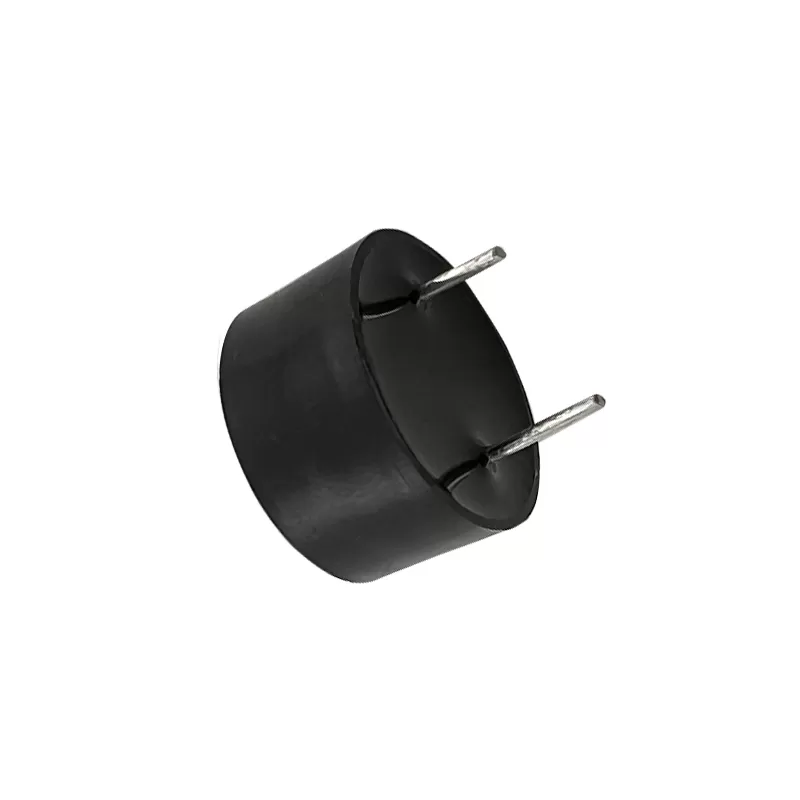

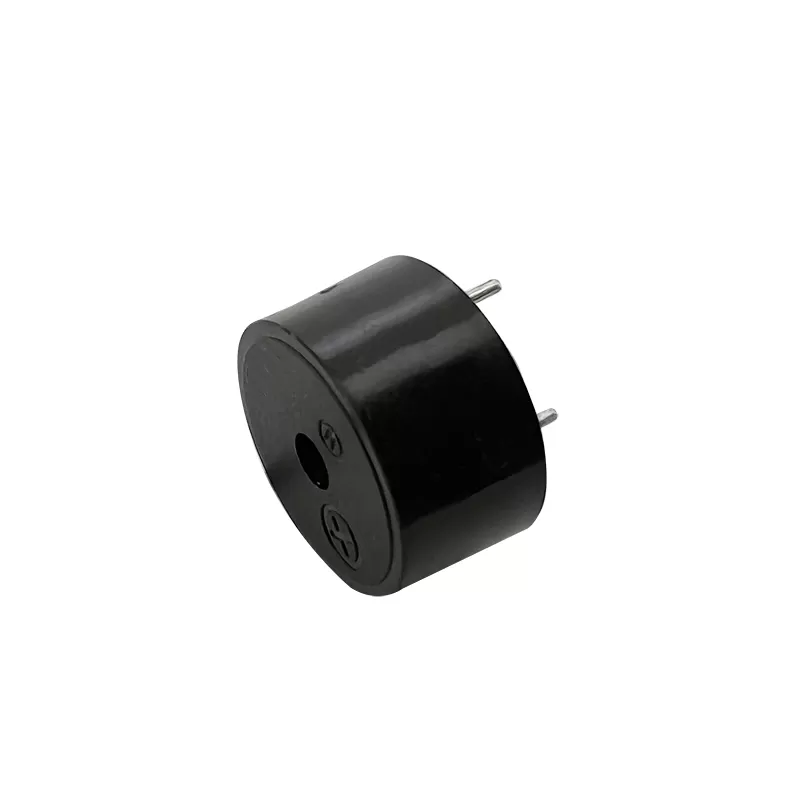

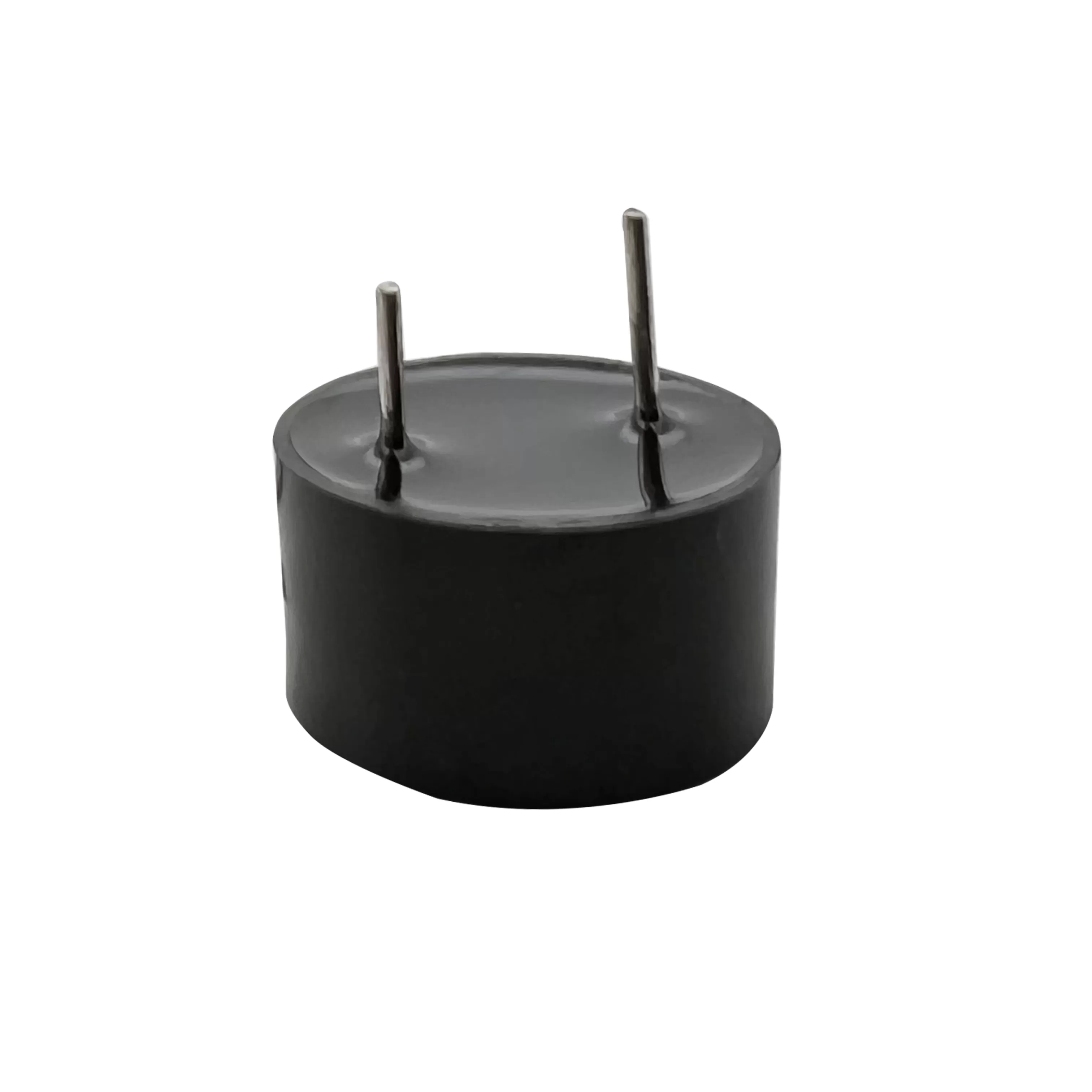

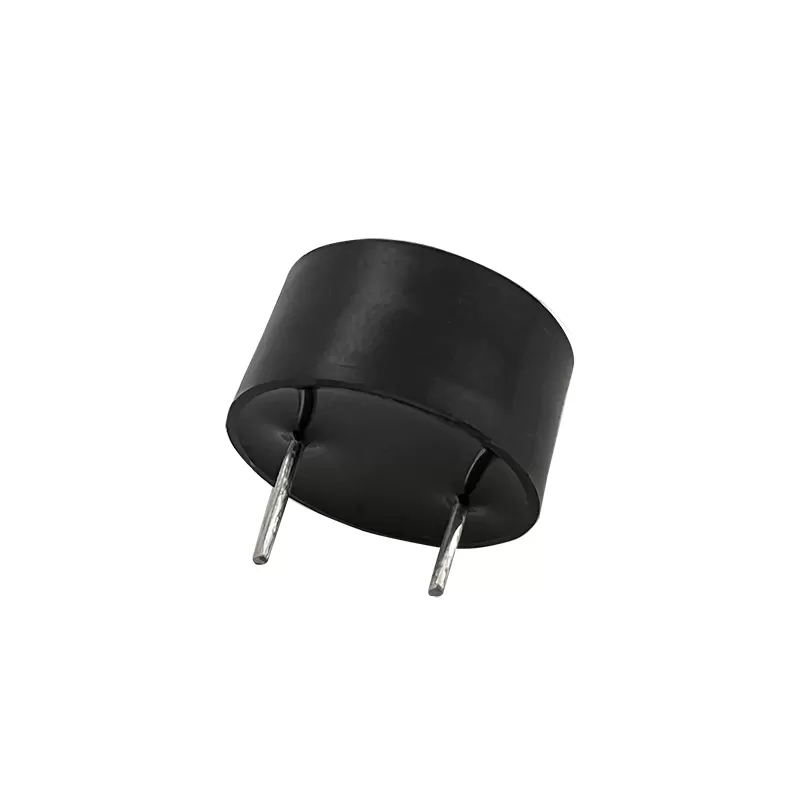

Magnetic Transducer Buzzer:RHTCYT-09x5.5

Features

-Low-voltage operation: Can be driven by low voltages such as 1.5V, suitable for battery-powered devices;

-Moderate power consumption: Although operating at low voltage, it draws relatively large current, which may affect the battery life of portable devices;

-Low frequency: Resonant frequency is mostly 2-3kHz, suitable for scenarios requiring low-frequency sound signals;

-Good sound pressure level: Often reaches over 85dB at 10cm, applicable for alarms, prompts, etc.;

Applications

1.Consumer Electronics

2.Medical Devices

3.Industrial Equipment

4.Security Systems

Specifications

Magnetic Transducer Buzzer

Size: Ø9*5.5*4mm (Diameter*High*Pitch)

Order Code                    Operating Voltage Resonant Frequency Max.Rated Current Min.S.P.L.（@10cm） Rated  Voltage

RHTCYT-09x5.5-A 1~2V 3100Hz 80mA 80dB 1.5V

RHTCYT-09x5.5-B 2~6V 2731Hz 80mA 82dB 3V

Technical Documents

Please contact us for more information.
