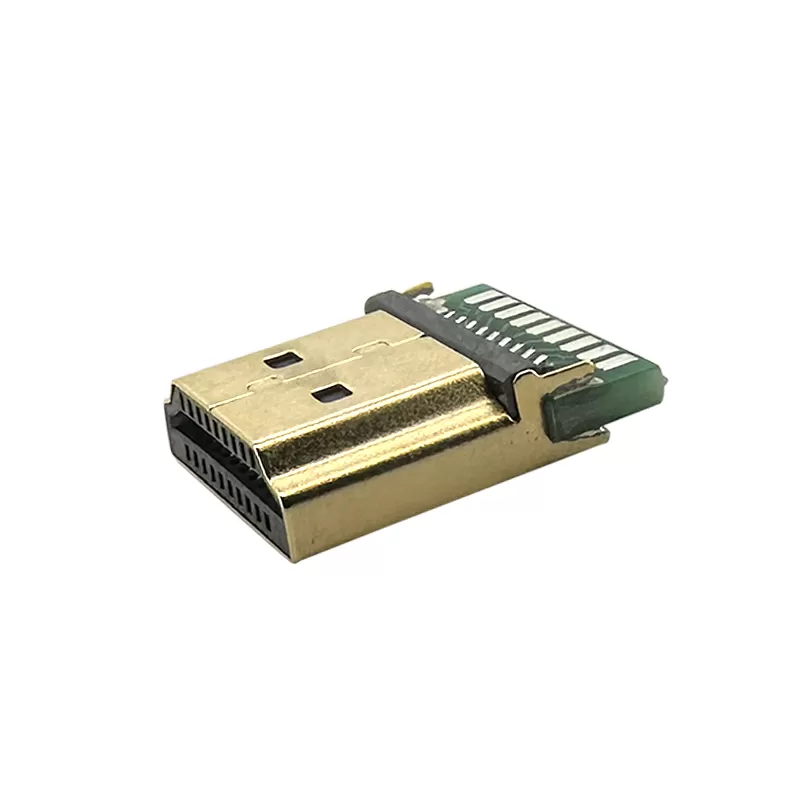

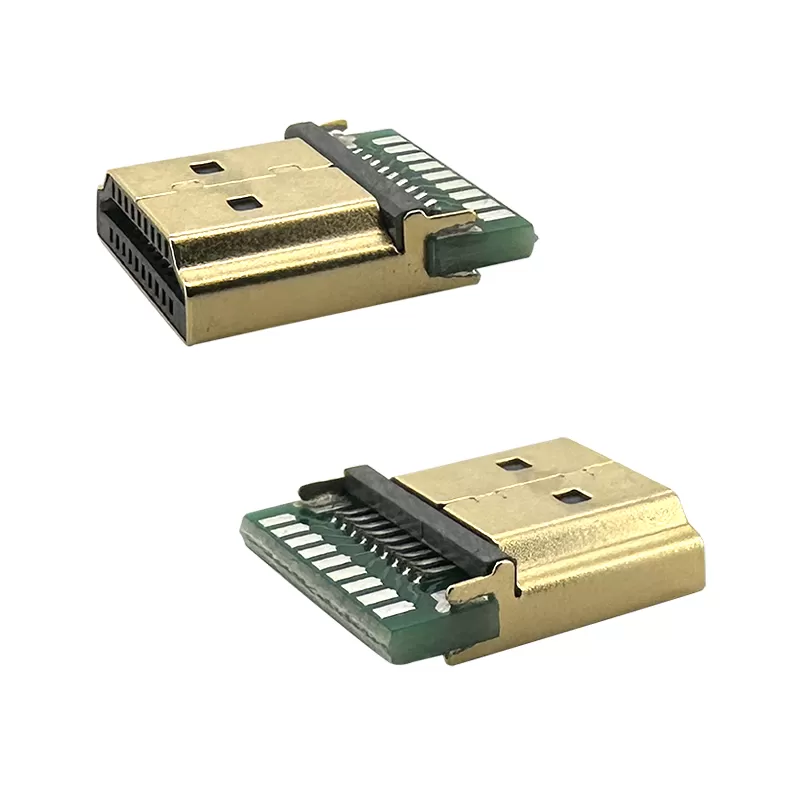

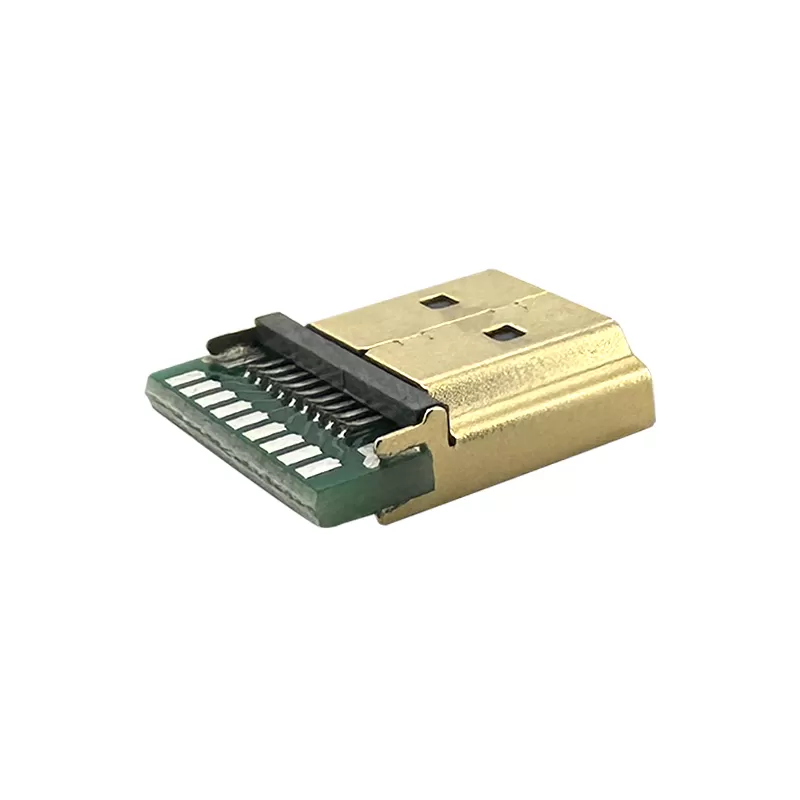

HDMI A male,PCB board wire solder type :RHTAY-006

Series P/N:RHTAY-006

RHT provides a wide selection of DVI Connectors and HDMI Connectors, supporting reliable digital audio and video transmission for computers, monitors, display devices, and multimedia systems.

With various connector types, mounting options, interface configurations, and structural designs, our products can meet different PCB layouts, installation requirements, and connectivity needs.

As a connector solutions partner, RHT works closely with engineering teams to understand technical requirements, discuss application needs, and provide suitable DVI and HDMI connector solutions from sample evaluation and design verification to product integration and project implementation.

2D(PDF)Drawing

3D(IGS / STP)Drawing

Product parameter:

Features

-Standard HDMI A Connector: The HDMI A Male connector is the most common type of HDMI connector used in consumer electronics, offering a 19-pin configuration for transmitting high-definition video and audio signals.

-Custom and Prototype Use: The solderable design is commonly used in custom electronics projects, prototyping, or manufacturing where a permanent, stable connection is required without the need for additional connectors or cables.

-Space-Efficient: This type of connector is designed to save space on the PCB, as it eliminates the need for bulky, external cables or connectors. The compact nature is especially beneficial in devices with limited space or tight design constraints.

-Flexible Placement on PCB: The connector can be placed in various positions on the PCB, depending on the layout and requirements of the device.

Applications

1.Automotive Electronics

2.Medical Devices

3.Test and Measurement Equipment

4.Prototyping and R&D

Specifications

HDMI A male,PCB board wire solder type

Material:

Insulator: ABS UL94V-0

Contacts:brass
