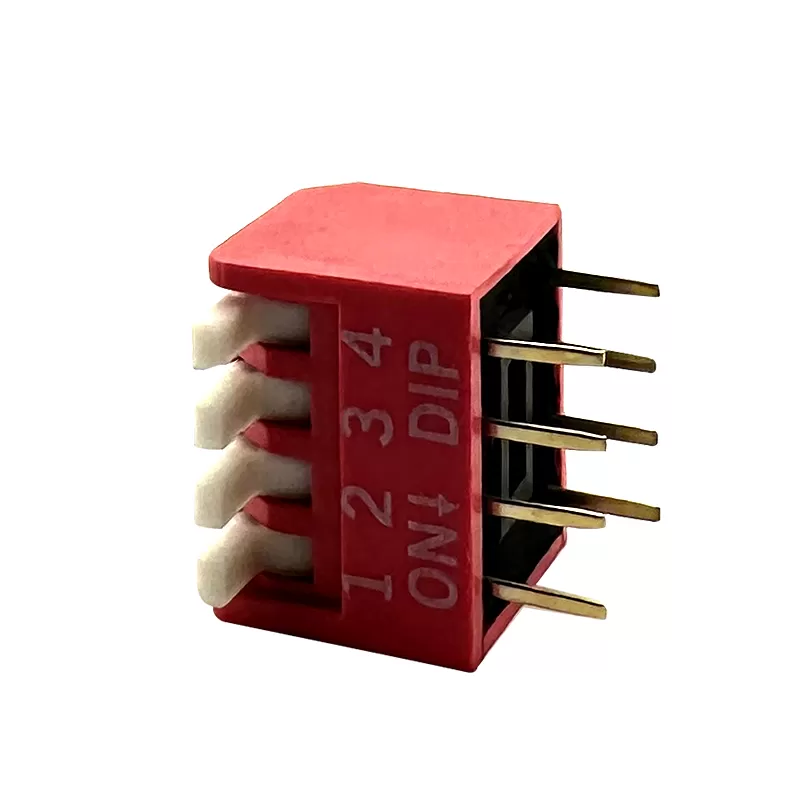

    New Piano Type Through hole :RHTGYP

    Series P/N:RHTGYP

    RHT provides a wide selection of DIP Switches, supporting reliable circuit configuration and signal control for industrial control systems, communication equipment, consumer electronics, and various electronic devices.

    With various switch positions, circuit configurations, actuator types, mounting styles, and pitch options, our products meet different circuit setting requirements, PCB layouts, and electronic equipment integration needs.

    RHT works closely with engineering teams to provide suitable DIP Switch solutions, from sample evaluation and specification confirmation to design verification, product integration, and technical support.


    Inquire Now
    Share
    Product parameter:

    Features

    -Voltage Rating: Typically 12V to 24V DC (varies by model).

    -Current Rating: Usually 25mA to 100mA.

    -Dielectric Strength: Withstands high voltage without breakdown.

    -Housing Material: High-temperature plastic (PBT, PA6T) for heat resistance.


    Applications

    1.Embedded Systems & Microcontrollers

    2.Industrial Automation & Control Systems

    3.Networking & Communication Devices

    4.Consumer Electronics


    Specifications

    Order Information

    RHTGYP-02-N-00

    VP:      New Piano Type Through hole

    02:      Number of Pos.     2\3\4\5\6\8\10 Pos.

    N:        Color Code:    N-Black

    0:        0- Non-Sealed

    0:        Packing Code      0- Tube Packing

    Contact Rating:                25 mA at 24VDC(switching)

                                                100 mA at 50VDC(steady state)

    Life:                                    1,000 cycles

    Contact Resistance:        100mΩ Max.

    Insulation Resistance:     100MΩ at 100VDC Min

    Dielectric Strength:          300VAC Min

    Storage Tempeeature:     -40°C ~ 85°C

    Operating Tempeeature:  -25°C ~ 70°C.

    Operation Force  :              9.8N Max.

    Materials

    Base & Cover:   PPS (UL94V-0)

    Actuator:            PA46 (UL94V-0).

    Contacts:           Brass, Gold /Tin Plate

    Terminals:          Brass, Gold /Tin Plate
