    2.54mm Pitch Ejector header connectors :RHTAY01X

    Series P/N:RHTAY01X

    RHT provides a wide selection of Box Header Connectors and Ejector Header Connectors, helping engineers develop reliable and efficient PCB connection solutions.

    With various pitches, pin counts, mounting options, and material choices, our connectors can meet different design requirements and application challenges.

    As a connector solutions partner, RHT’s sales engineers work closely with design teams to understand technical requirements, discuss development needs, and provide suitable solutions from sample evaluation and prototype validation to project development and mass production.


    Inquire Now
    Share
    Product parameter:

    Features

    -Ejector Mechanism: The ejector latch or lever provides additional mechanical stability, making these connectors suitable for applications where vibration or movement is a concern.

      Mating Force: Designed to provide a secure and stable connection with appropriate mating force, ensuring reliable performance in demanding environments.

    -Through-Hole Mounting: Typically designed for through-hole mounting on PCBs, providing a strong and reliable mechanical connection. This mounting style is suitable for applications where robust   PCB attachment is required.Surface Mount Technology (SMT): Some ejector headers are available with surface mount terminations, enabling automated assembly processes and compatibility with   SMT PCB designs.

    -Thermoplastic Housing: Made from materials like PBT (Polybutylene Terephthalate) or Nylon, providing mechanical strength, heat resistance, and resistance to environmental factors.

    -Polarization Features: Some ejector connectors may include polarization features or keying options to ensure proper alignment during mating, preventing incorrect connections that could damage     components or affect performance.


    Applications

    1.Networking and Communication Devices

    2.Consumer Electronics

    3.Automotive Electronics

    4.Medical Devices and Instrumentation


    Specifications

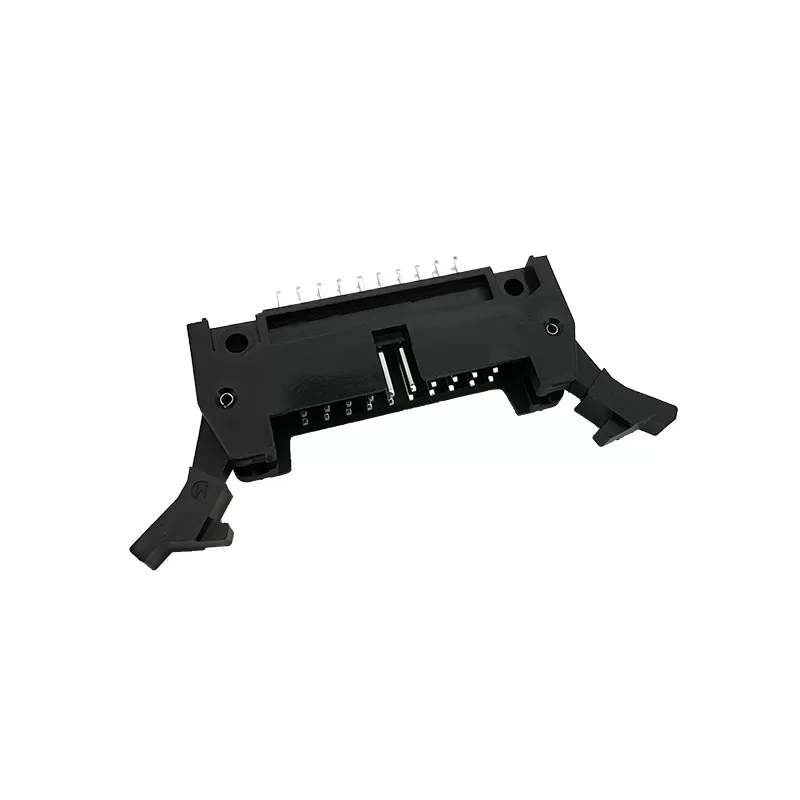

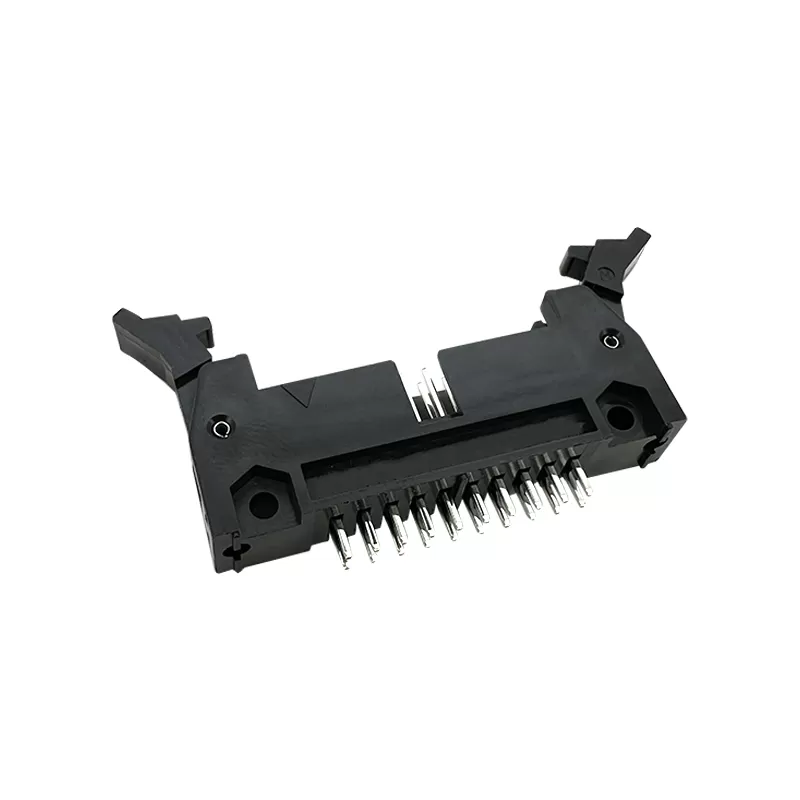

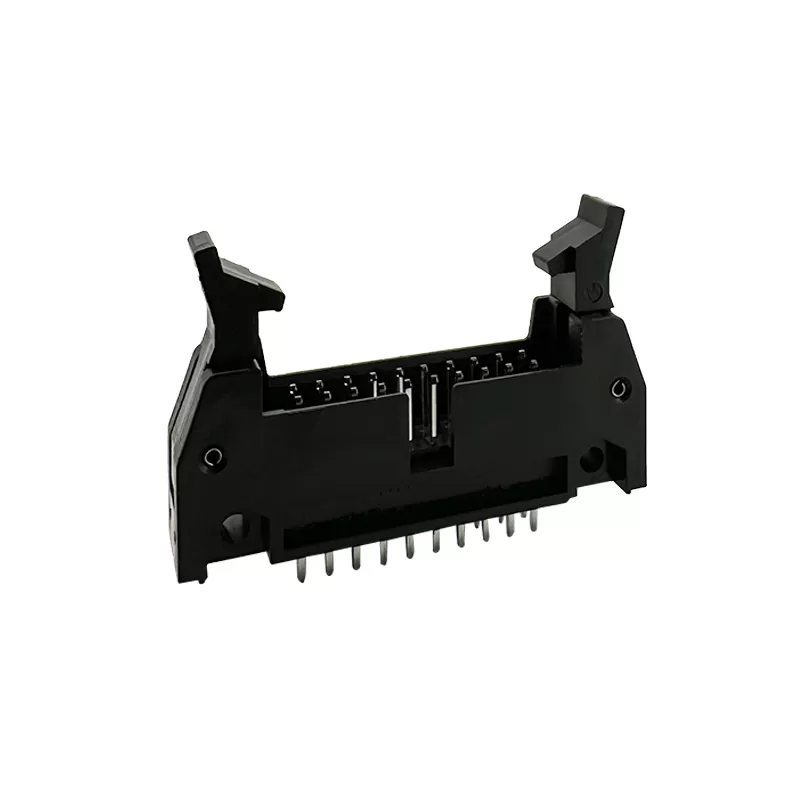

    2.54mm Pitch Box Header Connector With Latch

    Order Information:

    RHTAY01X-XX-S-B-口-口

    XX-No.of 06~64 pin

    S-Straight pin  R-Right Angle Pin  T-SMT Pin

    Color: B=Black  G=Gray

    None=Long latch  S=Short latch

    Material:NONE=PBT  B=PA6T

    Material:

    Housing: PBT UL94V-0, Black

    Contacts: Brass

    Plating:Gold 1u" over 50u" nickel

    Electrical Characteristics:

    Current Rating: 3.0 AMP

    Insulator Resistance: 1000M Ohm min.

    Withstand Voltage: 1000V AC/DC

    Contact Resistance: 20m Ohm max.

    Operating Temperature: -45ºC~+105ºC


    Technical Documents

    Please contact us for more information.
