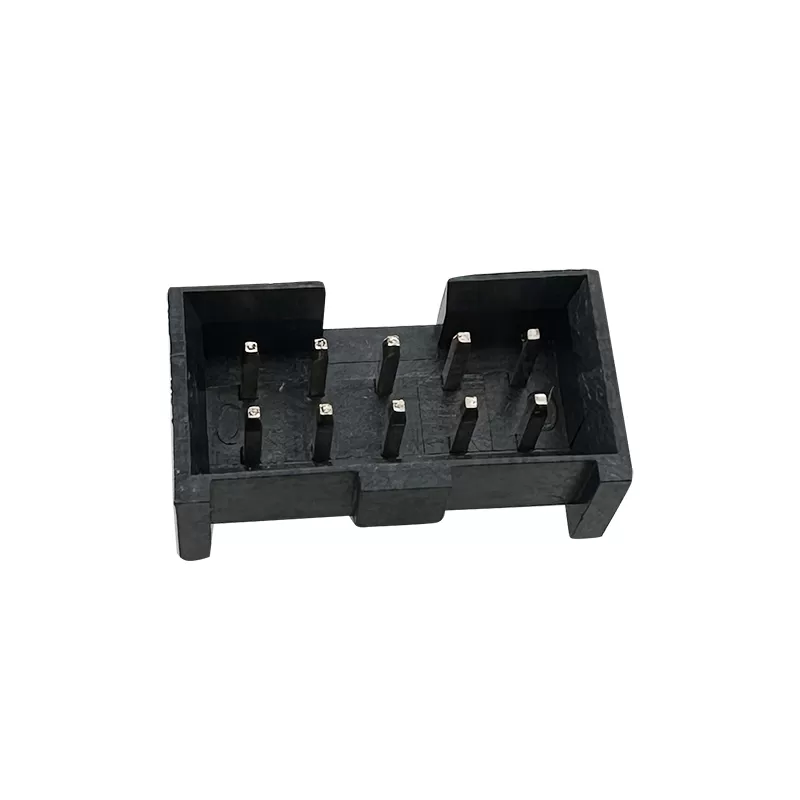

2.0mm Pitch Box Header Connector Height 4.8mm:RHTAY02J
RHT provides a wide selection of Box Header Connectors and Ejector Header Connectors, helping engineers develop reliable and efficient PCB connection solutions.
With various pitches, pin counts, mounting options, and material choices, our connectors can meet different design requirements and application challenges.
As a connector solutions partner, RHT’s sales engineers work closely with design teams to understand technical requirements, discuss development needs, and provide suitable solutions from sample evaluation and prototype validation to project development and mass production.
Features
-Current Rating: Typically 1A to 2A per pin (varies by manufacturer)
-Height: 4.8mm (Low-profile design for space-saving applications)
-Contact Material: Usually phosphor bronze or copper alloy
-Consumer Electronics: Used in laptops, cameras, and portable devices
Applications
1.Consumer Electronics
2.Industrial & Automation Equipment
3.Automotive Electronics
4.Telecommunications & Networking
Specifications
2.0mm Pitch Box Header Connector Height 4.8mm
Order Information
RHTAY02J-XX-S-B-C
XX-No.of 06~64pin
S-Straight pin R-Right Angle Pin T-SMT Pin
B-Black G-Gray L-Blue
Material:B=PA6T C=LCP
Material:
Housing: PA6T UL94V-0
Contacts: Brass
Plating:Gold 1u" over 50u" nickel
Electrical Characteristics:
Current Rating: 2.0 AMP
Contact Resistance: 20m Ohm max.
Insulator Resistance: 1000M Ohm min.
Withstand voltage:500V AC/DC
Operating Temperature: -45ºC~+105ºC
Technical Documents
Please contact us for more information
