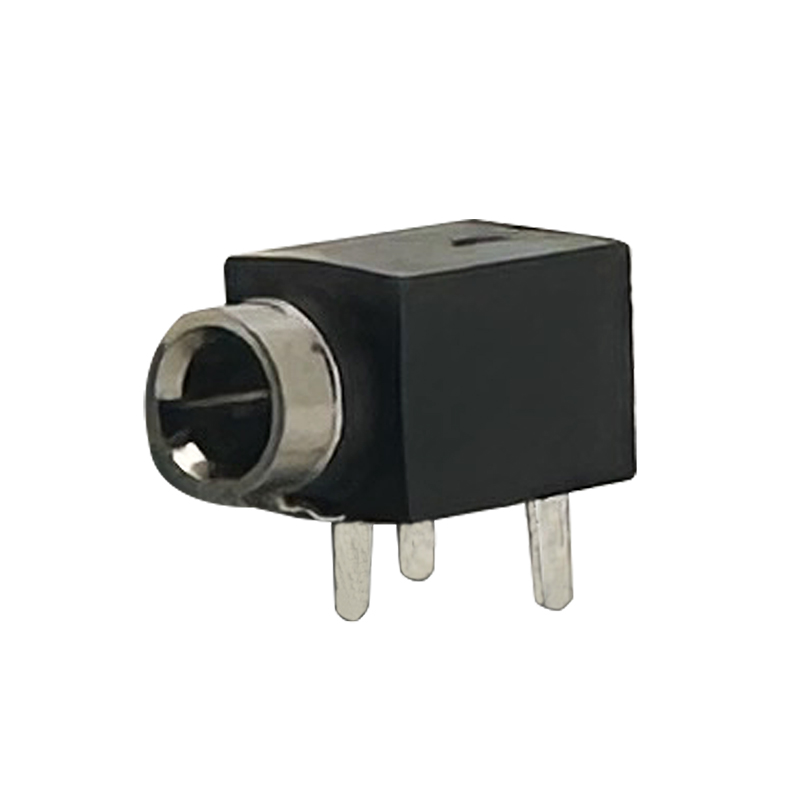

2.5mm Mono Jack For PCB Mount ：RHTAYG2.5-006A

Series P/N:RHTAYG2.5-006A

RHT provides a wide selection of 2.5mm Phone Jack Audio Connectors, supporting reliable audio signal connections for electronic devices, audio equipment, communication systems, and multimedia applications.

With various connector types, mounting options, contact configurations, and structural designs, our products can meet different PCB layouts, installation requirements, and audio connection needs.

As a connector solutions partner, RHT works closely with engineering teams to understand technical requirements, discuss application needs, and provide suitable 2.5mm audio connector solutions from sample evaluation and design verification to product integration and project implementation.

2D(PDF)Drawing

3D(IGS / STP)Drawing

Product parameter:

Features

-Connector Type:Specifically designed for mono audio signals, suitable for connecting mono audio devices such as microphones, headphones, or other audio equipment.

-PCB Mount:Designed with solder pins or terminals for direct mounting onto a PCB, facilitating secure and stable integration into electronic circuits and audio equipment designs.

-Size and Dimensions:Compact size suitable for PCB integration, ensuring compatibility with standard PCB layouts and design constraints.

-Durability:Constructed from durable materials such as metal or high-quality plastic, ensuring robustness and longevity in various environmental conditions and applications.

Applications

1.Automotive Electronics

2.Consumer Electronics

3.Medical Devices

4.Industrial Equipment

Specifications

Technical parameters:

Rated voltage: DC 30 V

Rated current: 0.5 A

Contact resistance: 0.03Ω, max

Insulation resistance: 100MΩ, min

Pressure: AC500V (50Hz) / 1minute
