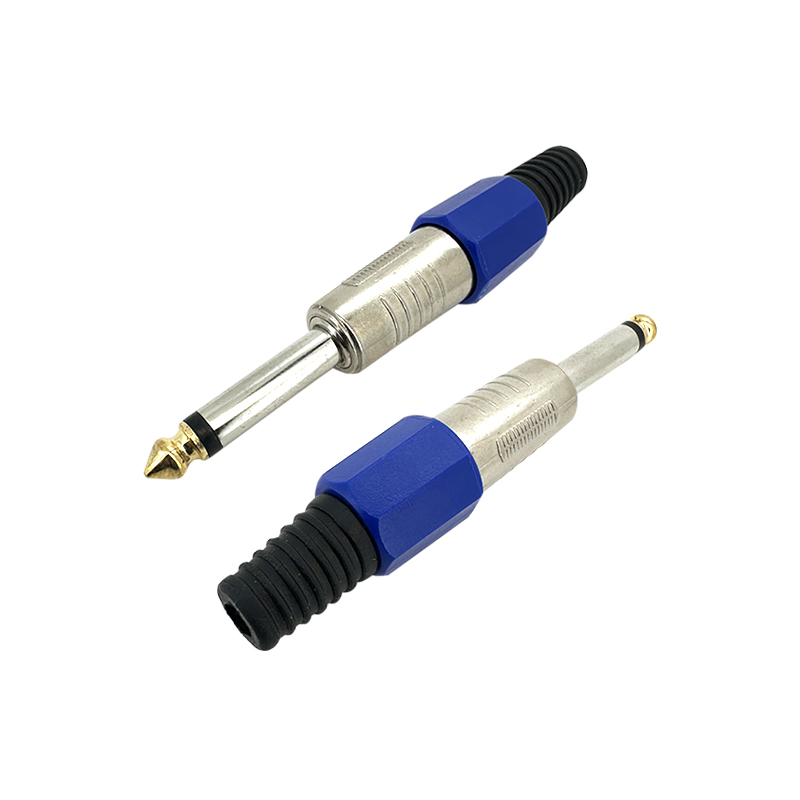

6.3mm Mono Plug：RHTAYLG-008

Series P/N: RHTAYLG-008

RHT provides a wide selection of Phone Plug Audio Connectors, supporting reliable audio connections for headphones, microphones, audio equipment, multimedia devices, and communication systems.

With various plug types, sizes, contact arrangements, and structural designs, our products meet different audio connection requirements, installation conditions, and equipment integration needs.

RHT works closely with engineering teams to understand technical requirements and provide suitable Phone Plug Audio Connector solutions, from sample evaluation and specification confirmation to product integration.

3D(IGS / STP)Drawing

Product parameter:

Features

-Connector Size: The plug diameter is 6.3mm (1/4 inch), which is standard for mono audio connectors. This size is widely used in musical instruments, amplifiers, and audio devices.

-Configuration: It is a TS (Tip-Sleeve) plug, meaning it has two conductors: a tip (signal) and a sleeve (ground). This configuration is suitable for mono audio signals where only one channel of audio is transmitted.

-Material: Typically made of metal, such as nickel-plated brass or copper, to provide good conductivity and durability. The sleeve is usually insulated to prevent short circuits.

-Compatibility: Compatible with 6.3mm (1/4 inch) mono jacks found on amplifiers, mixers, and audio interfaces. It provides a stable connection for transmitting audio signals without interference.

Applications

1.Musical Instruments

2.Amplifiers and Audio Interfaces

3.Audio Equipment Connections

4.Patch Panels and Patch Bays

Specifications

6.3mm Mono Plug

Ordering information :

RHT Part No. Description

RHTAYLG-008-6.3A-N-B 6.3mm Mono Plug / Nickel-plated / Black color

RHTAYLG-008-6.3A-N-L 6.3mm Mono Plug / Nickel-plated / Blue color

RHTAYLG-008-6.3A-N-R 6.3mm Mono Plug / Nickel-plated / Red color
