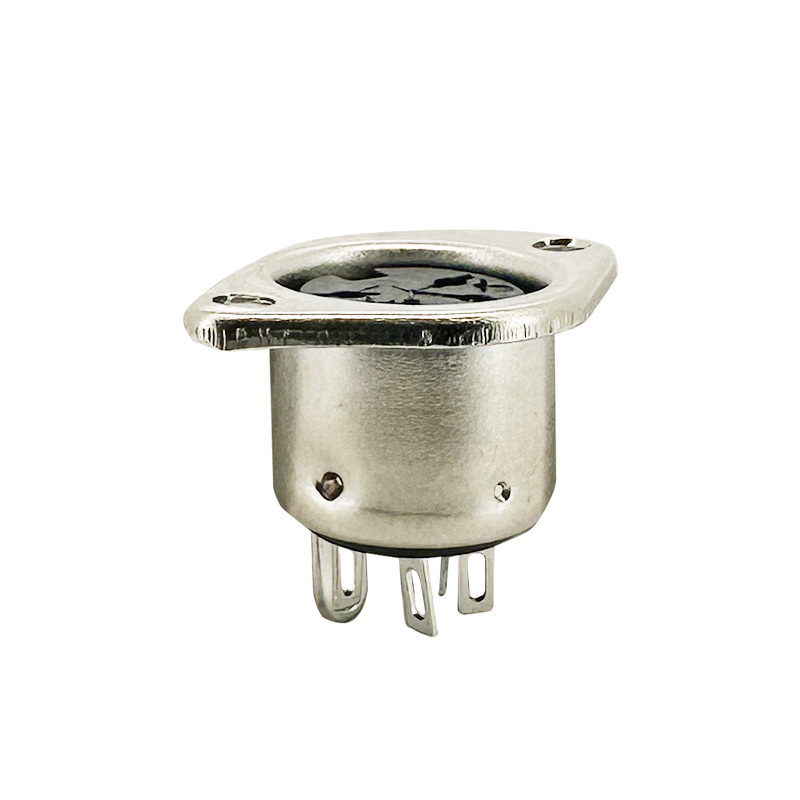

Connector RCPT Female DIN Solder：RHTAY57A

Series P/N:RHTAY57A

RHT provides a wide selection of Mini DIN Connectors and DIN Connectors, supporting reliable electrical connections for electronic equipment, computer peripherals, communication devices, industrial controls, and audio-visual systems.

With various connector types, pin configurations, mounting styles, and structural designs, our products meet different wiring layouts, installation requirements, and equipment integration needs.

RHT works closely with engineering teams to understand technical requirements and provide suitable Mini DIN and DIN Connector solutions, from sample evaluation and design verification to product integration and implementation.

2D(PDF)Drawing

3D(IGS / STP)Drawing

Product parameter:

Features

-Versatility: DIN connectors are widely used in industrial, audio, and video equipment, ensuring interoperability between different devices and systems.

-Receptacle Design: As a female connector, it is designed to accept male connectors or plugs, which ensures secure and reliable connections.

-Multiple Pin Configurations: These connectors typically come in a variety of pin configurations, ranging from 3 to 13 pins, making them suitable for various types of applications.

-Solder Connection: The connector is designed for soldering, which means that each pin or terminal can be soldered directly to the corresponding wire or PCB pad for a secure electrical connection.

Applications

1.Audio Equipment

2.Industrial Control Systems

3.Consumer Electronics

4.Computers and Communication Equipment

Specifications

MATERAL

Insulator: PBT UL94V-0

Shell: SPCC,Nickel Plated

Contact: Brass,Tin plated

Technical Documents

Please contact us for more information.
