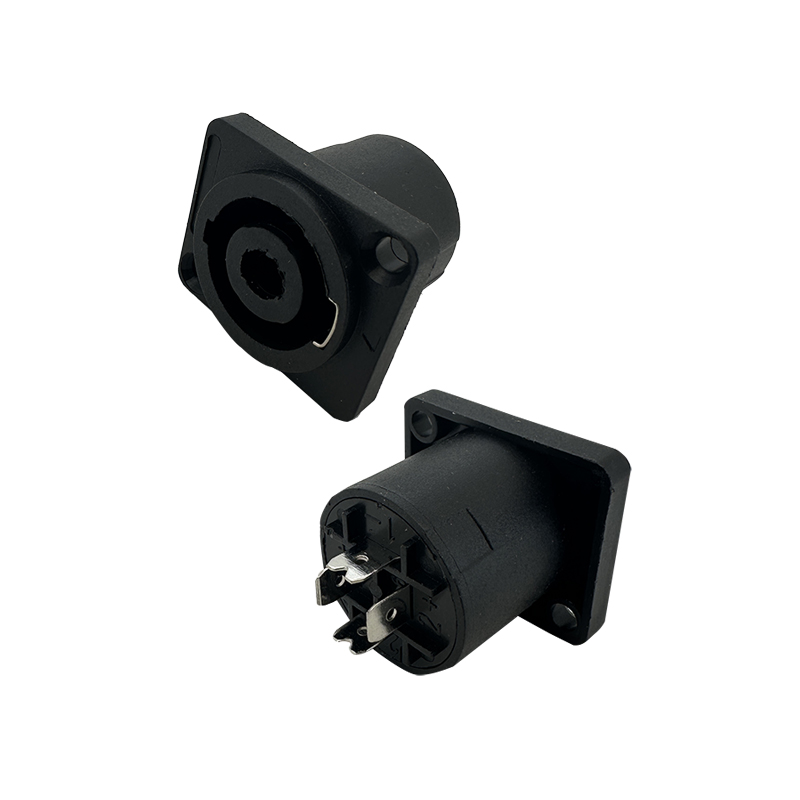

Speaker Connector 4 Pole:RHTAYL-4P-09

Series P/N: RHTAYL-4P-09

RHT provides a wide selection of Loudspeaker Connectors, supporting reliable audio connections for loudspeakers, audio amplifiers, home theater systems, professional audio equipment, and sound reinforcement systems.

With various connector types, terminal configurations, mounting options, and structural designs, our products meet different speaker wiring requirements, connection methods, installation conditions, and audio equipment integration needs.

RHT works closely with engineering teams to understand technical requirements and provide suitable Loudspeaker Connector solutions, supporting applications from sample evaluation and design verification to product integration and implementation.

3D(IGS / STP)Drawing

Product parameter:

Features

-Pole Configuration: The 4 poles refer to the number of conductors or contacts within the connector. These poles typically include two positive (+) terminals (for bi-amping or dual voice coil configurations), one negative (-) terminal, and one ground/shield connection.

-Secure Locking Mechanism: Speakon connectors are known for their secure locking mechanism, which ensures a reliable and robust connection. This feature is essential in live sound environments where vibrations and movement could otherwise cause traditional connectors to disconnect.

-High Current Capacity: Designed to handle high current and power levels, 4-pole Speakon connectors are suitable for use with powerful amplifiers and speakers, making them ideal for professional audio applications such as concerts, events, and installations.

-Durable Construction: Constructed from durable materials such as high-impact plastic and metal (for the contacts), Speakon connectors are built to withstand frequent use and rough handling common in live sound settings.

Applications

1.Theater and Auditorium Installations

2.DJ Equipment

3.Bi-Amping and Dual Voice Coil Applications

4.Subwoofer Systems

Specifications

Speaker Connector 4 Pole

How to order Example:

RHTAYL-4P-09-S

4P=4 Pole

09=09 Type

S=Socket
