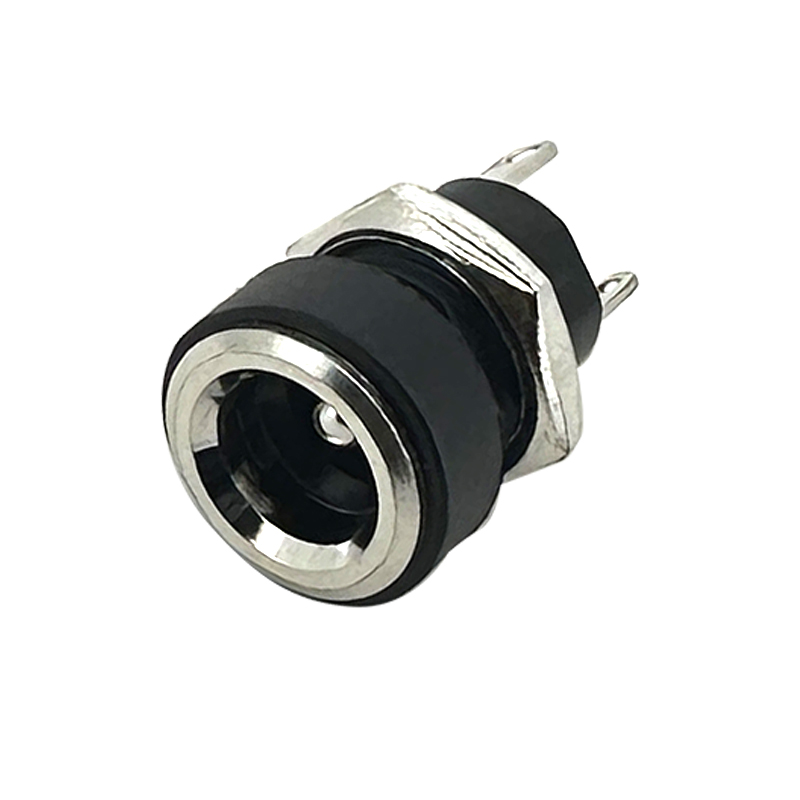

DC Power Socket ：RHTAYC-027
RHT provides a wide selection of DIP DC Power Connectors, supporting reliable power connections for consumer electronics, communication devices, industrial equipment, power supply systems, and electronic control devices.
With various mounting styles, pin configurations, terminal designs, and structural options, our products meet different PCB layouts, through-hole mounting requirements, soldering conditions, and equipment integration needs.
RHT works closely with engineering teams to understand technical requirements and provide suitable DIP DC Power Connector solutions, supporting applications from sample evaluation and design verification to product integration and implementation.
Features
-Current Rating: Usually between 0.5A to 10A.
-Contact Resistance: Low resistance for efficient power transfer.
-Barrel Size: Available in different sizes (e.g., 2.1mm, 2.5mm inner diameter).
-Housing Material: Plastic or metal for insulation and durability.
Applications
1.Consumer Electronics
2.Industrial & Embedded Systems
3.Automotive & Transportation
4.IoT & DIY Electronics
Specifications
Rated Load: DC 30V 0.5A
Contact resistance: 30mΩ, max
Insulation resistance: 100MΩ, min
Withstand Voltage: AC500V
Actuating Force: 3~20N
Life: 5000 cycles
Operating Temperature: -30ºC ~ 70ºC
Technical Documents
Please contact us for more information.
