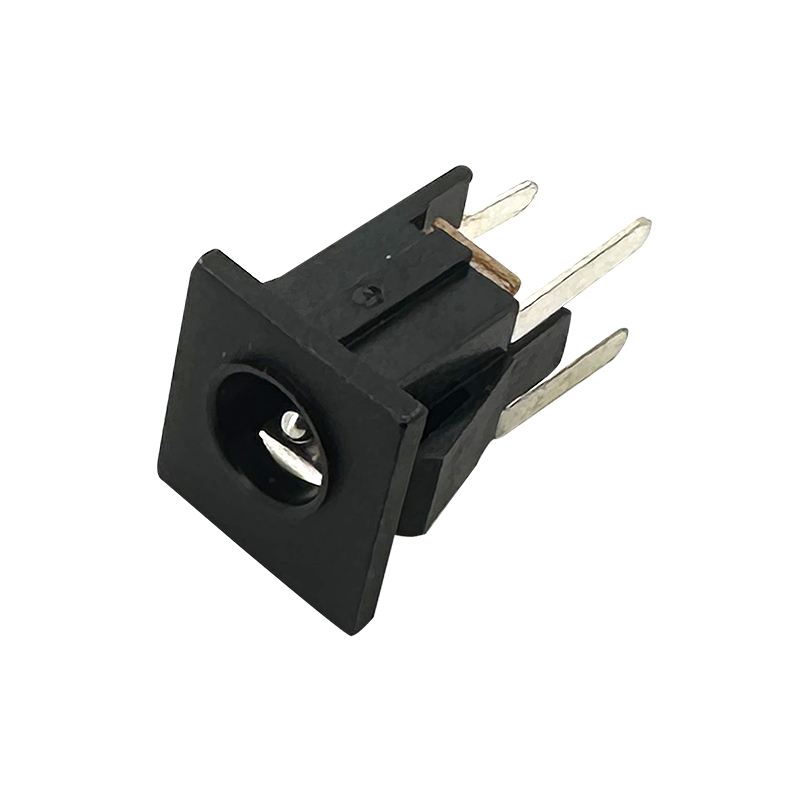

DC Power Jack ：RHTAYC-006

Series P/N:RHTAYC-006

RHT provides a wide selection of DIP DC Power Connectors, supporting reliable power connections for consumer electronics, communication devices, industrial equipment, power supply systems, and electronic control devices.

With various mounting styles, pin configurations, terminal designs, and structural options, our products meet different PCB layouts, through-hole mounting requirements, soldering conditions, and equipment integration needs.

RHT works closely with engineering teams to understand technical requirements and provide suitable DIP DC Power Connector solutions, supporting applications from sample evaluation and design verification to product integration and implementation.

2D(PDF)Drawing

3D(IGS / STP)Drawing

Product parameter:

Features

-It serves as a standardized connection for DC power supply adapters, allowing devices to easily receive power from external sources.

-Many DC power jacks are polarized, meaning they have a distinct positive (+) and negative (-) terminal to ensure proper power flow.

-DC power jacks are designed to handle specific current ratings, which typically range from 1A to 5A or more, depending on the requirements of the device.

-The current rating determines how much electrical current the jack can safely carry without overheating or damaging the component.

Applications

1.Networking and Communication Devices

2.Embedded Systems and Development Boards

3.Industrial Equipment

4.Audio and Video Equipment

Specifications

Rated Load: DC 30V 1.0A

Contact resistance: 30mΩ, max

Insulation resistance: 100MΩ, min

Withstand Voltage: AC500V

Actuating Force: 3~20N
