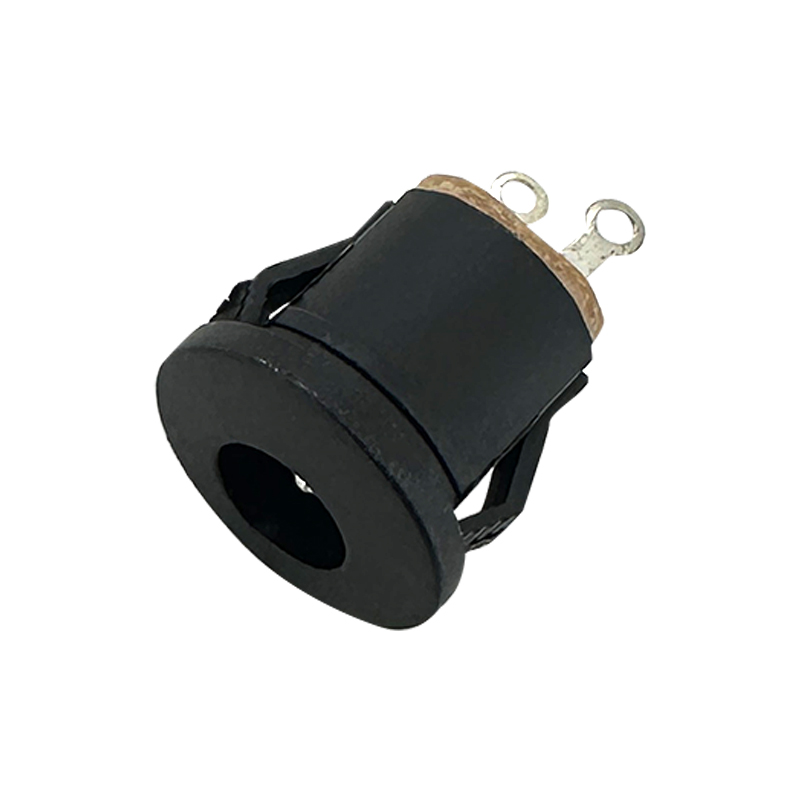

DC POWER Jack DIP：RHTAYC-035
RHT provides a wide selection of DIP DC Power Connectors, supporting reliable power connections for consumer electronics, communication devices, industrial equipment, power supply systems, and electronic control devices.
With various mounting styles, pin configurations, terminal designs, and structural options, our products meet different PCB layouts, through-hole mounting requirements, soldering conditions, and equipment integration needs.
RHT works closely with engineering teams to understand technical requirements and provide suitable DIP DC Power Connector solutions, supporting applications from sample evaluation and design verification to product integration and implementation.
Features
-DC Power Jacks typically accept a wide range of input voltages, such as 5V, 9V, 12V, or 24V, depending on the specific model.
-These jacks are made from durable materials, often with a metal sleeve for grounding and ensuring secure connection.
-The DIP form factor helps in saving space on a PCB, which is ideal for small devices and circuits.
-They can handle various current ratings, typically ranging from 1A to 5A or higher, depending on the design.
Applications
1.Consumer Electronics
2.Power Supply Systems
3.Embedded Systems and Development Boards
4.Audio Equipment
Specifications
Rated Load: DC 30V 1.0A
Contact resistance: 30mΩ, max
Insulation resistance: 100MΩ, min
Withstand Voltage: AC500V
Actuating Force: 3~20N
Life: 5000 cycles
Operating Temperature: -30ºC ~ 70ºC
Technical Documents
Please contact us for more information.
