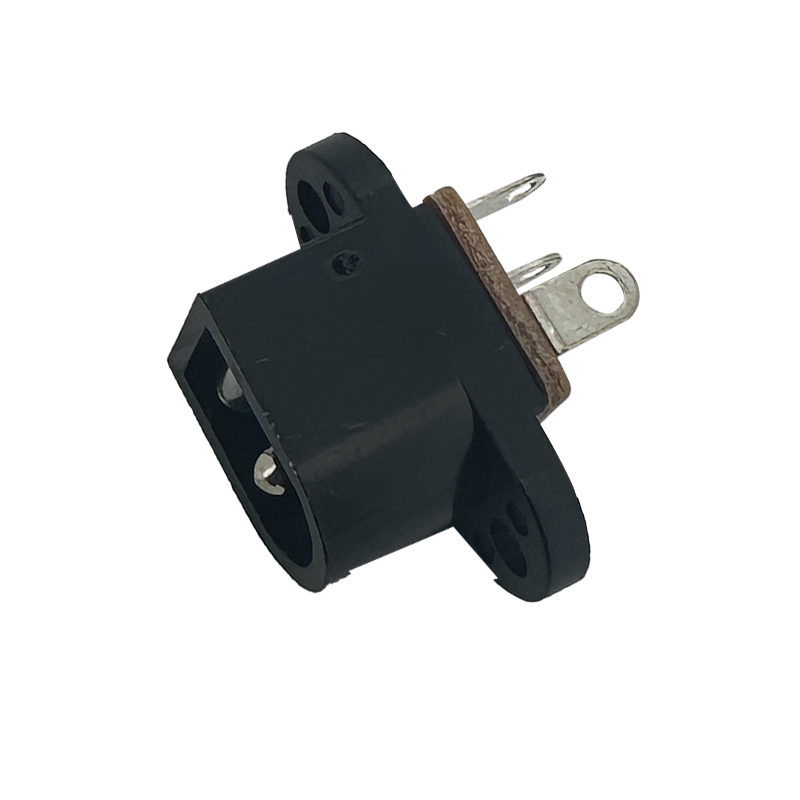

DC Power Jack Connector：RHTAYC-016

Series P/N:RHTAYC-016

RHT provides a wide selection of DIP DC Power Connectors, supporting reliable power connections for consumer electronics, communication devices, industrial equipment, power supply systems, and electronic control devices.

With various mounting styles, pin configurations, terminal designs, and structural options, our products meet different PCB layouts, through-hole mounting requirements, soldering conditions, and equipment integration needs.

RHT works closely with engineering teams to understand technical requirements and provide suitable DIP DC Power Connector solutions, supporting applications from sample evaluation and design verification to product integration and implementation.

2D(PDF)Drawing

3D(IGS / STP)Drawing

Product parameter:

Features

-Size and Shape: DC power jacks come in various sizes and shapes, but they generally consist of a cylindrical or barrel-shaped plug that fits into a corresponding socket.

-Voltage and Current Rating: They are rated for specific voltage and current capacities, which dictate the maximum power they can safely handle without overheating or failing.

-Usage: Commonly found in devices such as laptops, routers, modems, and various consumer electronics where an external power source is needed.

-Variants: There are different variants such as DC barrel jacks (with a cylindrical shape) and other proprietary connectors designed by specific manufacturers.

Applications

1.Telecommunications Equipment

2.Medical Devices

3.Gaming Consoles

4.LED Lighting

Specifications

Rated Load: DC 30V 1.0A

Contact resistance: 30mΩ, max

Insulation resistance: 100MΩ, min

Withstand Voltage: AC500V

Actuating Force: 3~20N

Life: 5000 cycles
