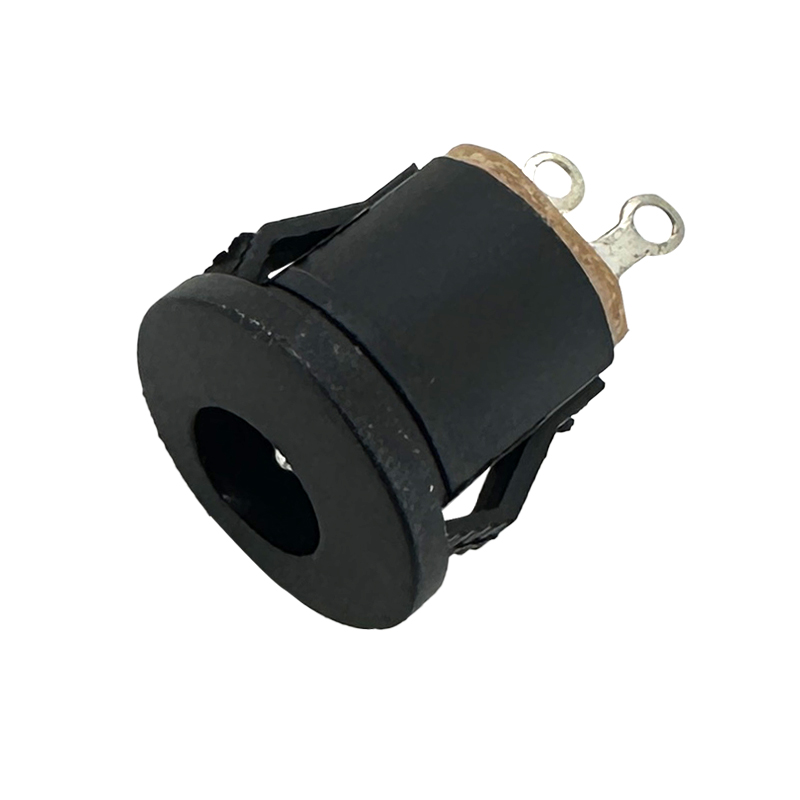

DC Power Jack Connector ：RHTAYC-022B
RHT provides a wide selection of DIP DC Power Connectors, supporting reliable power connections for consumer electronics, communication devices, industrial equipment, power supply systems, and electronic control devices.
With various mounting styles, pin configurations, terminal designs, and structural options, our products meet different PCB layouts, through-hole mounting requirements, soldering conditions, and equipment integration needs.
RHT works closely with engineering teams to understand technical requirements and provide suitable DIP DC Power Connector solutions, supporting applications from sample evaluation and design verification to product integration and implementation.
Features
-Voltage Rating: Designed to handle specific voltage levels, commonly ranging from 5V to 30V or more.
-Current Rating: Capable of supporting certain current levels, typically ranging from 1A to 5A or higher, depending on the design.
-Temperature Resistance: Built to withstand a range of temperatures, ensuring reliability in various environments.
-Ease of Use: Simple plug-and-play design allows for quick connections and disconnections.
Applications
1.Voltage Rating
2.Current Rating
3.Mounting Options
4.Shielding
Specifications
Rated Load: DC 30V 1.0A
Contact resistance: 30mΩ, max
Insulation resistance: 100MΩ, min
Withstand Voltage: AC500V
Actuating Force: 3~20N
Life: 5000 cycles
Operating Temperature: -30ºC ~ 70ºC
Technical Documents
Please contact us for more information.
